BenQ MP512 - Page 65

65

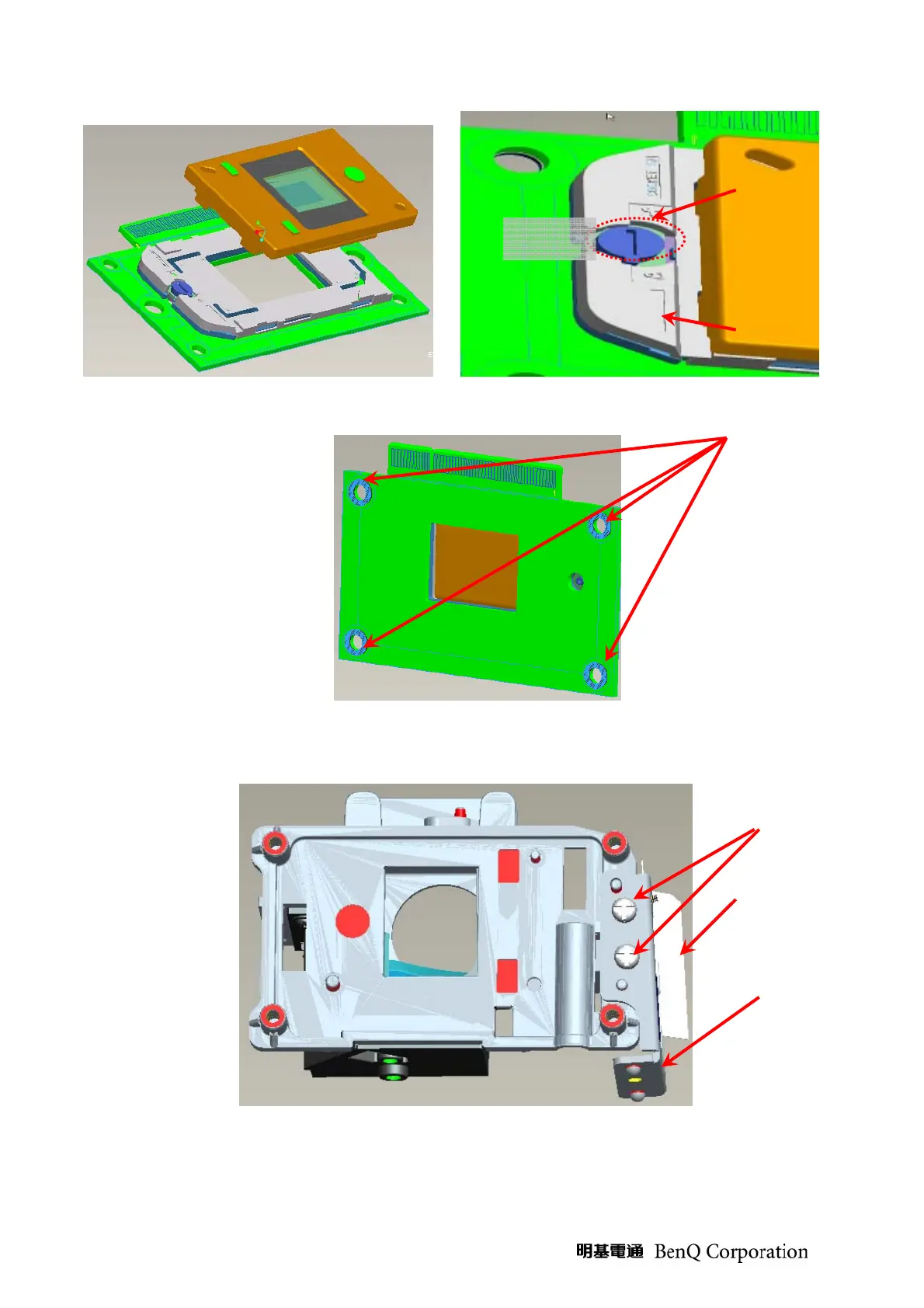

Fig. 8-3 Fig. 8-4
8.4 Place Damper on the surface of Chip-BD Fig. 8-5.
.
Fig. 8-5.
9. Assembly Optical Engine:
9.1 Assemble “BKT Link Lamp & CW shield” on “DMD HSG” and then lock with screws well (Fig.
9-1).
Fig. 9-1
Button
Close notation
Open notation
Screw
8F.1A554.4R0
Shield CW
BKT Link Lamp
Damper
