BenQ MP512 - Page 68

68

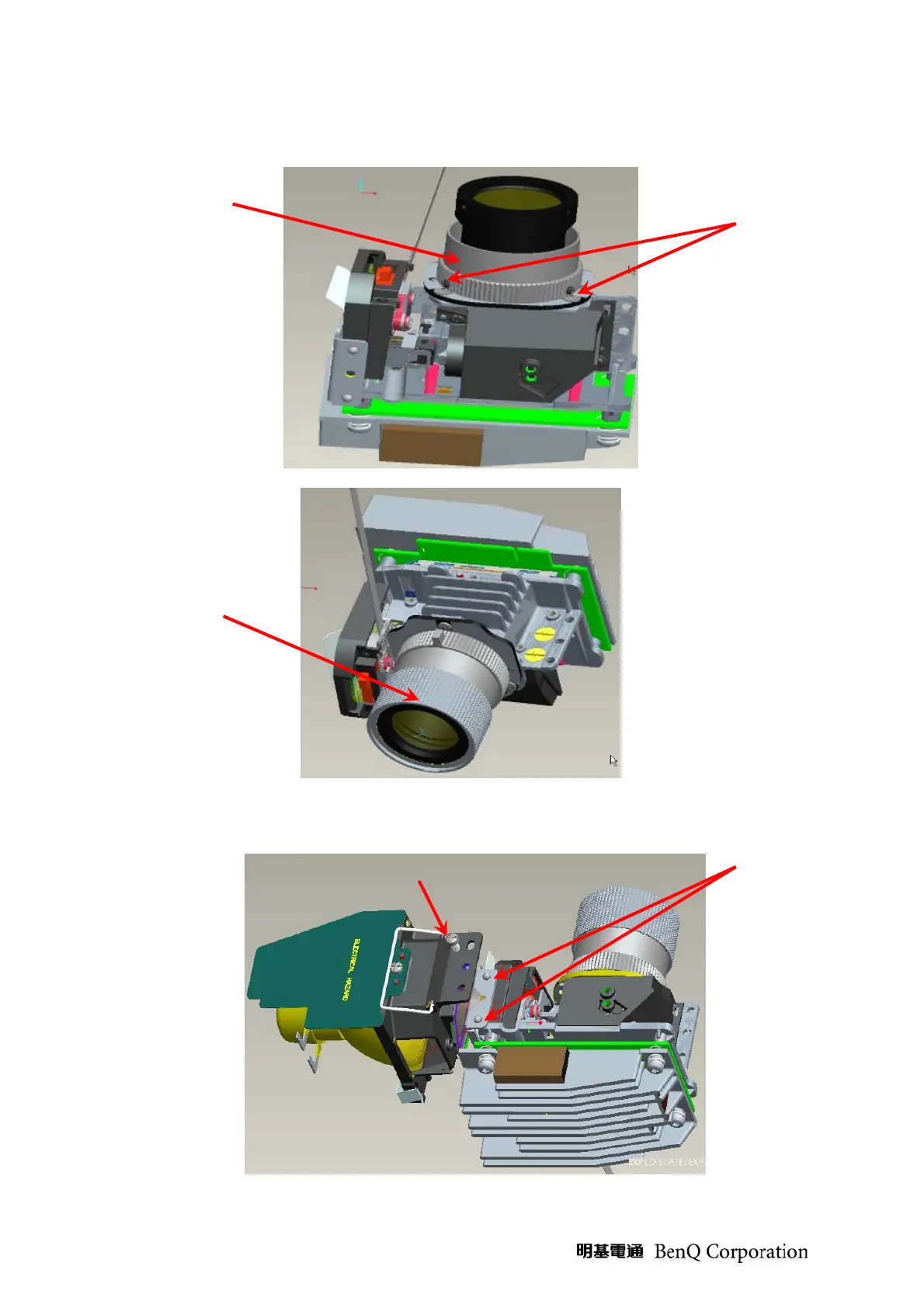

10.6 Assemble “Ring Zoom” before locking screws first, and then assemble “Ring Focus” (Fig. 10-6,
Fig. 10-7).
Fig. 10-6
Fig. 10-7
10.7 Assemble Lamp Module to “BKT Link Lamp” and then lock with screw well (Fig. 10-8, Fig.
10-9).
Fig. 10-8
8F.1A752.3R0
Ring Zoom
Ring Focus
8F.1A554.4R0
Fixed shafts
