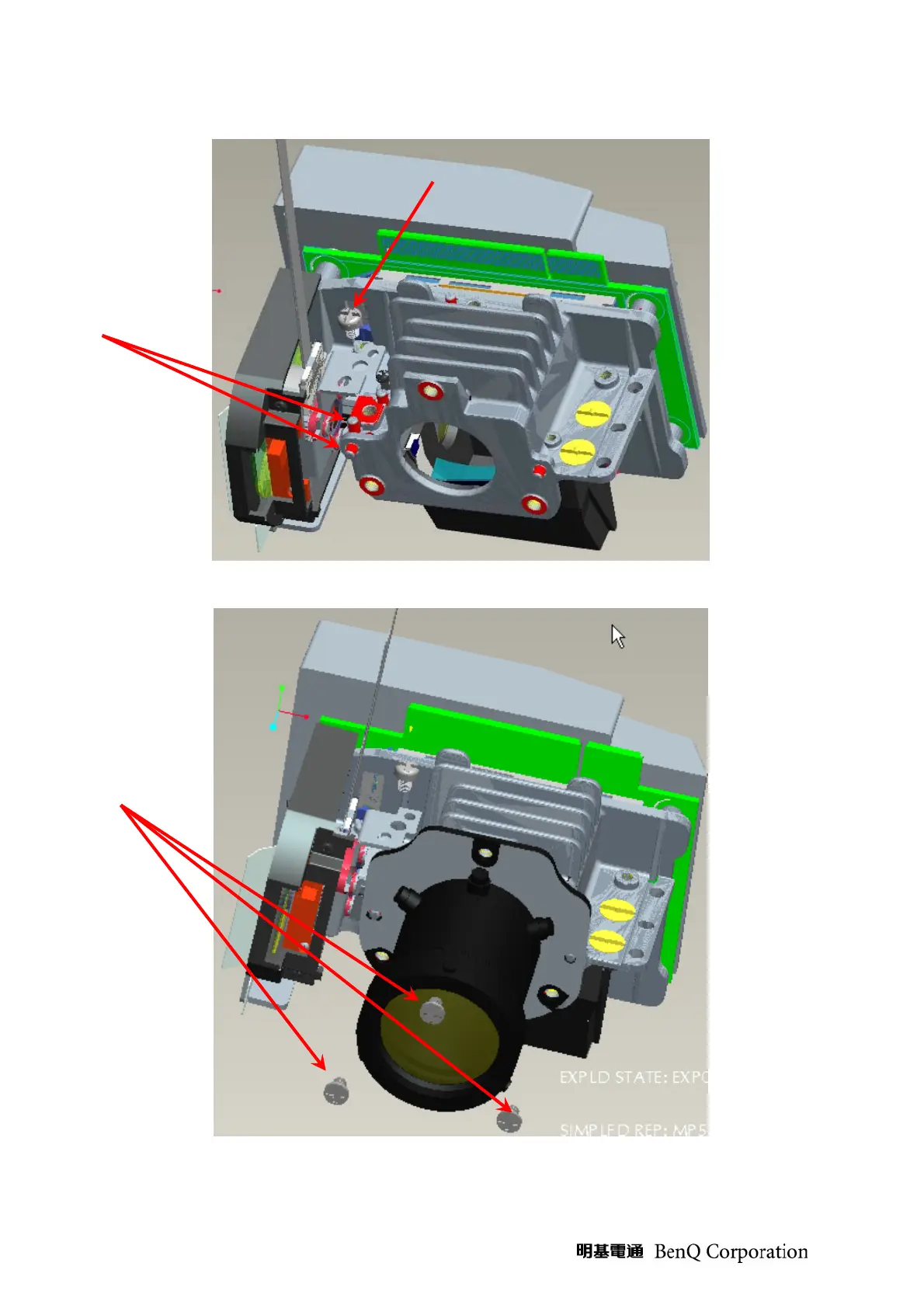

10.4 Assemble “CW Module” to “DMD HSG” and lock with screws well (Fig.10-4).
Fig.10-4
10.5 Assemble “PL Lens” and lock with screws well (Fig. 10-5).
Fig. 10-5
Fixed shafts
of DMD HSG
8F.1A554.4R0
8F.JA754.4R0
