Module Assembly Key Point - Mechanical
Mechanical Assembly Concerns
1. Lower case module assembly
2. OM module assembly
3. Lamp frame module assembly
4. Nozzle module assembly
5. Internal parts assembly
6. Rear case assembly
7. Right and Left case assembly
8. Front case assembly
9. Upper case assembly
10. Lamp module assembly
11. Lamp door assembly
1. Lower case module assembly
The lower case module assembly processes are as follows,

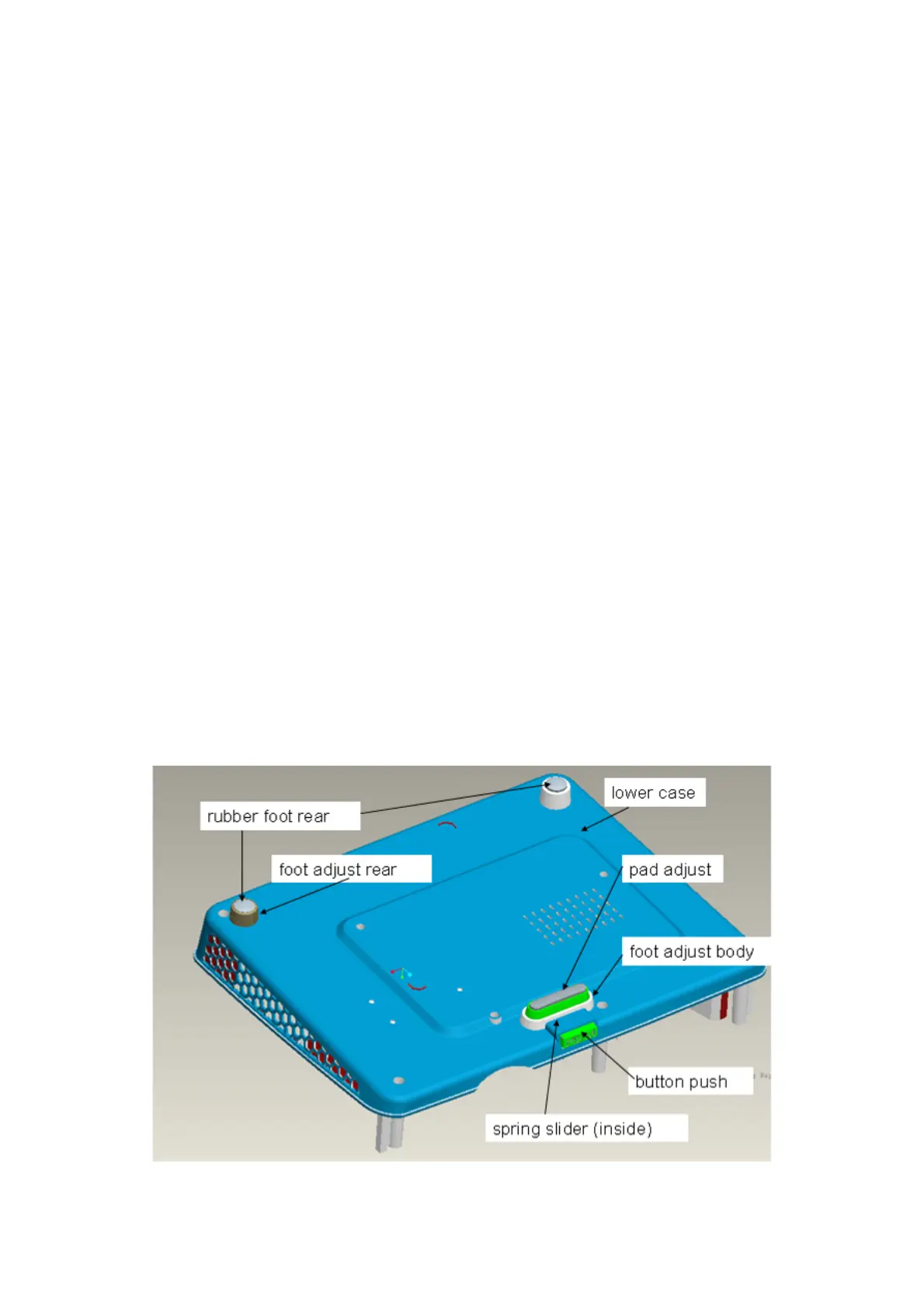

1-1 Insert the rubber foot rear 、foot adjust rear on the lower case.
Assemble the front adjust foot module including foot adjust body、pad adjust、spring slider、button
push on the lower case, and the assembling method is as other models.
