BenQ MX613ST - Product Disassembly;Assembly

67
Product Disassembly / Assembly

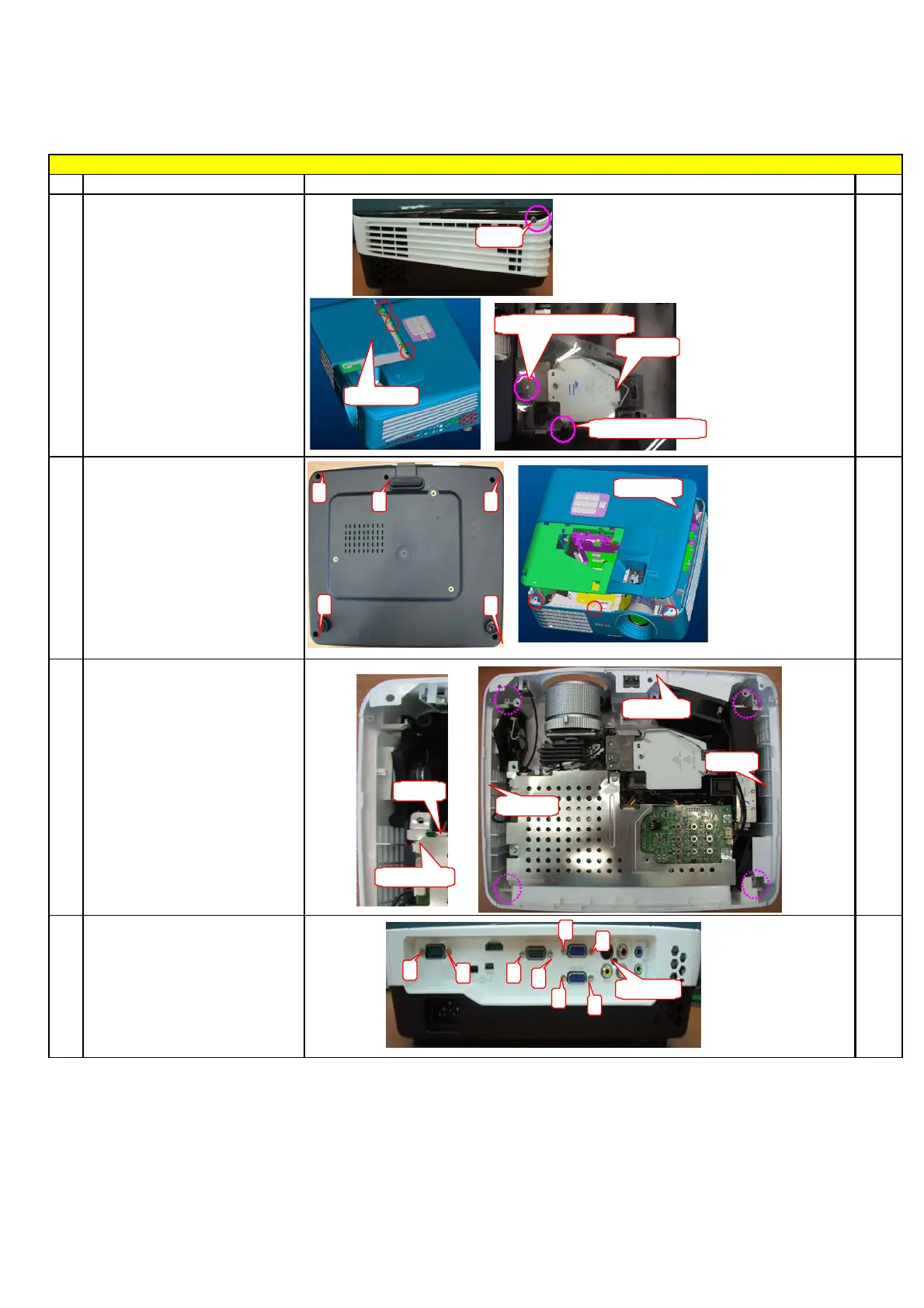

Step Description
Tool
1
Disassembly the Left case screw*1
and take off the lamp door.
Disassembly the lamp film of
anti-explosion.
Disassembly the lamp module
screw*1 and take off the lamp
module,as the right Figure .
Disassembly the upper case
screw*1.
screw
driver
2
Disassembly the lower case screw*
5 (8F.VA564.8R0).
Take off the upper case.
screw
driver
3
Extract the IR Wire and the
speaker wire from mainboard and
take off the front case module.
Push the boss behind, and take of
f
the left case and right case
module.
4
Dismantle screw*8(8F.00480.120)
on rear case then take off rear
case.
screw
driver
MX613ST MS612ST Dismantle SOP
screw
lamp film
Lamp module Scerw*1
upper case screw*1
Lamp Door
upper case
IR Wire
speaker wire
left case
right case
front case
1
3
4
5
2
1
2
3
4
5
67
8
8R0 screw
