BenQ MX613ST - Page 68

68
5

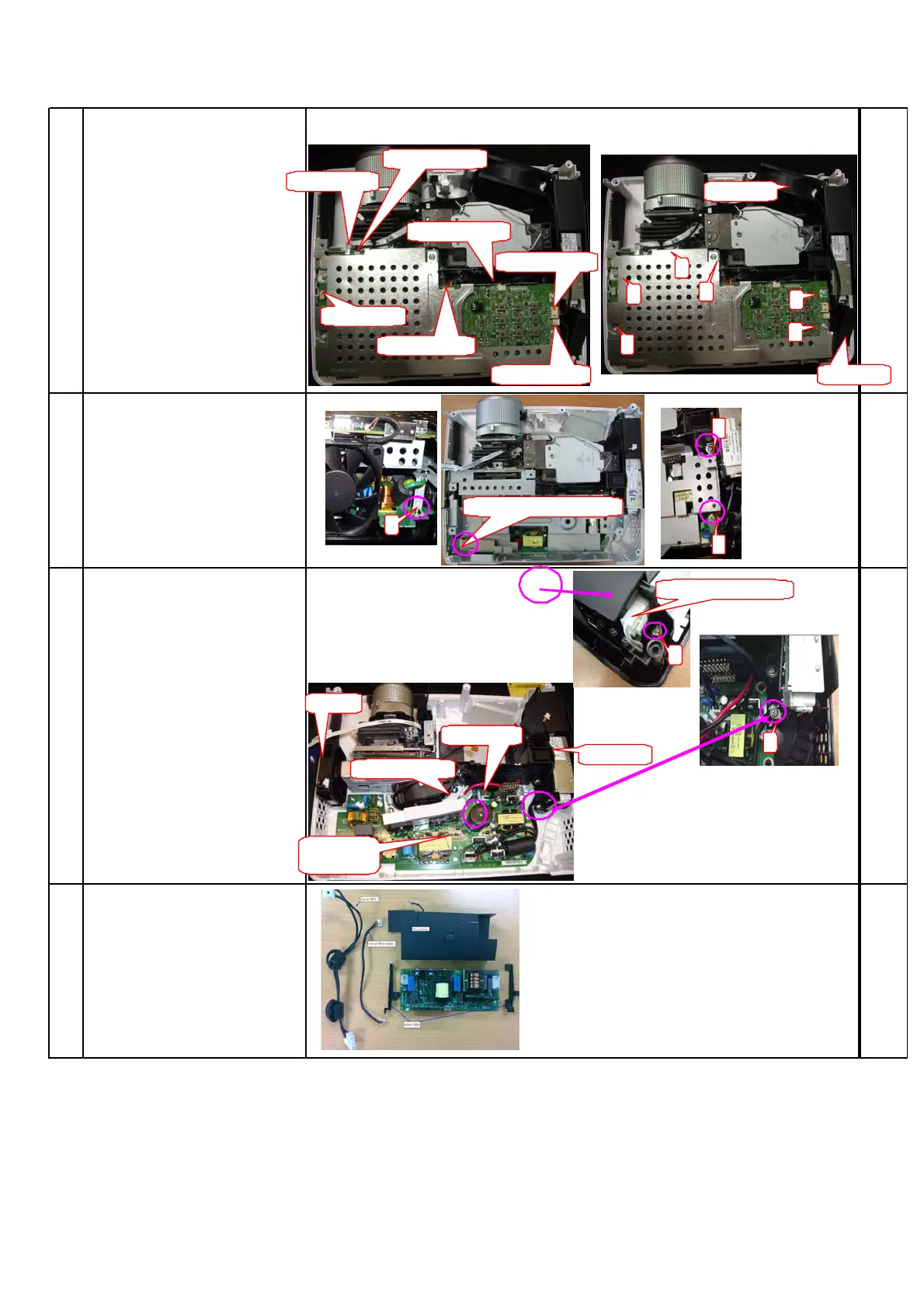

Dismantle
Inlet fan wire, C/W FPC wire,
C/W sensor wire, blower fan wire,
ballast 5pin wire, outlet fan1
wire, and outlet fan2 wire on
main board.
Disassemble the
screw*6(8F.1D224.5R0), and take
off the sheild main board .
Disassemble the main board and
take off the outlet fan1 and outlet
fan2.
screw
driver
6
Disassemble the
screw*3(8F.VG524.6R0).
Disassemble the ground
connection
screw*1(8F.VG564.8R0) and take
off the sheild main board.
screw
driver
7
Extract the door switch
wire/thermal wire ballast wire and
take off the power board rubber.
Disassemble the
screw*1(8F.VG524.6R0).
Take off the power board .
Disassemble the screw*3.
Take off the Engine module and
the Inlet fan.
Disassemble the screw*2, and take
off the ballast module.
Dismantle wire of lamp to ballast.
screw
driver
8
Disassemble the ballast wire*2,
ballast holder*2 and ballast mylar.
ground connection screw
1
3
2
C/W FPC wire
C/W sensor wire
blower fan wire
ballast 5pin wire
outlet fan 1wire
outlet fan2 wire
I
nlet fan wir
e
1
3
2
5
4
outlet fan1
outlet fan2
thermal wire
door switch wire
ballast wire
power board
rubber
Inlet fan
1
2
wire of lamp to ballast
6
