5-3 BKT of MB assembly

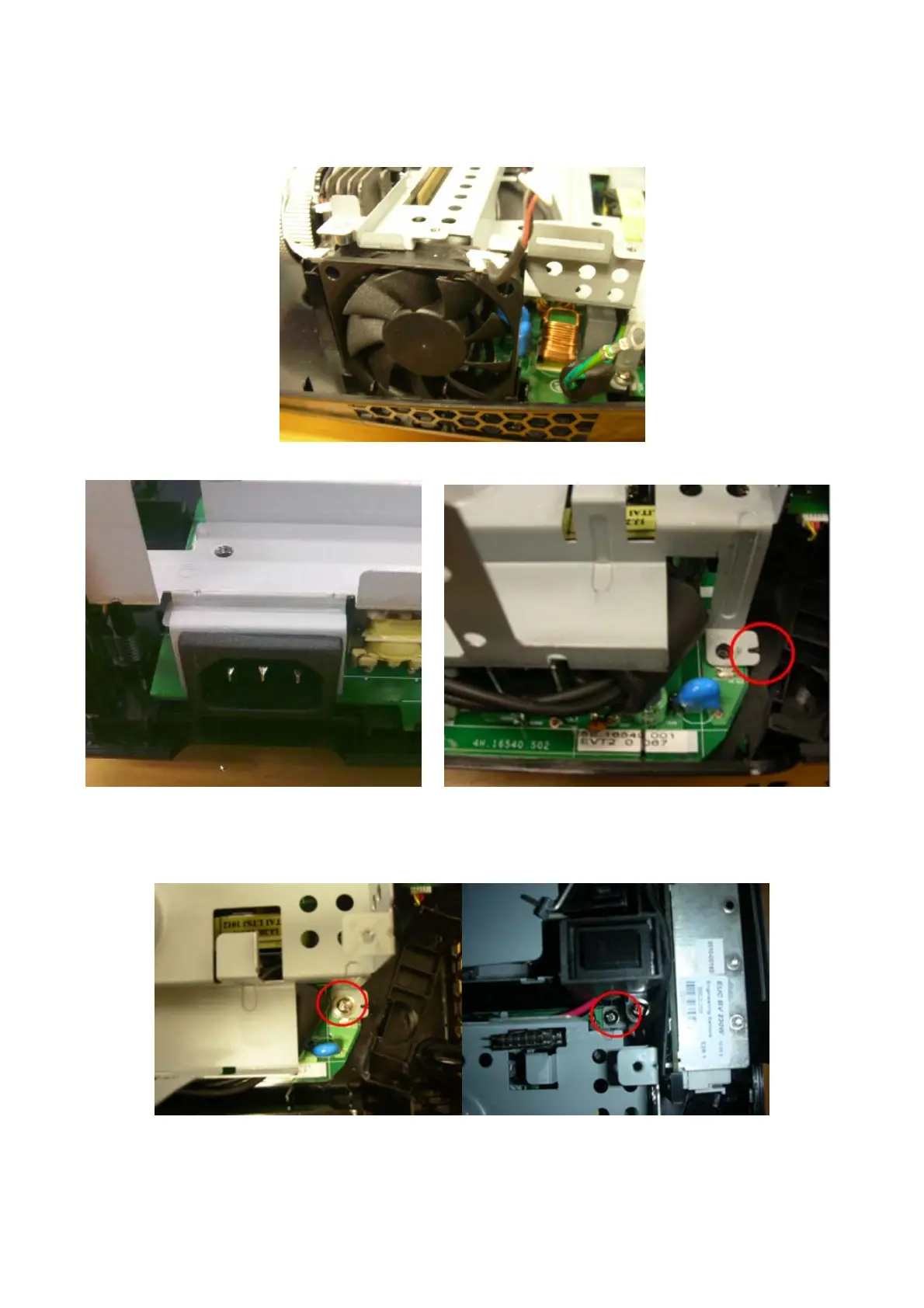

Step1. Assemble axial fan with 5-pin wire on lower case before assemble main board bracket.
Assemble the left leg of BKT behind AC socket and align the right leg with rib on the lower case.
Step2. Assemble the BKT on the lower case sequentially by screw and screw ground connection.
Check the wire of AC socket must through the gap as figure shows.
