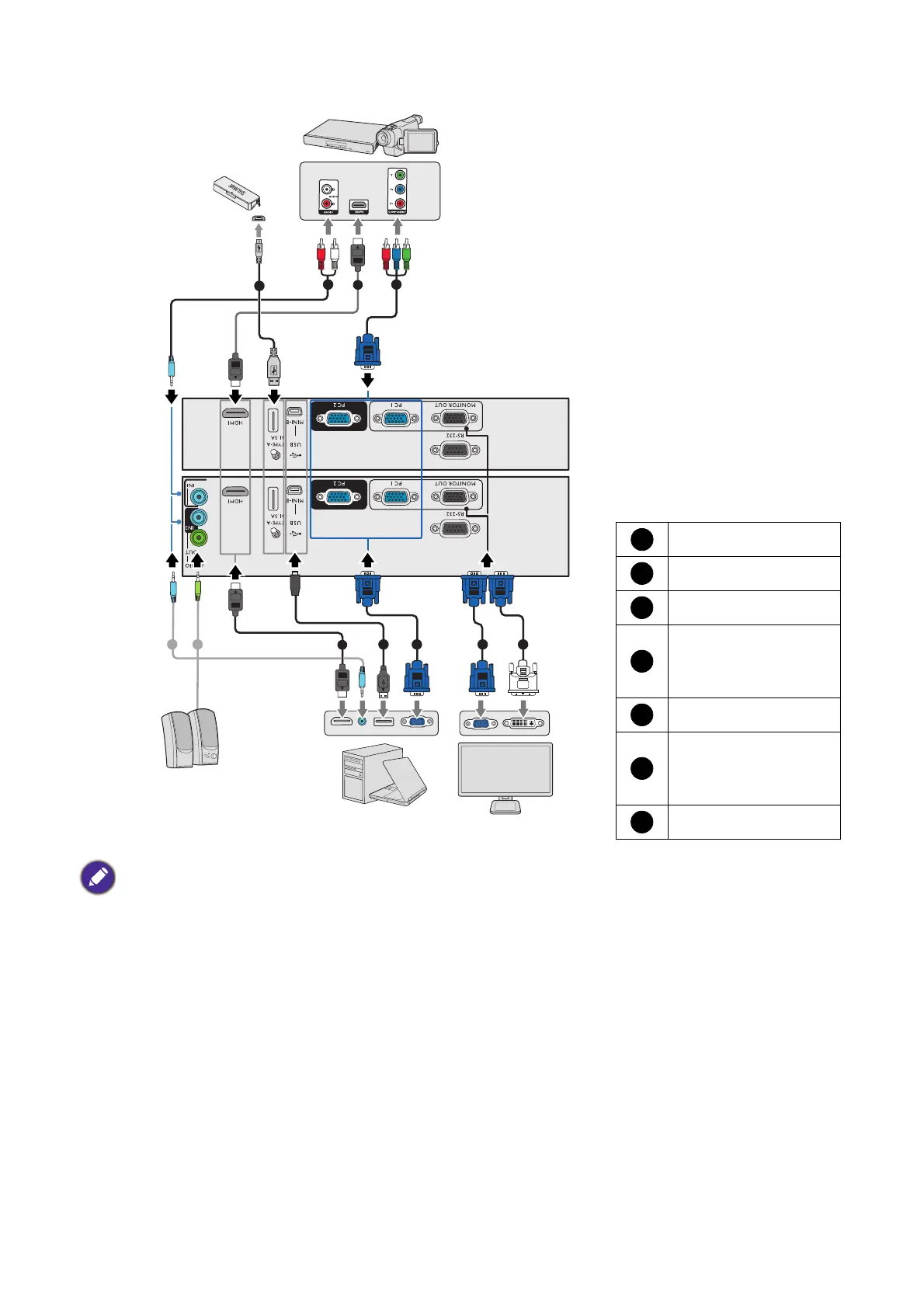

18 Connection
• In the connections above, some cables may not be included with the projector (see Shipping contents on page 7).
They are commercially available from electronics stores.
• The connection illustrations are for reference only. The rear connecting jacks available on the projector vary with
each projector model.
• Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo
like FN + function key with a monitor symbol turns the external display on/off. Press FN and the labeled function
key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.
• If the selected video image is not displayed after the projector is turned on and the correct video source has been
selected, check that the video source device is turned on and operating correctly. Also check that the signal cables
have been connected correctly.
7
2
77
10
4
3
1
1
10
9
0;67
0:67
VGA cable
VGA to DVI-A cable
USB cable
Component Video to
VGA (D-Sub)
adapter cable
Audio cable
USB cable (A to mini
B type) connect
to Touch Module
HDMI cable
Notebook or
desktop computer
Speakers
Monitor
A/V device
To u c h
module
