BenQ MX808ST - Projector Exterior View

8 Introduction

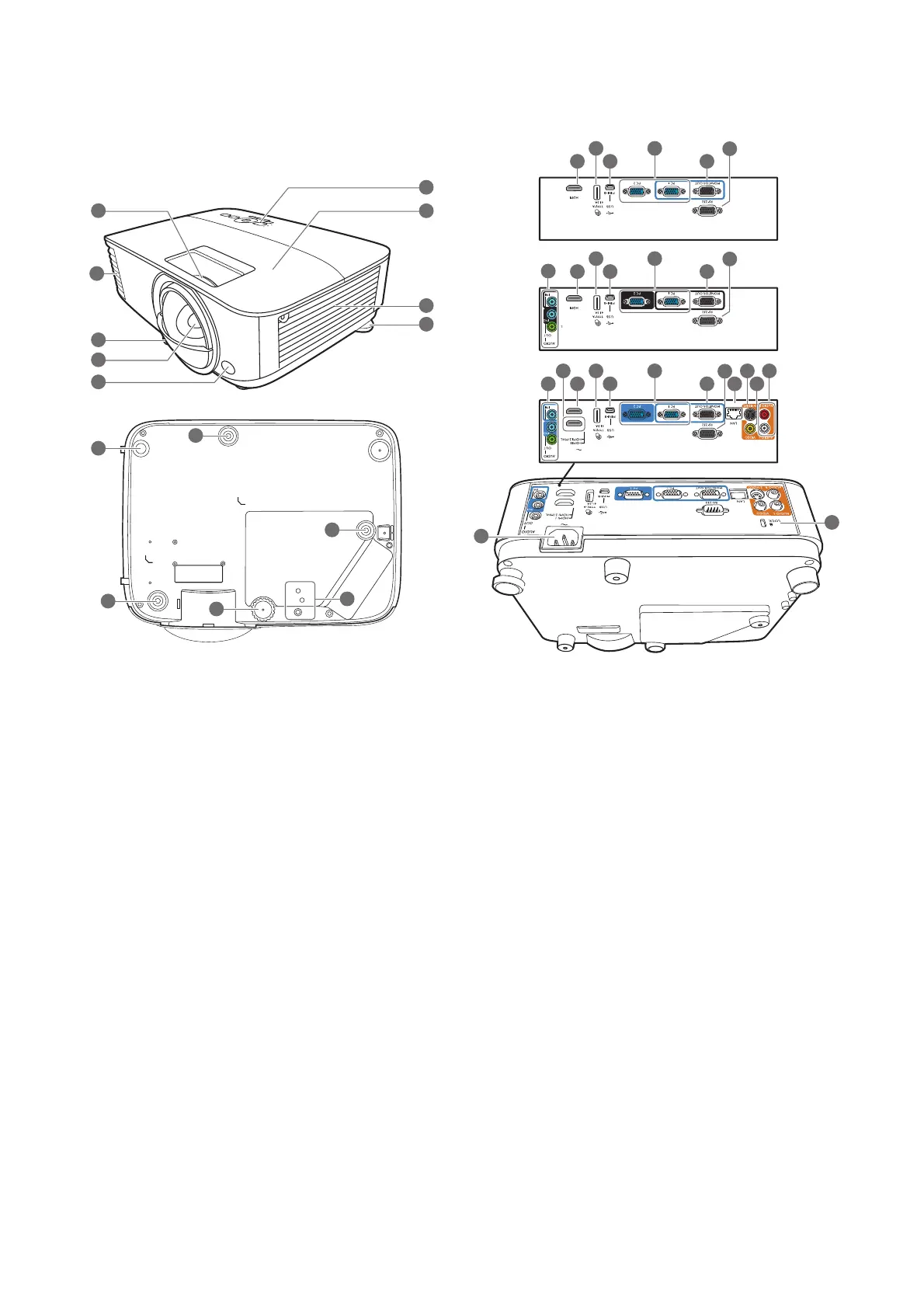

Projector exterior view
1. Focus ring
2. Vent (air exhaust)
3. Adjuster feet
4. Projection lens
5. IR remote sensor
6. External control panel
(See Controls and functions on page 9.)
7. Lamp cover
8. Vent (air inlet)
9. Audio input jacks
Audio output jack
10. HDMI input port
11. HDMI/MHL-input port (for HDMI dongle)
12. USB Type A port (Power for Touch kit)
13. USB Mini-B port
14. RGB (PC) signal input jacks
15. RGB (PC) signal output jack
16. RS-232 control port
17. RJ-45 LAN input jack
18. S-Video input jack
19. Video input jack
20. Audio (L/R) input jacks
21. AC power jack
22. Kensington anti-theft lock slot
23. Ceiling mount holes
24. PointWrite module holes
0;67
0:67
0;67
0:67
7
6
21
22
23
23
23
8
3
3
3
3
5
4
1
10
11 139
12 14
20
18
15 17
16
9
19
10 13
12 14
15
16
10 13
12 14
15
16
2
24
