Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
• In the connections shown below, some cables may not be included with the projector (see "Shipping
contents" on page 8). They are commercially available from electronics stores.
• The connection illustrations below are for reference only. The rear connecting jacks available on the
projector vary with each projector model.

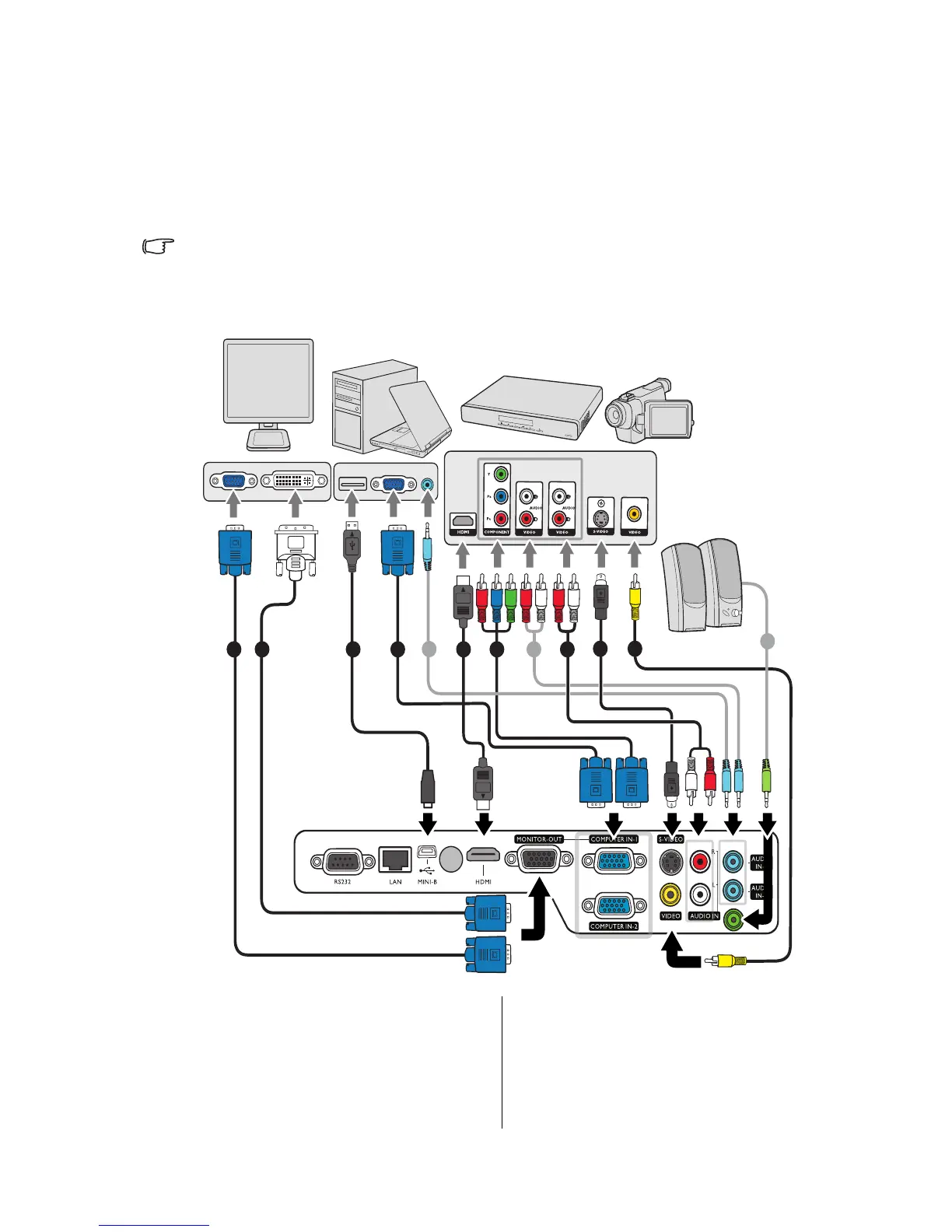

1. VGA cable
2. VGA to DVI-A cable
3. USB cable
4. HDMI cable
5. Component Video to VGA (D-Sub)
adapter cable
6. Audio L/R cable
7. S-Video cable
8. Video cable
9. Audio cable
Notebook or desktop computer
Speakers
or
A/V device
Monitor
(DVI)
(VGA)
or
To Next Page
