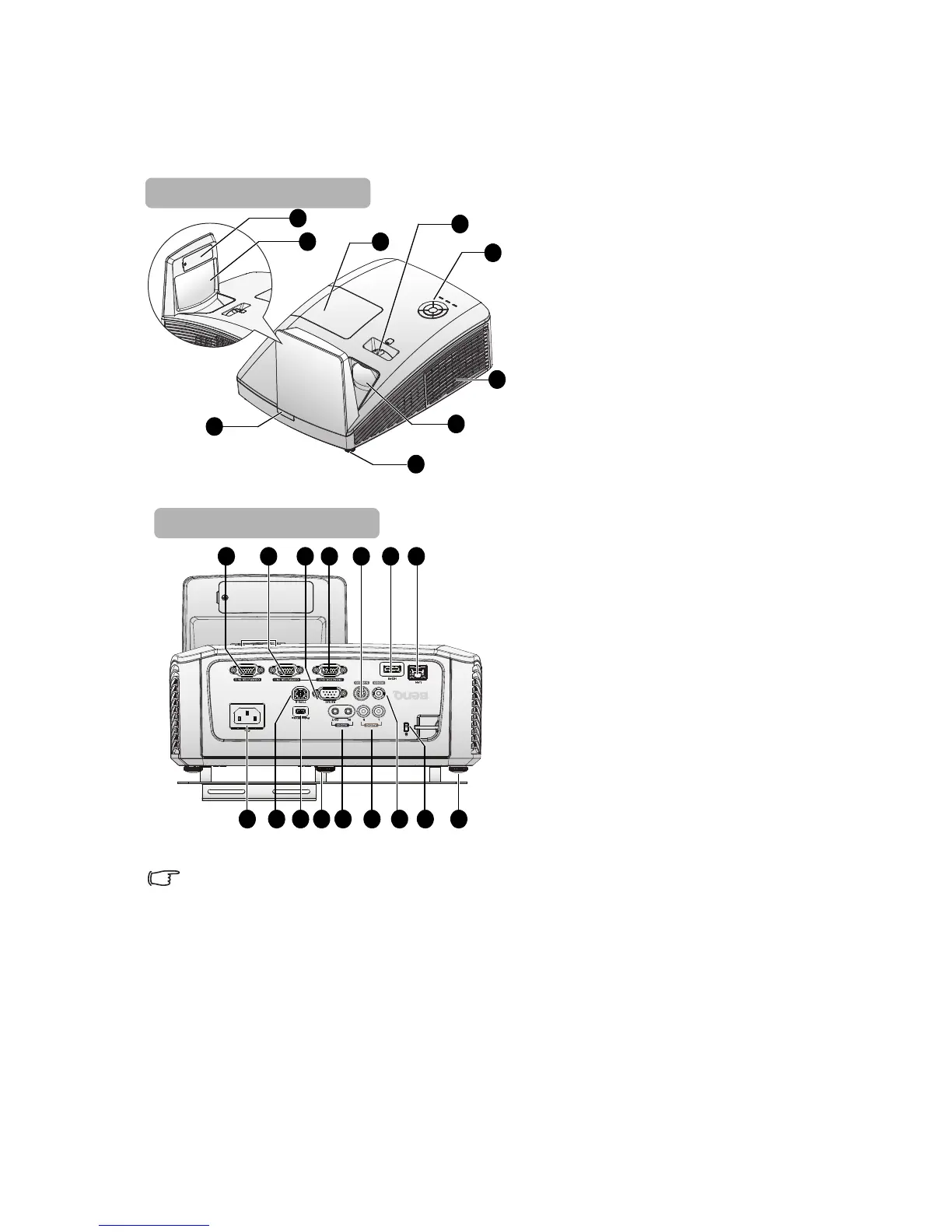

Projector exterior view
1. PointWriter dummy cover
(PointWriter kit)
2. Mirror
3. Lamp compartment cover
4. Focus ring
5. External control panel
(See "Projector" on page 11 for
details.)
6. Vent (cool air intake)
7. Projection lens
8. Front adjuster foot
9. Front IR remote sensor
10. COMPUTRR-2 input jack
11. COMPUTER-1 input jack
12. RS-232 control port
13. RGB signal output jack
14. S-VIDEO input jack
15. HDMI input jack
16. RJ45 LAN input jack
17. Front adjuster foot
18. Kensington anti-theft lock slot
19. VIDEO input jack
20. Audio (L/R) input jack
21. Audio input/output jack
22. Rear adjuster foot
23. PointWrite port (PointWriter kit is
required)
24. USB Type B port
25. AC power cord inlet
For setting the PointWriter kit on projector, Please find PointWriter manaual in the kit box you purchase.
