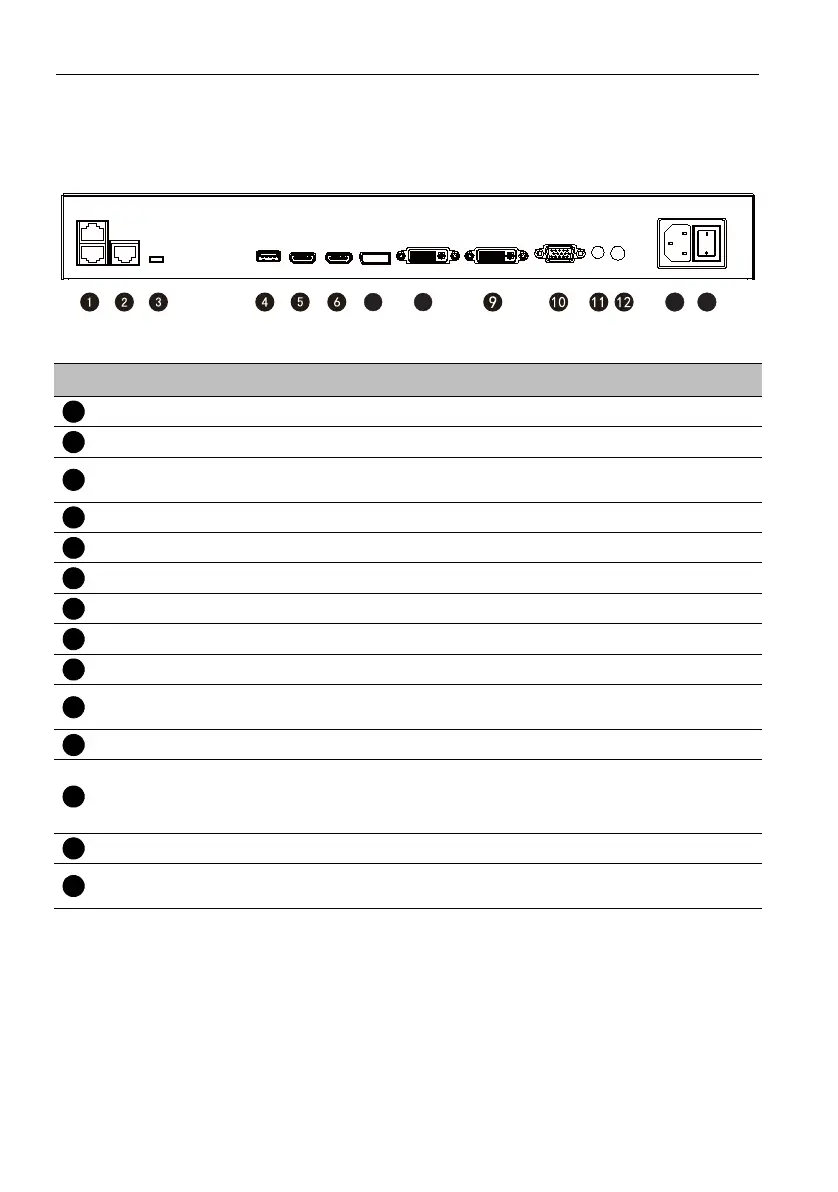

Input/output terminals
No. Name Description
RS232(IN/OUT) Serial interface, used for mutual transfer of data between devices.
LAN LAN command transfer only.
RS232/LAN/NC
Enable RS232(IN/OUT) or LAN port. NC to disable both RS232
and LAN port.
USB2.0 Access multimedia files on USB drives directly.
HDMI1 Receive 4K2K 60Hz supported signals from an external device.
HDMI2 Receive 4K2K supported signals from an external device.
DP-IN Connect a video source to a display device.
DVI-D-IN DVI-D video input.
DVI-D-OUT DVI-D video output.
VGA
Receive analog RGB signals from an external device (such as a
computer).
AUDIO IN Receives audio signals from an external device.
AUDIO OUT
Connects to an external audio device (such as a speaker, stereo
system, or headphone) to output the audio that is supplied by the
video source.
AC IN AC power input from the wall outlet.
MAIN POWER
SWITCH
Switch the main power on/off.
7 8
13 14
RS232 IN/OUT
LAN
RS232/LAN/NC
USB2.0 HDMI1 HDMI2 DP-IN DVI-D_IN DVI-D_OUT
VGA
AUDIO
OUT
AUDIO
IN
AC IN
