Color calibration & video wall setup software 33
Operations- LAN

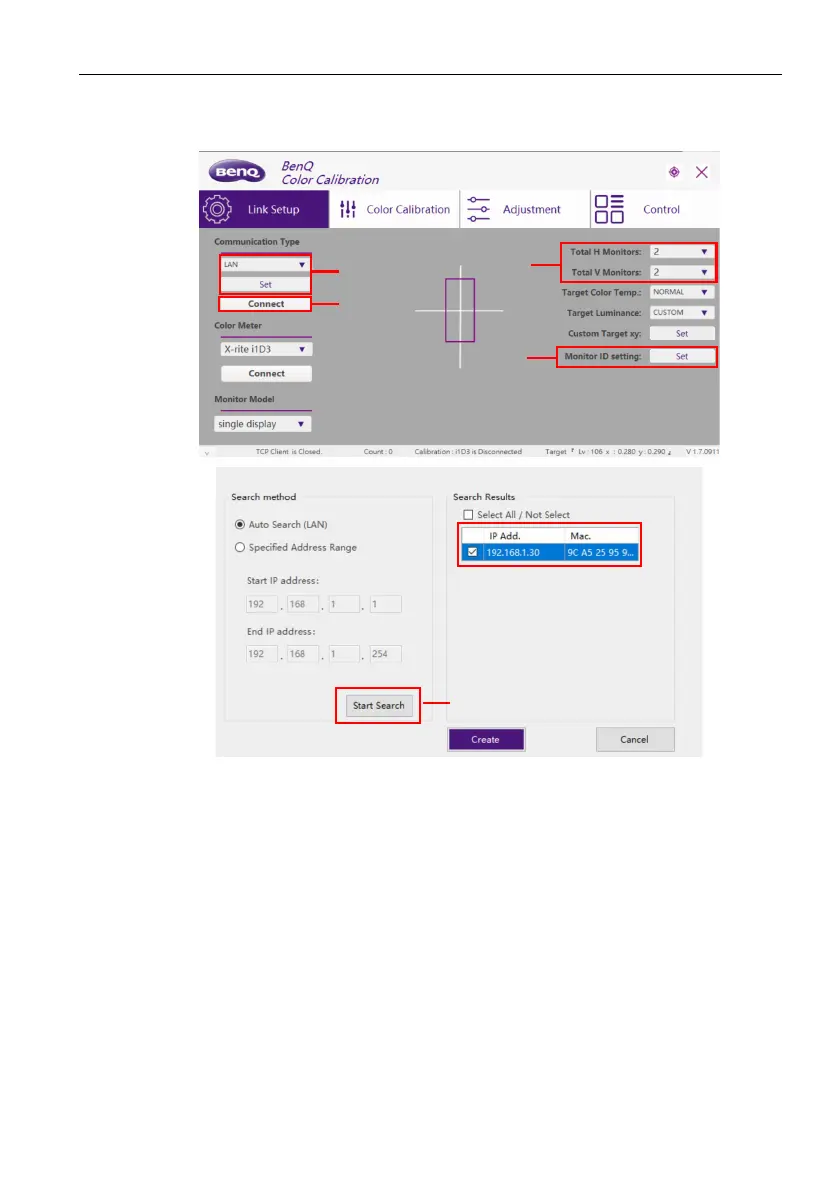

Link Setup (communication setup)
1. Follow the configuration and calibration tool control Connection. Refer to LAN on
page 18 for more information.
2. Select LAN, then click Set. A search window will pop out.
3. Click Start Search to scan display in the network. Check the box, and click
Create.
4. Click Connect to start LAN connection.
5. Enter total units of video wall.
6. In Monitor ID setting, follow the steps to match the Unit ID with display.
7. Refer to Control (video wall configuration) on page 31 to start video wall control
and setup.
