Q7C3 LCD Monitor Service Guide
Alignment Procedure
5

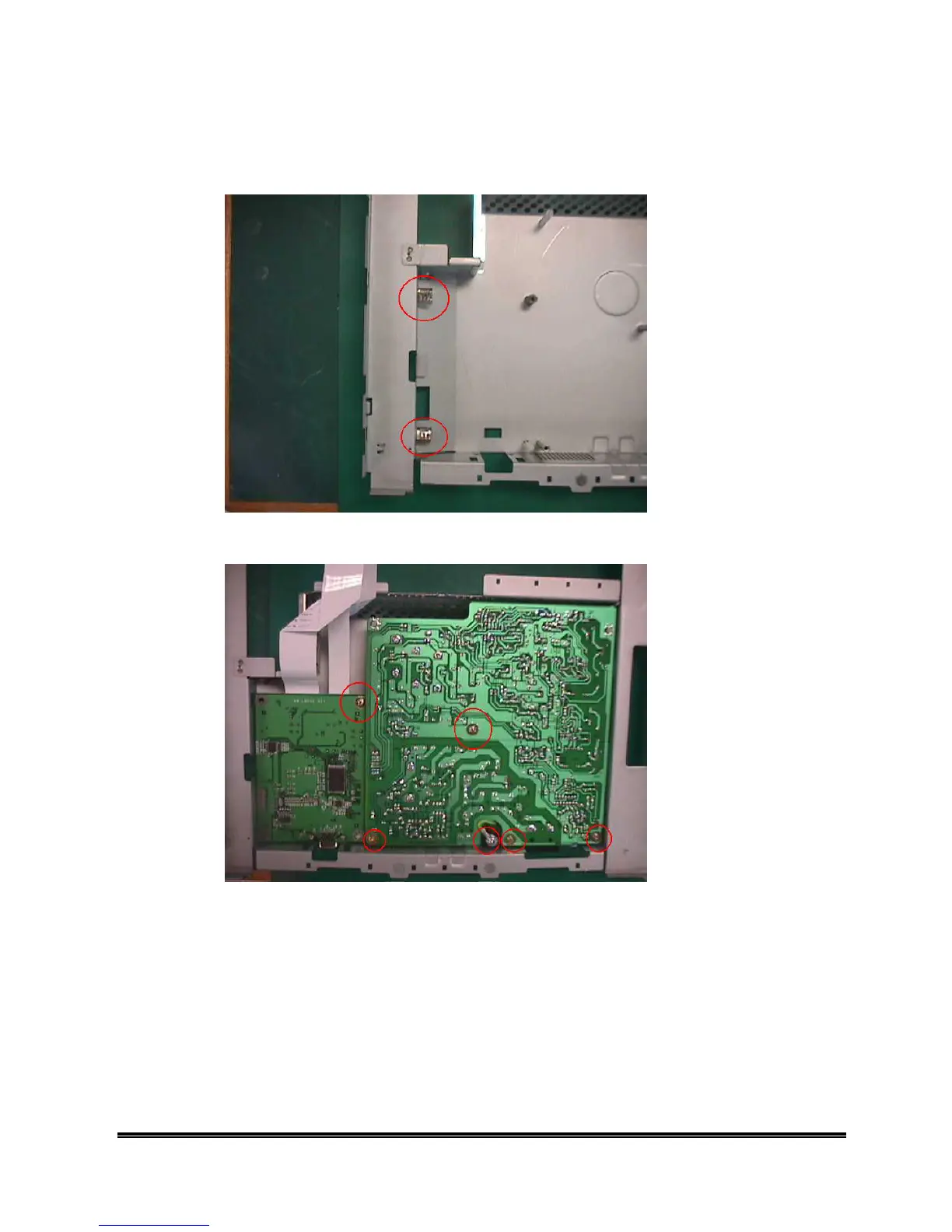

2. Dressing
A. Check the two spring on the BKT
B. Screws on the interface & power board
