Connecting the touch module

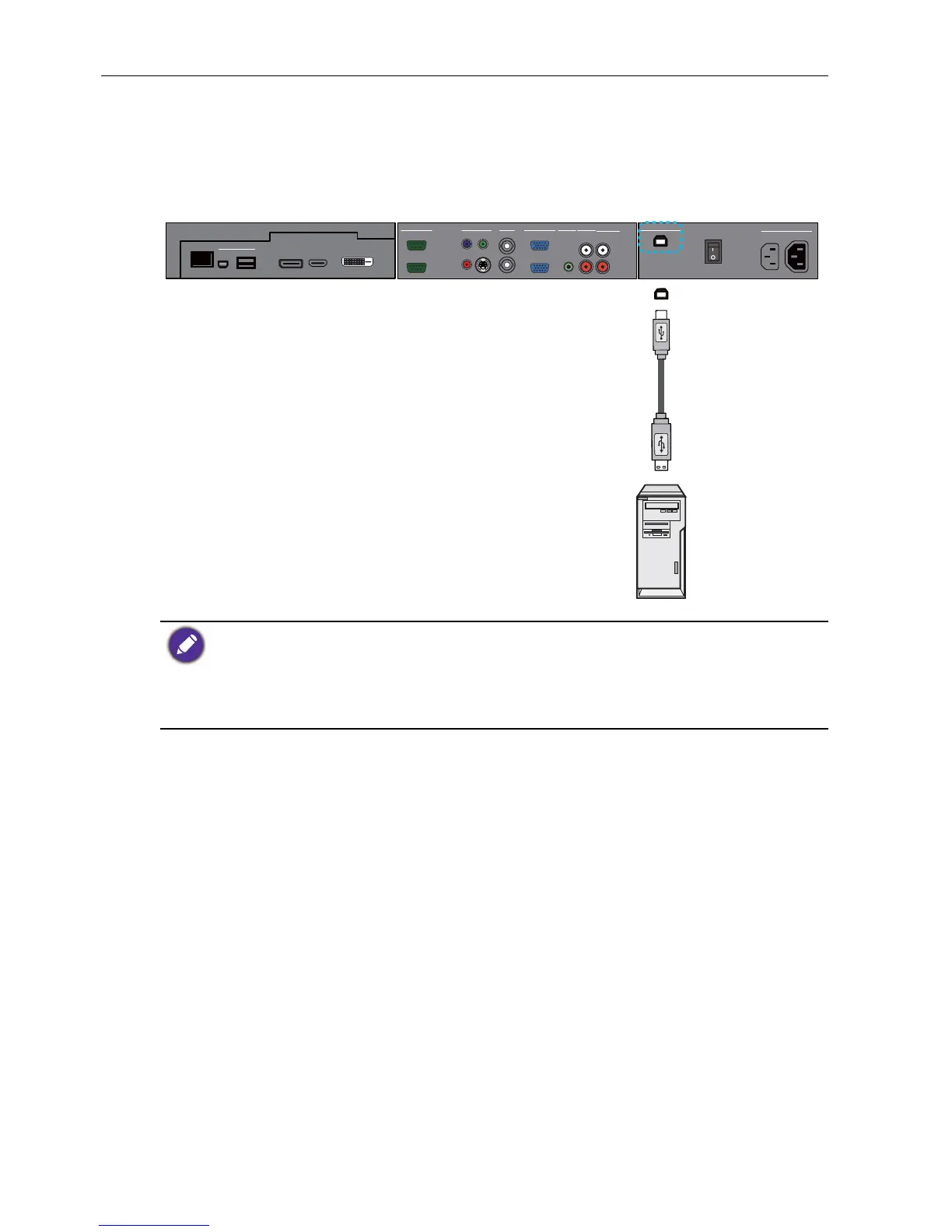

Connect the USB TYPE B FOR TOUCH (type B) jack on the display to the USB port
of a computer using the supplied USB cable. The touch module of the display supports
easy Plug-and-Play operation. There is no need to install additional drivers on the
computer.
• Avoid blocking the touch screen frame (where sensors are located) when initiating the touch
module.
• It is highly recommended that you connect the display to the PC or laptop directly. Avoid
connecting the display to a face plate device which may cause failures in touch operations.
• If any ghost image occurs, please try to un-plug and then re-plug all USB cables. If the failure
image still exists, use another USB type B to A cable.
