Connecting with video equipment
English

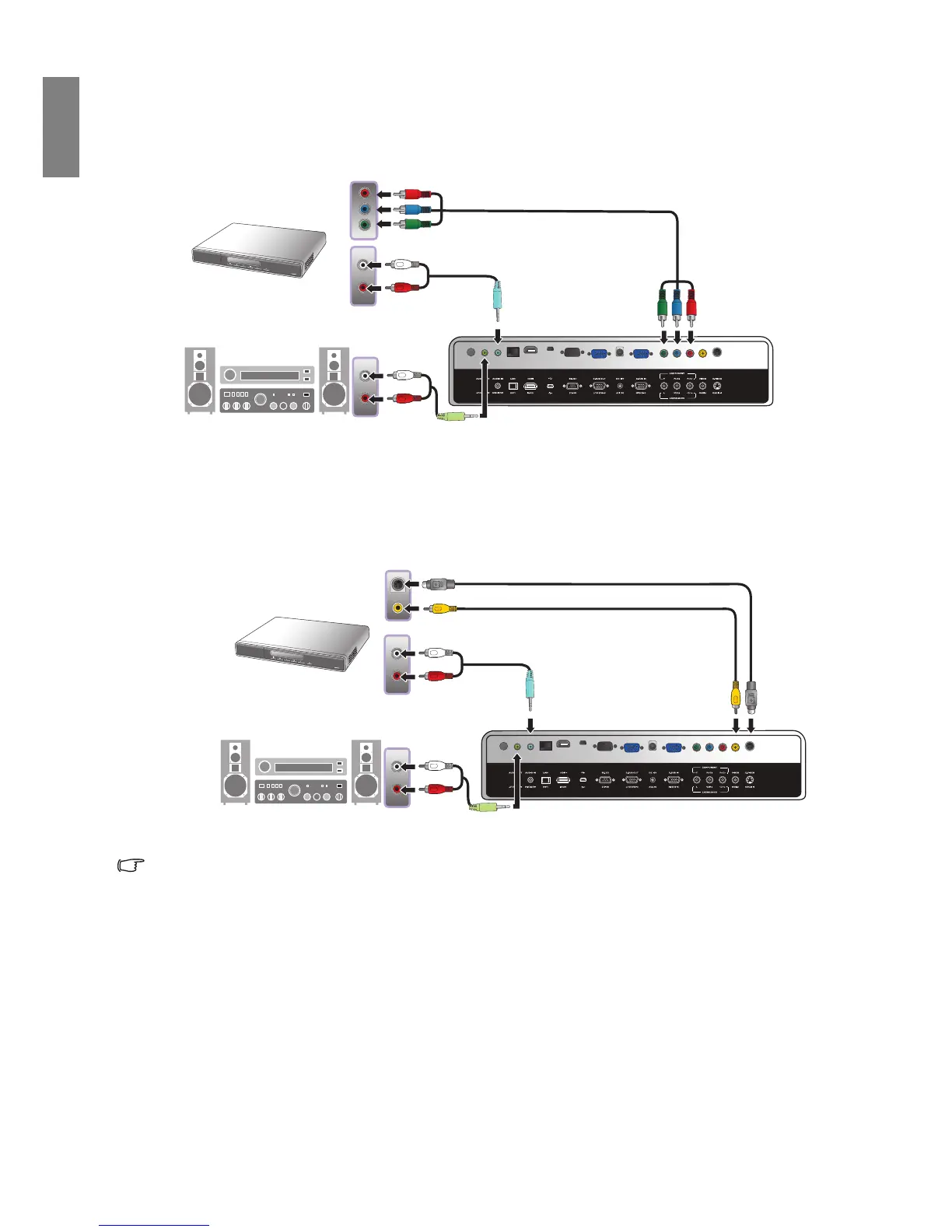

Connecting component-video devices
Be sure to match the corresponding colors between the cables and the terminals. The RCA type component
video jacks are provided for connection to video output devices. The audio connections are provided for
informational purposes only. You can also connect the separate audio cable to a suitable audio amplifier.
Connecting S-Video or video devices
You need only connect S-Video or composite Video cable from the same device, never both at the same
time. The audio connections are provided for informational purposes only. You can also connect the
separate audio cable to a suitable audio amplifier.
• If you have already made a Component Video connection between the projector and the video source
device, you need not connect to this device again using an S-Video or composite Video connection as
this makes an unnecessary second connection of poorer picture quality. You need only connect using
a composite Video connection if both Component Video and S-Video are not supplied on the video
source device (for example, with some analog video cameras).
• If the selected video image is not displayed after the projector is turned on and the correct video
source has been selected, please check that the video source device is turned on and operating
correctly. Also check that the signal cables have been connected correctly.
