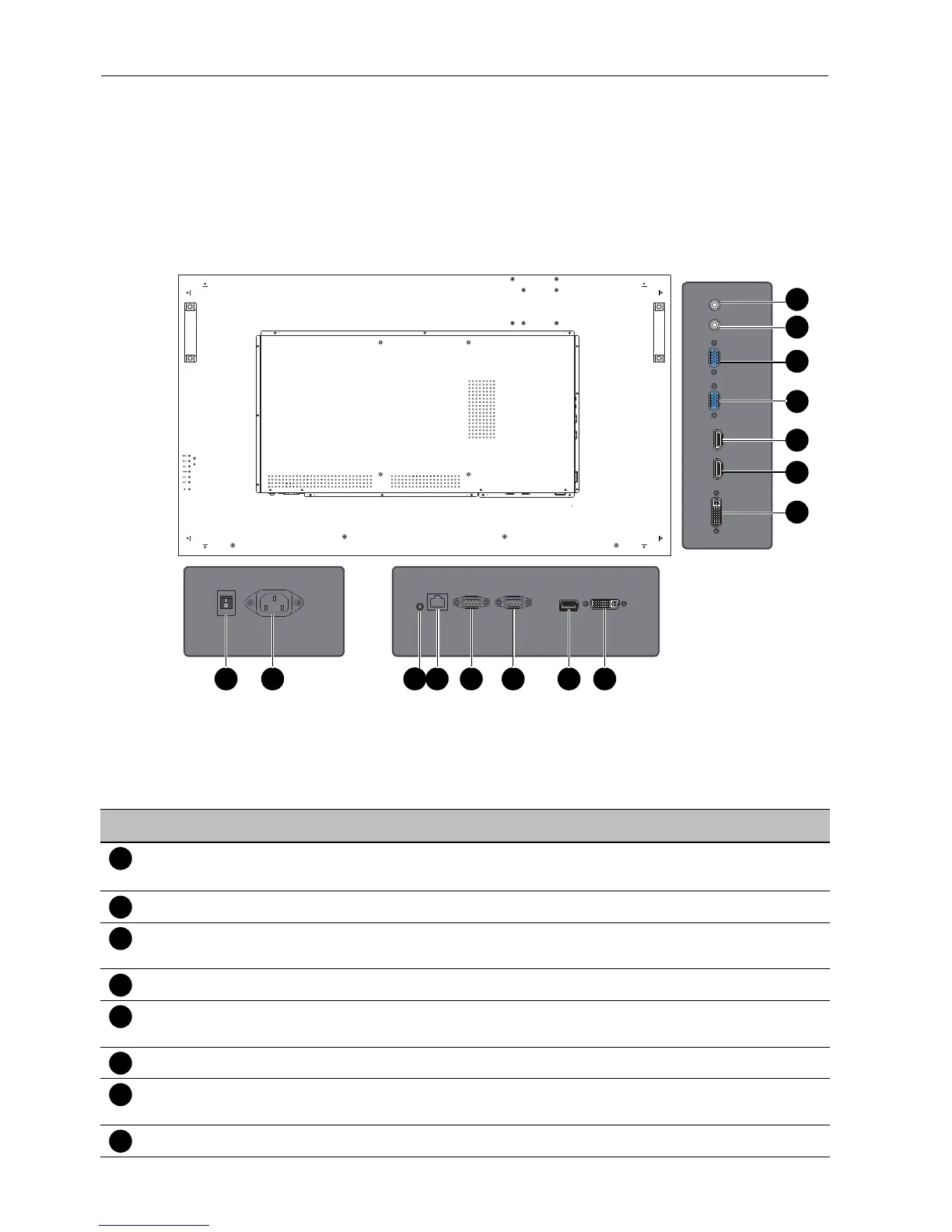

Parts of the display and their functions10
Input/output terminals
No. Name Description
AC SWITCH ON/
OFF
Turns on or off the main power.
AC IN Connects to a power outlet via the supplied power cord.
IR-IN For use with an IR Extender - to ensure better response from the
remote control.
RJ-45 Connects to the RJ-45 port on your Ethernet or router.
RS232 OUT Outputs control signals from the RS232C IN input to another
display for external control and multi-display operation.
RS232 IN Receives control signals from a computer or another display.
USB Connects to a USB flash drive for multimedia playback or
software update.
DVI-OUT Outputs DVI signals to another display.
HDMI2
LINE OUT
AUDIO IN
VGA OUT
VGA IN
HDMI1
DVI IN
IR IN/OUT RJ-45 LAN RS232 OUT
RS232 IN
DVI OUTUSB
HDMI2
LINE OUT
AUDIO IN
VGA OUT
VGA IN
HDMI1
DVI IN
IR IN RJ-45 LAN AC SWITCH
ON/OFF
AC IN
100-240V~50-60Hz
RS232 OUT
RS232 IN
DVI OUTUSB
1 2 4 5 6 7 8
12
15
14
13
11
10
9
3
1
2
3
4
5
6
7
8
