Connecting the digital inputs

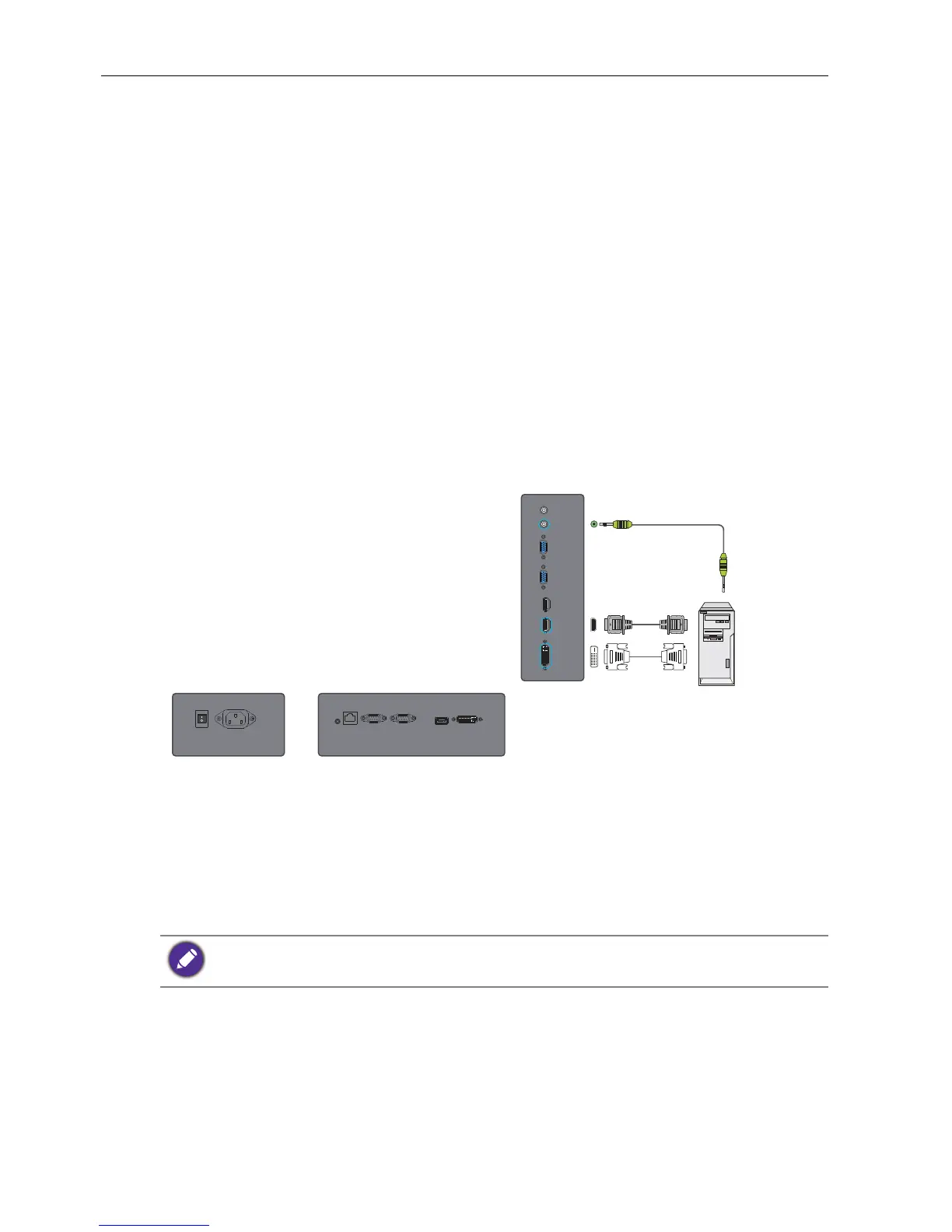

1. Connect the DVI-IN jack on the display to the DVI-D output jack on a computer
using a DVI-D cable. If the computer has an HDMI output jack, connect the com-
puter’s HDMI output jack to the HDMI input jack on the display using an HDMI cable
or a DVI-D to HDMI conversion cable.
2. If needed, connect the computer’s audio output jack to the AUDIO IN jack on the
display using a suitable audio cable.
3. To view video image from this input, press the DVI or HDMI-1 button on the
remote control. To select an appropriate audio source, see Audio menu on page 25
for details.
The cables are not supplied and should be purchased separately.
HDMI2
LINE OUT
AUDIO IN
VGA OUT
VGA IN
HDMI1
DVI IN
IR IN RJ-45 LAN AC SWITCH
ON/OFF
AC IN
100-240V~50-60Hz
RS232 OUT
RS232 IN
DVI OUTUSB
Audio cable
Computer
DVI-D cable
HDMI cable
