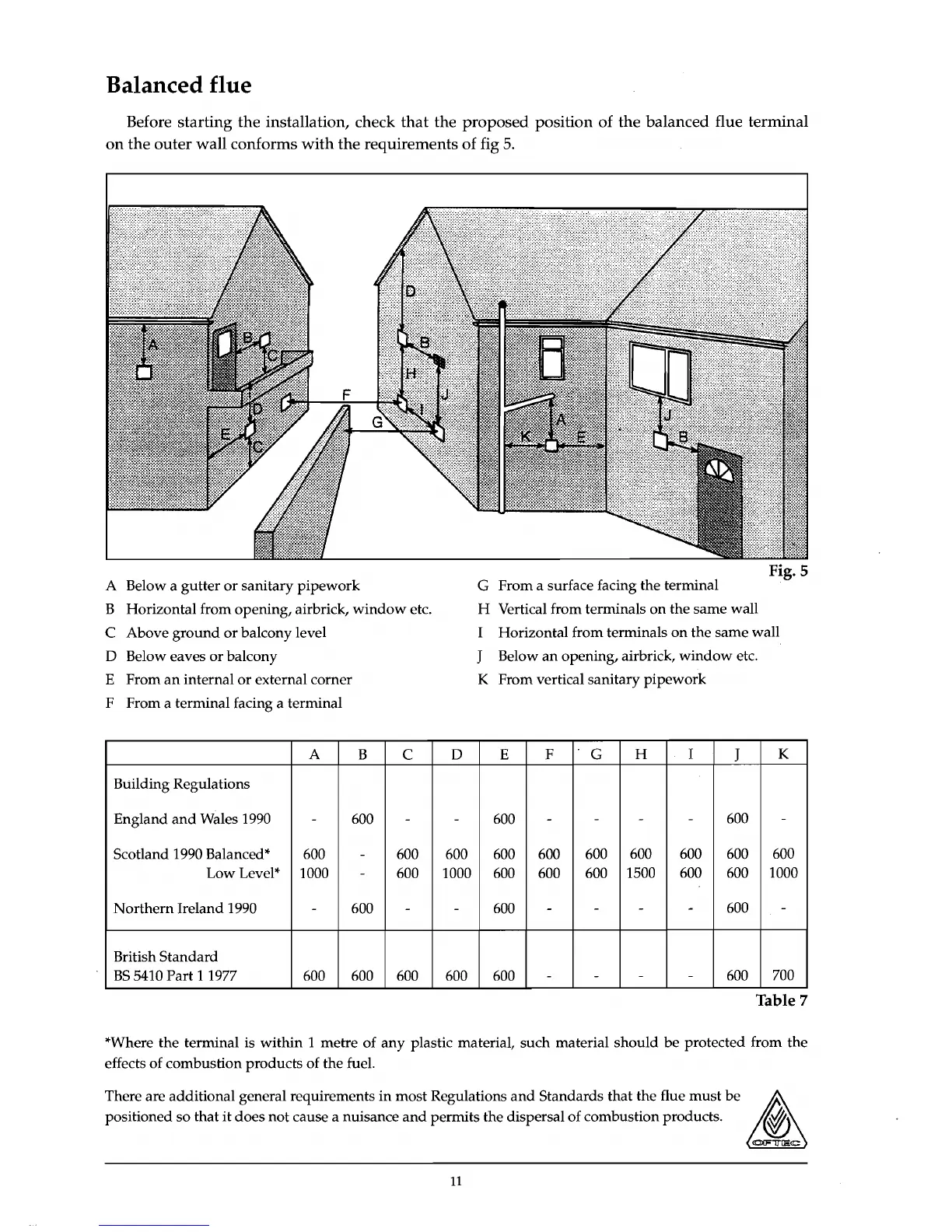

Balanced flue
Before starting the installation, check
that
the
proposed
position of the balanced flue terminal
on
the
outer
wall conforms
with
the requirements of fig
5.
A Below a
gutter
or
sanitary
pipework
B Horizontal from opening, airbrick,
window
etc.
C Above
ground
or
balcony level
D Below eaves
or
balcony
E From
an
internal
or
external corner
F From a terminal facing a terminal
Fig. 5
G From a surface facing the terminal
H Vertical from terminals
on
the same wall
I Horizontal from terminals
on
the
same
wall
J Below
an
opening, airbrick,
window
etc.
K From vertical sanitary
pipework
A B
C
D E F
'G
H I
J
K
Building Regulations
England
and
Wales 1990
-
600
- -
600 -
- -
- 600
-
Scotland 1990 Balanced * 600
-
600 600 600 600 600
600 600 600
600
Low Level*
1000
-
600
1000
600
600 600 1500
600 600
1000
Northern
Ireland 1990
-
600
- -
600
-
- -
- 600
-
British
Standard
BS
5410 Part 1 1977 600 600
600
600 600 - -
- -
600 700
Table 7
*Where the terminal is
within
1 metre of
any
plastic material, such material
should
be
protected from the
effects of combustion products of the fuel.
There are additional general requirements
in
most
Regulations
and
Standards
that
the flue
must
be
~
positioned so
that
it
does
not
cause a nuisance
and
permits the dispersal of combustion products. ®
