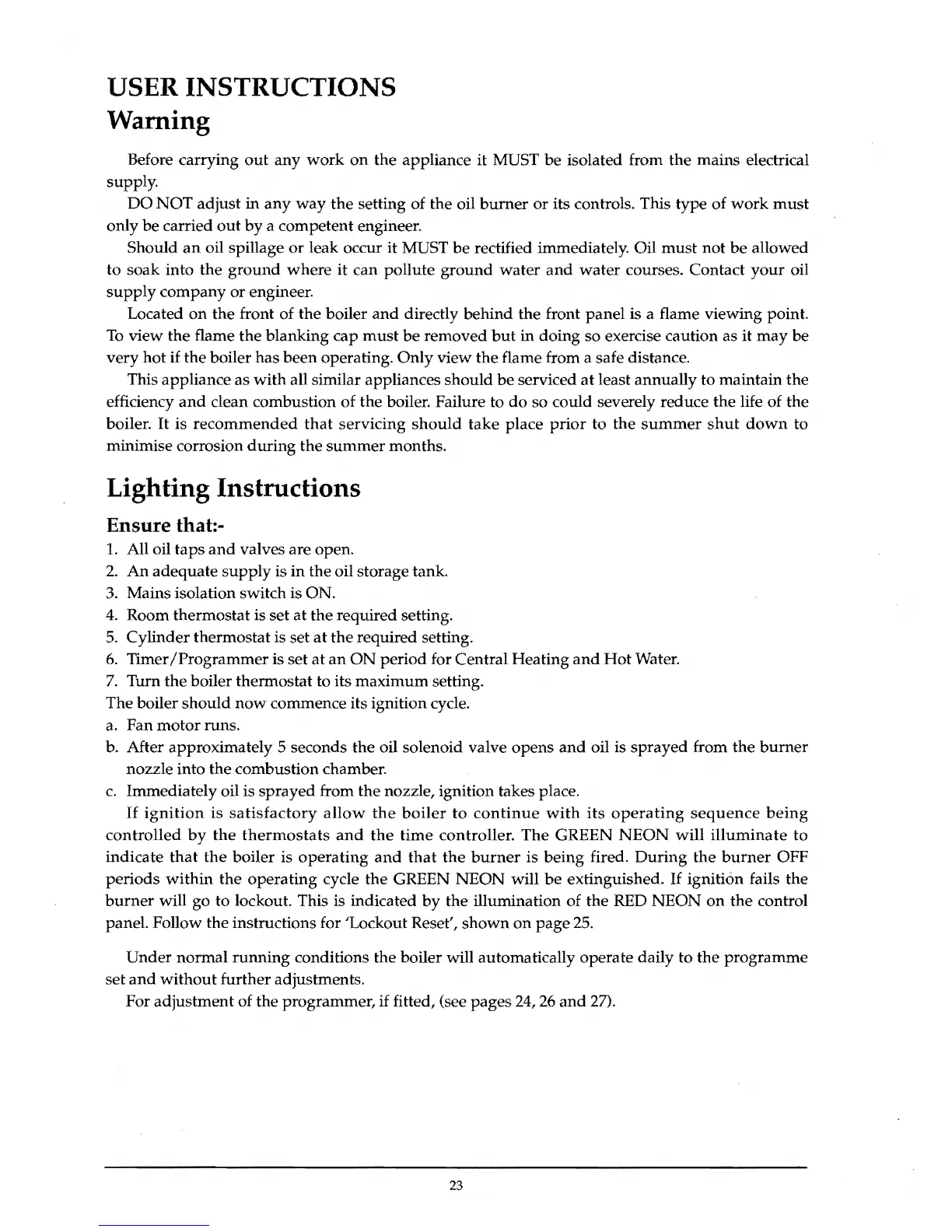

USER INSTRUCTIONS
Warning
Before carrying
out
any
work
on
the
appliance it MUST
be
isolated from
the
mains electrical
supply.
DO
NOT
adjust in
any
way
the
setting of
the
oil
burner
or
its controls. This type
of
work
must
only
be
carried
out
by
a competent engineer.
Should
an
oil spillage
or
leak occur it MUST
be
rectified immediately. Oil
must
not
be
allowed
to
soak into
the
ground
where
it can pollute
ground
water
and
water
courses. Contact
your
oil
supply
company
or
engineer.
Located
on
the
front of
the
boiler
and
directly
behind
the
front
panel
is a flame viewing point.
To
view
the
flame
the
blanking cap
must
be
removed
but
in doing
so
exercise caution
as
it
may
be
very
hot
if
the
boiler has been operating.
Only
view
the
flame from a safe distance.
This appliance as
with
all similar appliances
should
be
serviced
at
least annually
to
maintain
the
efficiency
and
clean combustion
of
the
boiler. Failure to
do
so
could severely reduce
the
life of
the
boiler.
It
is
recommended
that
servicing
should
take
place
prior
to
the
summer
shut
down
to
minimise corrosion
during
the
summer
months.
Lighting Instructions
Ensure that:-
1. All oil
taps
and
valves are open.
2.
An
adequate
supply
is
in
the oil storage tank.
3.
Mains isolation switch is ON.
4.
Room thermostat is set
at
the
required setting.
5.
Cylinder thermostat is set
at
the
required setting.
6.
TimerI Programmer is set at
an
ON
period for Central Heating
and
Hot
Water.
7.
Turn
the
boiler thermostat to its
maximum
setting.
The boiler
should
now
commence its ignition cycle.
a. Fan
motor
runs.
b. After approximately 5 seconds
the
oil solenoid valve
opens
and
oil is
sprayed
from
the
burner
nozzle into
the
combustion chamber.
c.
Immediately oil is
sprayed
from
the
nozzle, ignition takes place.
If
ignition
is
satisfactory
allow
the
boiler
to
continue
with
its
operating
sequence
being
controlled
by
the
thermostats
and
the
time
controller.
The
GREEN
NEON
will
illuminate
to
indicate
that
the
boiler is
operating
and
that
the
burner
is being fired.
During
the
burner
OFF
periods
within
the
operating
cycle
the
GREEN
NEON
will
be
extinguished.
If
igniti()n fails
the
burner
will go
to
lockout. This is indicated
by
the illumination of
the
RED
NEON
on
the
control
panel. Follow
the
instructions for 'Lockout Reset',
shown
on
page
25.
Under
normal
running
conditions the boiler will automatically operate daily
to
the
programme
set
and
without
further adjustments.
For adjustment of
the
programmer,
if
fitted, (see pages 24,
26
and
27).
23
