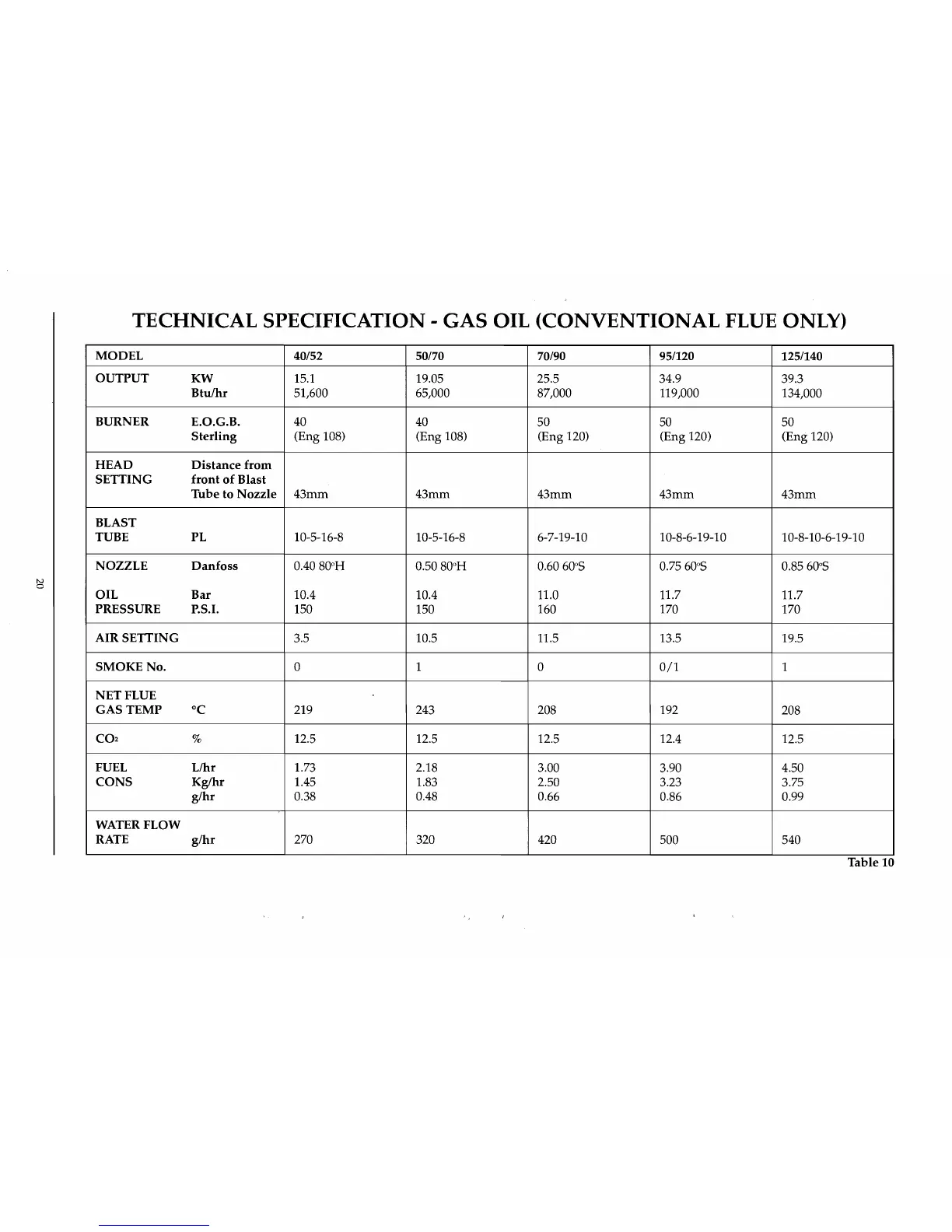

TECHNICAL SPECIFICATION - GAS OIL (CONVENTIONAL FLUE ONLY)
t:5
MODEL 40/52
50/70 70/90 95/120 125/140
OUTPUT KW
Btuihr
15.1
51,600
19.05
65,000
25.5
87,000
34.9
119,000
39.3
134,000
BURNER
E.O.G.B.
Sterling
40
(Eng 108)
40
(Eng 108)
50
(Eng 120)
50
(Eng 120)
50
(Eng 120)
HEAD
SETTING
Distance from
front of Blast
Tube to Nozzle 43mm 43mm
43mm 43mm 43mm
BLAST
TUBE PL
10-5-16-8 10-5-16-8 6-7-19-10 10-8-6-19-10 10-8-10-6-19-10
NOZZLE
OIL
PRESSURE
Danfoss
Bar
P.S.I.
0.4080
0
H
10.4
150
0.5080
0
H
10.4
150
0.6060°5
11.0
160
0.7560°5
11.7
170
0.8560°5
11.7
170
AIR SETTING
3.5
10.5
11.5 13.5 19.5
SMOKE No.
0 1
0
0/1
1
NET FLUE
GAS
TEMP
°C 219 243 208 192
208
CO2
%
12.5 12.5 12.5 12.4 12.5
FUEL
CONS
Llhr
Kg/hr
g/hr
1.73
1.45
0.38
2.18
1.83
0.48
3.00
2.50
0.66
3.90
3.23
0.86
4.50
3.75
0.99
WATERFLOW
RATE
g/hr 270 320
420 500 540
Table 10
