BENSON JETSTREME 4+ - Page 20

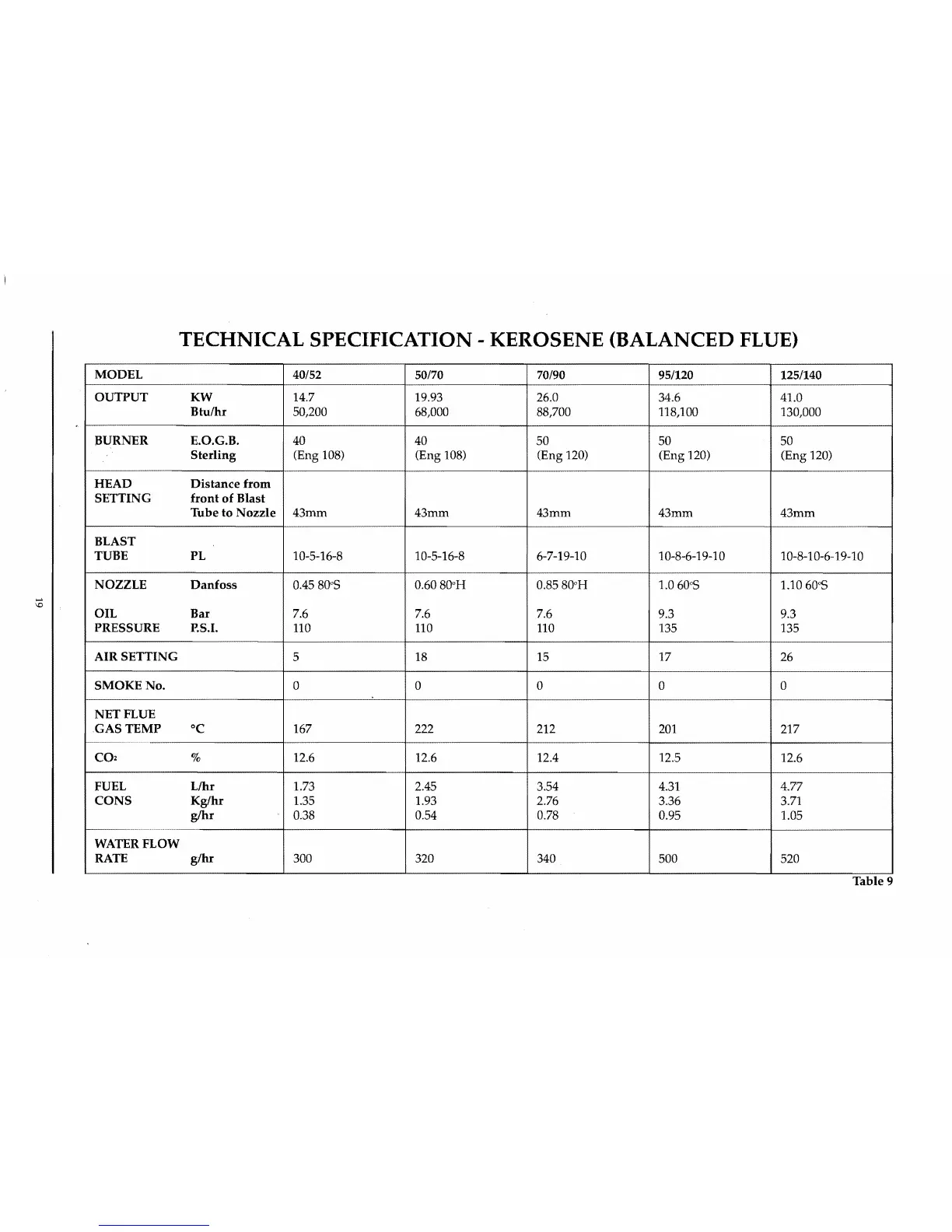

TECHNICAL SPECIFICATION - KEROSENE (BALANCED FLUE)
......
1.0
MODEL 40/52
50/70 70/90 95/120 125/140
OUTPUT KW
Btuthr
14.7
50,200
19.93
68,000
26.0
88,700
34.6
118,100
41.0
130,000
BURNER
E.O.G.B.
Sterling
40
(Eng 108)
40
(Eng 108)
50
(Eng 120)
50
(Eng 120)
50
(Eng 120)
HEAD
SETTING
Distance from
front of Blast
Tube to Nozzle 43mm
43mm 43mm 43mm
43mm
BLAST
TUBE PL 10-5-16-8 10-5-16-8 6-7-19-10 10-8-6-19-10
10-8-10-6-19-10
NOZZLE
OIL
PRESSURE
Danfoss
Bar
P.S.I.
0.4580"5
7.6
110
0.6080
o
H
7.6
110
0.8580
0
H
7.6
110
1.060°5
9.3
135
1.1060"5
9.3
135
AIR SETTING
5 18 15
17
26
SMOKE No.
0 0 0 0 0
NET FLUE
GAS TEMP
CO2
°C
%
167 222
212
201 217
12.6 12.6
12.4 12.5 12.6
FUEL
CONS
Lthr
Kglhr
glhr
..
1.73
1.35
0.38
2.45
1.93
0.54
3.54
2.76
0.78
4.31
3.36
0.95
4.77
3.71
1.05
WATERFLOW
RATE g/hr 300 320
340 500 520
Table 9
