BENSON JETSTREME 4+ - Technical Specifications

I

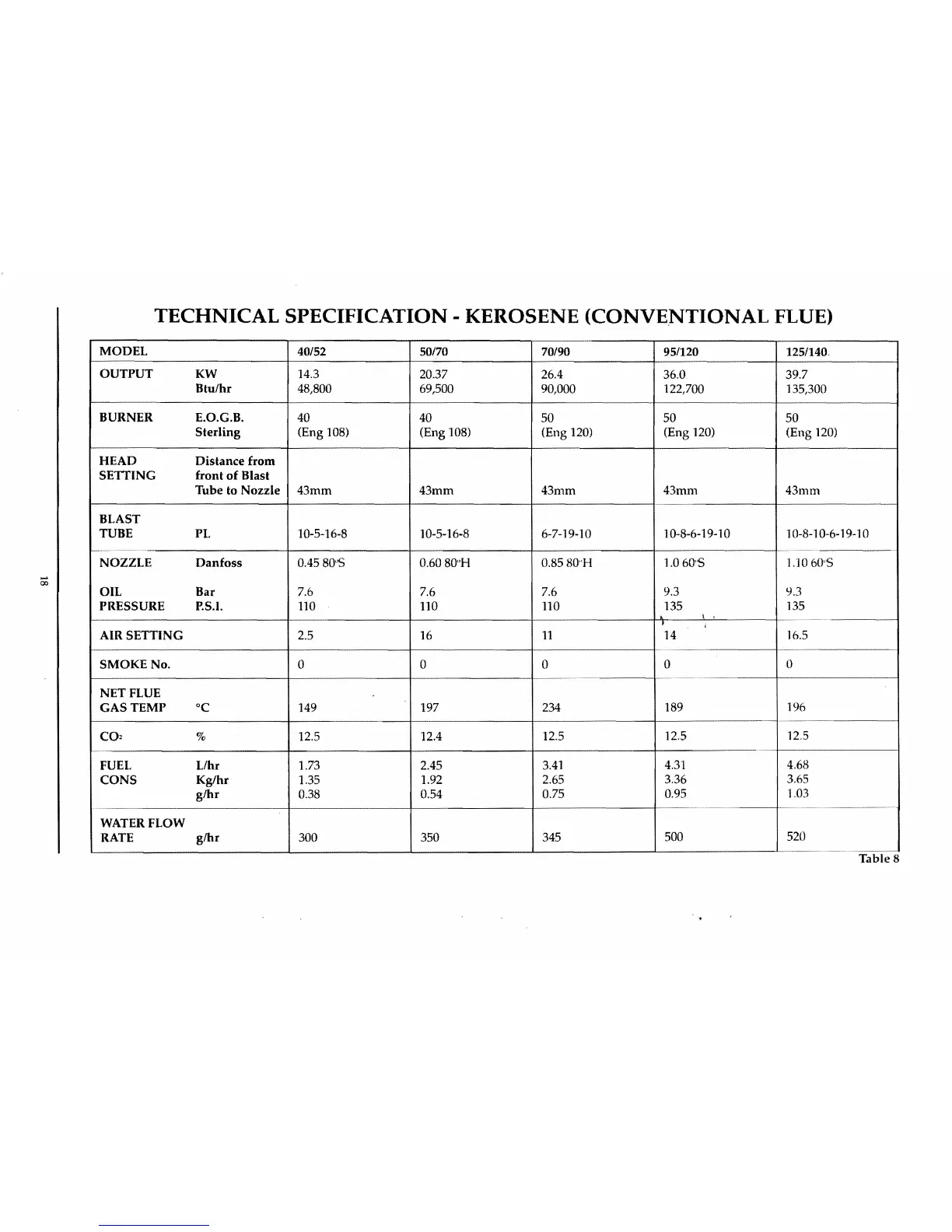

TECHNICAL SPECIFICATION - KEROSENE (CONVENTIONAL FLUE)
.....
(lQ
Table 8
MODEL
40/52 50/70 70/90
951120 1251140.
OUTPUT
KW 14.3
20.37
26.4 36.0 39.7
Btu/hr
48,800 69,500 90,000 122,700
135,300
BURNER
E.O.G.B. 40
40
50 50 50
Sterling
(Eng 108)
(Eng 108) (Eng 120)
(Eng 120)
(Eng 120)
HEAD Distance from
SETTING front of Blast
Tube to Nozzle 43mm
43mm
43mm 43mm 43mm
BLAST
TUBE PL 10-5-16-8 10-5-16-8 6-7-19-10
1 0-8-6-19-10 1 0-8-1 0-6-19-1 0
_ .....
NOZZLE
Danfoss 0.4580'S 0.6080'H 0.8580'H 1.0 60'S 1.10 60'S
OIL
Bar
7.6 7.6
7.6
9.3
9.3
PRESSURE P.S.!. 110 110 110 135 135
.....
\
,
,
._.
;
AIR SETTING 2.5 16 11
14 16.5
SMOKE No.
0
0 0 0
0
NET FLUE
GAS TEMP
°C 149
197 234
189
196
CO2 % 12.5
12.4
12.5 12.5
12.5
c ....
FUEL Llhr
1.73 2.45
3.41
4.31
4.68
CONS Kg/hr 1.35
1.92
2.65 3.36
3.65
g/hr
0.38
0.54
0.75
0.95
1.03
------- -------
WATERFLOW
RATE
glhr
300 350
345
500
520
