CAPACITY CHART ACCORDING TO
EN 676
TECHNICAL DATA
Type designation BG 400

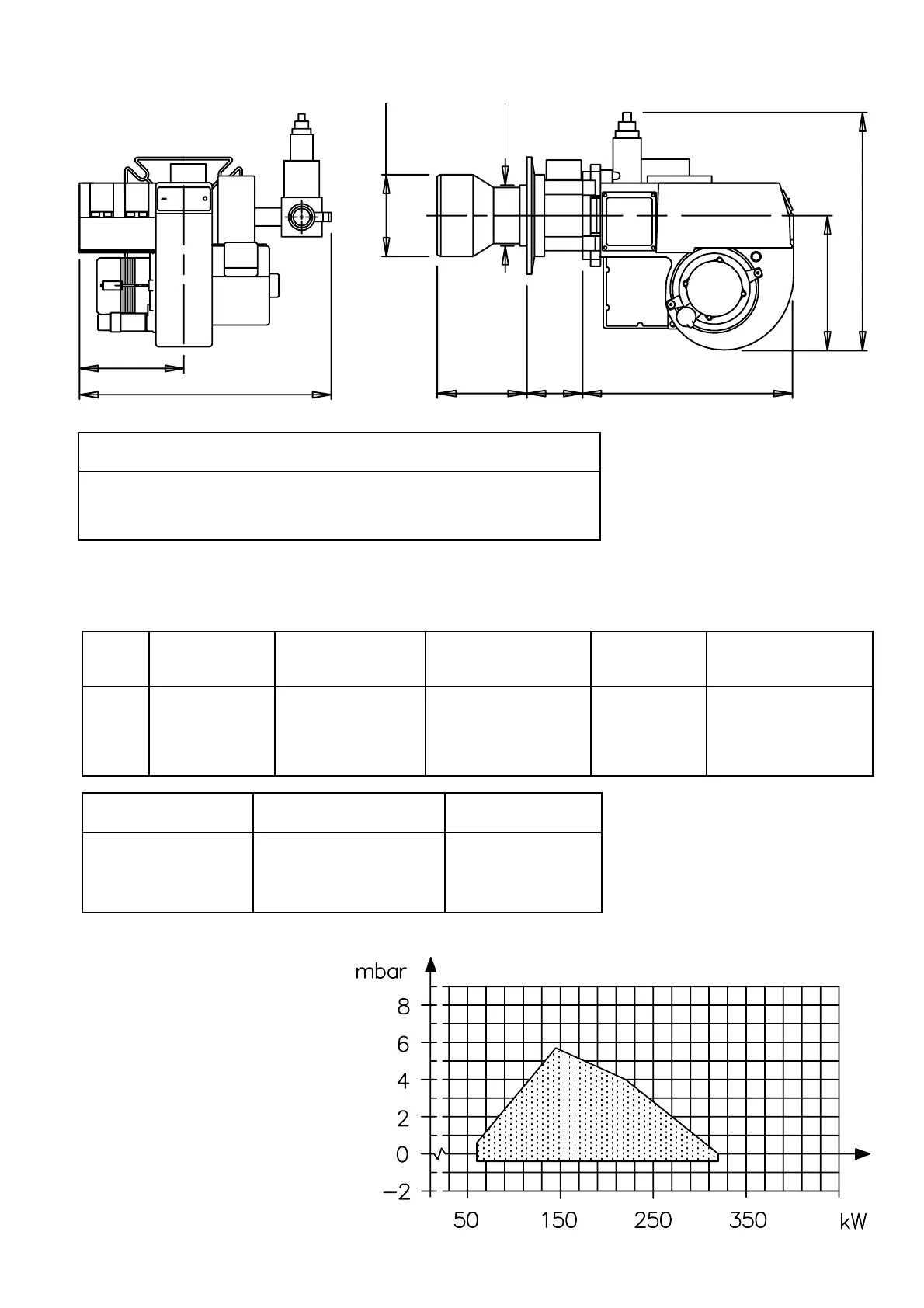

DIMENSIONS
ø108
Gas fittings
2
) Motor Ignition transformer
Natural gas/LPG 1-phase, 0,25 kW, Primary 230 V , 1 A
1" 2 800 r/m, 230 V Secondary 8 000 V
2
) Town gas
1
) Calorific value:
Natural gas 10kWh/Nm3
LPG 26 kWh/Nm3
2
) Dimension and capacity depen-
ding on gas quality and availa-
ble pressure
Type Capacity Gas volume at a min Gas volume at a max Max. Inlet Rated inlet pressures
kW output Nm
3
/h
1
) output Nm
3
/h
1
) tryck mbar mbar
Natural gas/LPG Natural gas LPG Natural gas LPG Natural gas LPG
400 60-318 6 2,3 31,8 12,2 100 20 20
(5,0 kg/h) (24,8 kg/h)
2
) Town gas
2
) Town gas
2
) Town gas
2
) Town gas
Lengt of burner tube Measure A
Standard 172 155
Long design 272 255
Town gas 172 155
The above dimensions are max. measurements. Depending on the
components used, the measurements may vary.
OUTPUT RANGE
172 215 14 00-02
195
506
100
505
250
410
A
ø140
