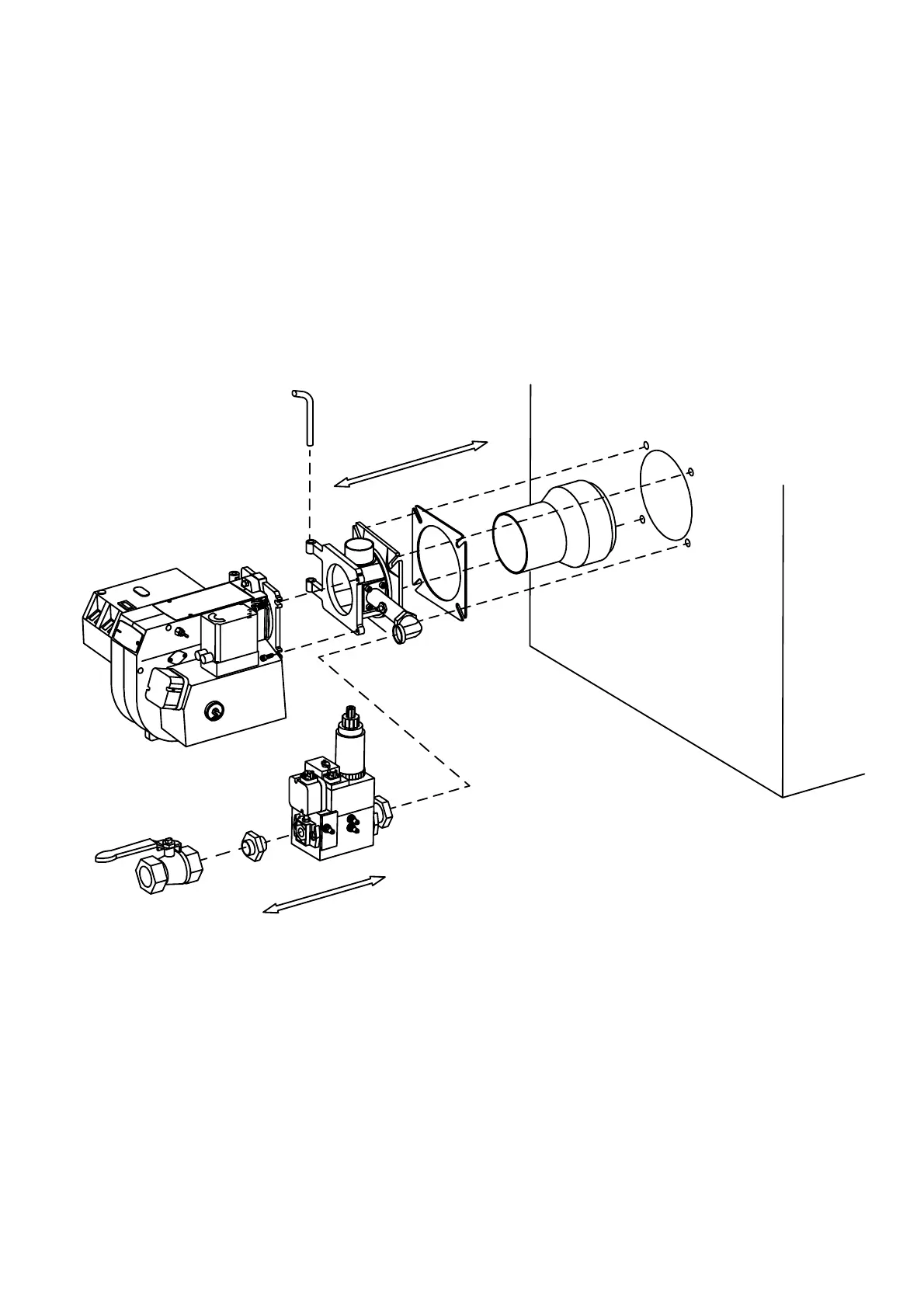

MOUNTING ON THE BOILER
REMOVAL OF FAN HOUSE UNIT
FROM BURNER.
Loosen the screws. Swing out the fan
house. Remove the ionisation and ig-
nition cables from the electrodes. Re-
move the bolt on the flange.
Remove the combustion unit from the
burner. Fit the enclosed flange and
gasket to the boiler.If new fixing holes
must be drilled, use the fixing flange
as a pattern.
REMOVAL OF VALVE UNIT FROM
BURNER
Remove the plug-in contact from the
multi-bloc. Loosen the union nut.
172 205 42 94-01
INSTALLATION EXAMPLE
Connect the gas to the burner by
means of the ball valve. Ensure that
the union nut, ball valve and tubing
make it easy to remove the burner for
inspection and service.
