bentrup TC 505 User Manual

25
Schutzleiter
220 V Phase
220 V Null
(Option)
(a)
(b)
(c)
(d)
(e)
(f)
(+)
(-)
Thermoelement
(g)
(h,n)
Schütz
"Heizen"
a...n: Anschlüsse für Regelanlage
6
5
4
1
2
3
7
HAN7Da
3
1
74
11
8
1412
a
b
c
12
3
45
CPC14aHAN15Da
We reserve the right to make any changes without notice
Operating Instructions TC505 V1.06 (C) 2001 bentrup industrial controls, inc., U.S.A.

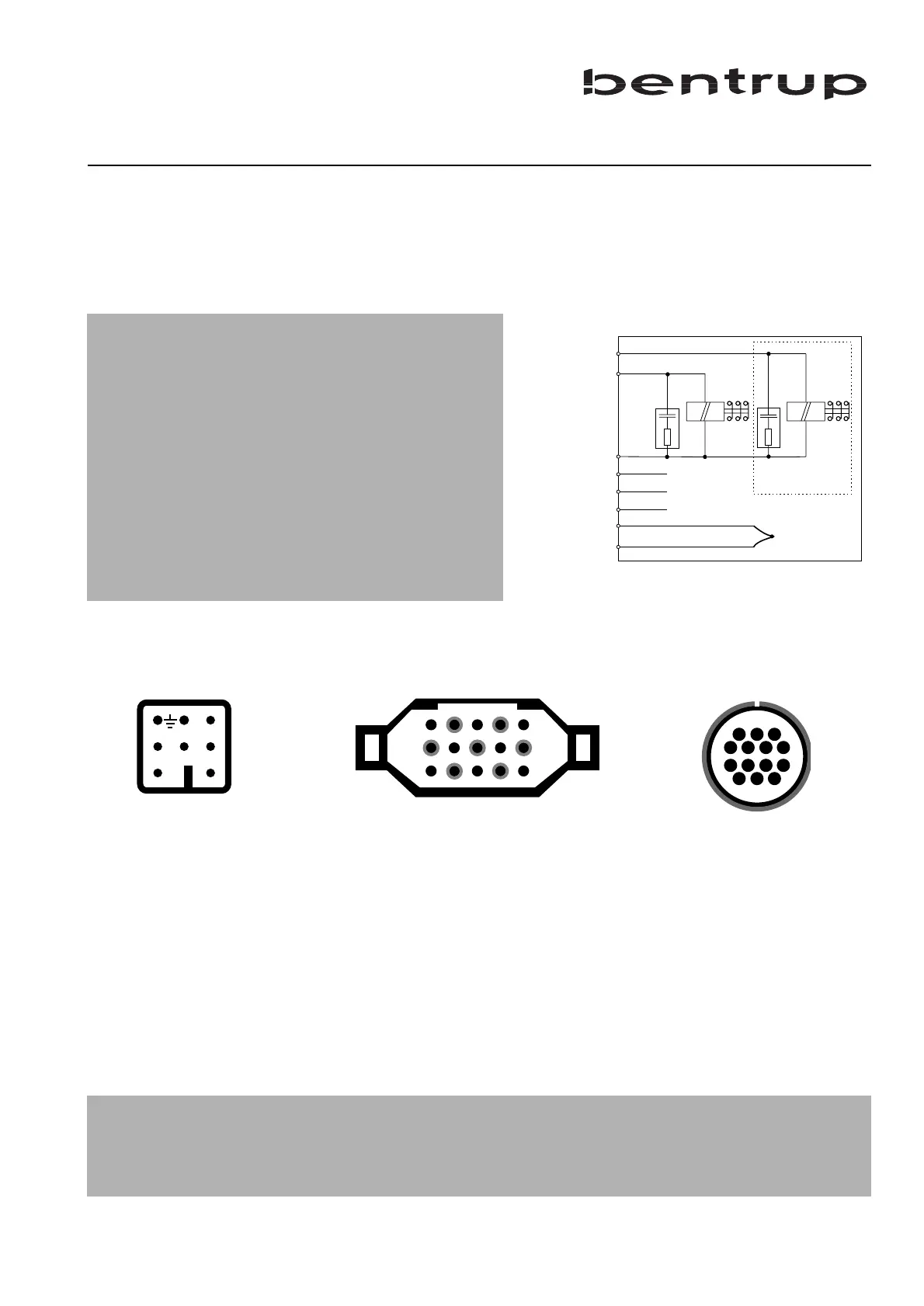

Simplified Schematic of a Kiln
Pin Assignements
Important Note: Please compare type of thermocouple used in the kiln with the controllers
thermocouple input marked on the back of the controller. Mismatch can cause severe damage
of kiln and contents !
pin no. function HAN7Da HAN15Da CPC14a
a additional control output 7 C3 12
b control output (live) 6 A3 14
c control output (neutral) 1 B3 13
d earth ground * earth clamp 11
e mains supply (live) 5 A1 8
f mains supply (neutral) 2 B1 9
g thermocouple + 3 B5 1
h thermocouple - (PtRh-Pt) 4 C5 2
n thermocouple - (NiCr-Ni) 4 A5 3
* earth ground must be connected!
Important Note
The specifications given are only an example.
The electrical connections are made to our
customers request and sometimes differ from
the specifications shown on this page.Please
double check the required information with the
files of your kiln manufacturer
All bentrup controllers for either more than 1
zone or more than 2 outputs are fitted with the
HAN15DX plug described on a seperate sheet.
Appendix F
Electrical Connections
