You can save up to 29 firing curves in your TC505 as
programmes. The programme numbers 1 to 6 are
factory set and cannot be altered. Please find the
values of these 6 programmes below:
The following example demonstrates how to call up
programme number 04 and to start the firing:

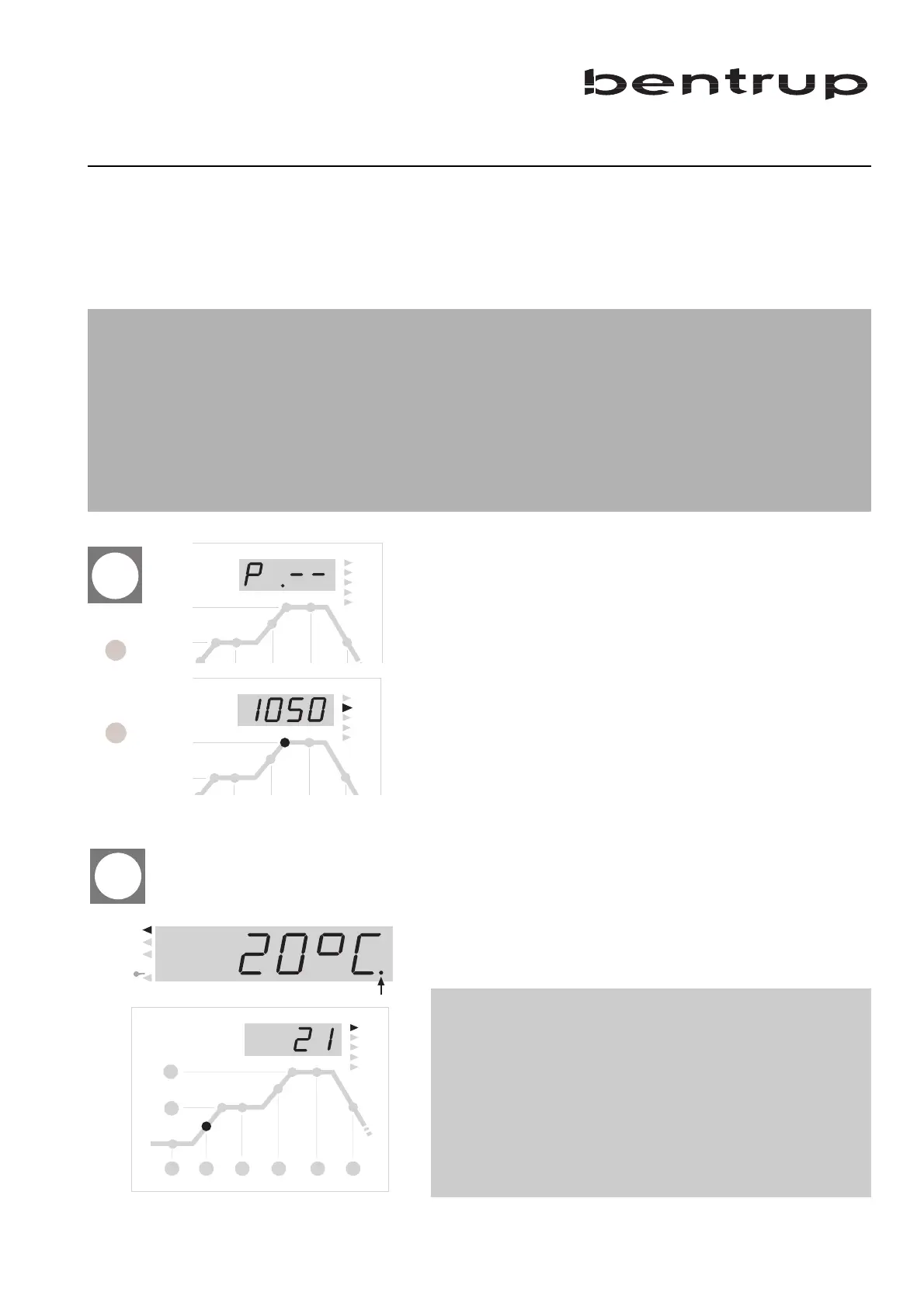

After turning on the TC505 display (14) is empty.
Pressing key (8) the controller display appears as
shown on the left.
Now enter „0“ and „4“ on the keypad (19). Note that
the programme number must always be entered as a 2
digit number. The TC505 prompts entering a valid
programme number by showing the maximum tempe-
rature of the selected programme on display (14).
Press key (20) to start the firing. From now on the
current segment of the firing lights up in the firing
curve (15). Display (14) reads the current setpoint,
display (12) the temperature inside the kiln.
5
Calling up a Programme
prog # t0 (min) rmp1(°C/h) tmp.1 (°C) t1(min) rmp2(°C/h) tmp.2 (°C) t2(min) rmp3 (°C/h)
01 0 30 150 10 skip 150 10 skip
02 0 100 600 0 skip 800 10 skip
03 0 100 550 0 skip 900 10 skip
04 0 180 400 0 skip 1050 30 skip
05 0 180 400 0 skip 1180 30 skip
06 0 180 400 0 skip 1250 30 skip
Note
The flashing decimal point on the right hand side of
display (12) always indicates a running programme.
If a programme value (rather than a setpoint) is
shown in display (14) the corresponding section of
firing curve (15) is flashing.
