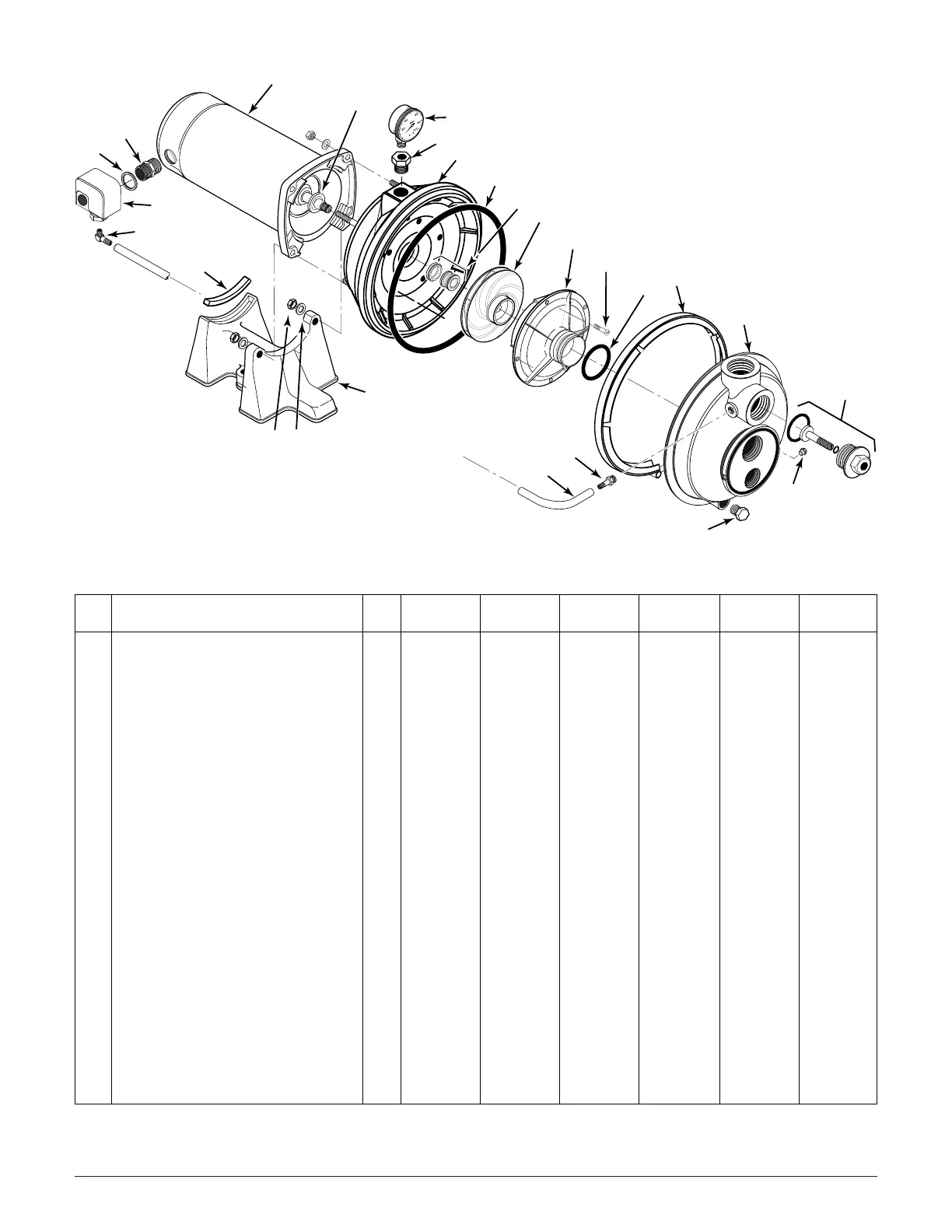

REPLACEMENT PARTS LIST
* Standard hardware item, purchase locally.
• Not shown and not included. Order separately.
** Not illustrated.
Key
No. Description Qty. 3PL 5PL 7PL 10PL 10PLS11C 15PLS11C
1 Motor 1 A100BHL A100CHL A100DHL A100EHL A100ELL A100FLL
2Water slinger 1 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009
3 Pressure gauge 1 U239-3 U239-3 U239-3 U239-3 U239-3 U239-3
4 1/2 x 1/8” NPT Reducer bushing 1 U78-107PT U78-107PT U78-107PT U78-107PT U78-107PT U78-107PT
5 Pump body, back half 1 L176-47P L176-47P L176-47P L176-47P L176-47P L176-47P
6 O-ring 1 U9-399 U9-399 U9-399 U9-399 U9-399 U9-399
7 Shaft seal 1 U109-6A U109-6A U109-6A U109-6A U109-6A U109-6A
8 Impeller 1 J105-40PE J105-42PT J105-8PAN J105-22PA J105-8PAN J105-22PA
9 Diffuser 1 J1-39P J1-39P J1-40P J1-40PA J1-40P J1-40PA
** Lockwasher 5 U43-21SS U43-21SS U43-21SS U43-21SS U43-21SS U43-21SS
10 #8 - 32 x 7/8” lg. Screw, S.S. 5 * * * * * *
11 Diffuser O-ring 1 U9-199 U9-199 U9-199 U9-199 U9-199 U9-199
12 Pump body clamp 1 C19-54SS C19-54SS C19-54SS C19-54SS C19-54SS C19-54SS
13 Pump body, front half 1 L76-37P L76-37P L76-37P L76-37P L76-37P L76-37P
14 Control valve 1 L162-10PS L162-10PS L162-10PS L162-10PS L162-10PS L162-10PS
15 1/8” NPT Pipe plug 1 * * * * * *
16 1/4” NPT Pipe plug 1 * * * * * *
17 1/4” NPT straight barbed fitting 1 * * * * * *
18 Switch tube 1 U37-671P U37-671P U37-671P U37-671P U37-671P U37-671P
19 Base 1 C4-42P C4-42P C4-42P C4-42P C4-42P C4-42P
20 5/16” Washer, S.S. 4 * * * * * *
21 5/16” - 18 Hex head nut, S.S. 4 * * * * * *
22 Motor pad 1 C35-11 C35-11 C35-11 C35-11 C35-11 C35-11
23 1/4” NPT Elbow barbed fitting 1 * * * * * *
24 Pressure switch 1 U217-1216 U217-1216 U217-1216 U217-1217 U217-1216 U217-1217
25 1/2” Locknut 1 * * * * * *
26 Connector 1 L43-5C L43-5C L43-5C L43-5C L43-5C L43-5C
•Ejector Kit – Shallow well 1 BK4875 BK4875 BK4875 BK4875 BK4875 BK4875
• Ejector Kit – Deep well (4” dia. well) 1 BK4800 BK4800 BK4800 BK4800 BK4800 BK4800
• Ejector Kit – Deep well (2” single pipe well) 1 BK4840 BK4840 BK4840 BK4840 BK4840 BK4840
MODELS
3PL, 5PL, 7PL, 10PL,
10PLS11C, 15PLS11C
