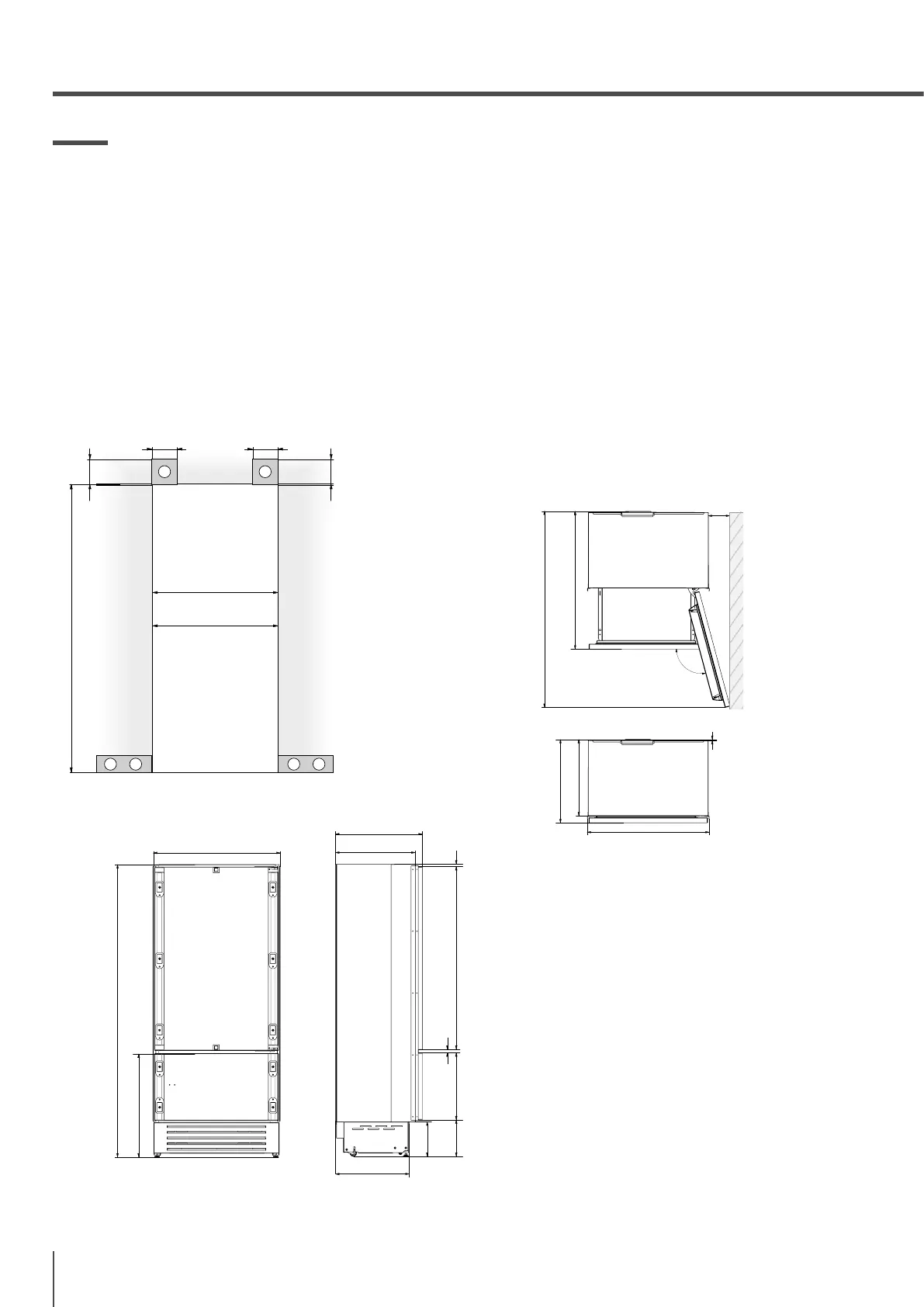

2.2 Installation niche features:
Integrated Series
A - area to be left clear for the anti-tipping brackets
Niche Height
2064 mm (81 1/4”)
Niche Width
900 mm (35 1/2”)
750 mm (29 5/8”)
2. TECHNICAL REQUIREMENTS
Door Swing Clearance
1470 mm (57 7/8”)
1320 mm (52”)
Door Opening Angle
105°
Width
899 mm (35 3/8”)
749 mm (29 1/2”)
Height
2050 mm (80 3/4”) + 25 mm (1”)
Depth with door (without panel)
610 mm (24”)
Français
610 (24”)
)” 22( 065
1293 (50 ⅞” )
474
(18 ⅝”)
231 (9
⅛”
) +
25 (1”)
248 (9
¾”
)
+ 25 (1”)
20 (¾”)
15 (⅝”)
721 (28 ⅜”) +25 (1”)
2050 (80 ¾”) +25 (1”)
0T
A A
E W E W
140 (5 ½”) 140 (5 ½”)
100 (4”) 100 (4”)
min 2064 (81 ¼”)
90: 900 (35 ½”)
75: 750 (29 ⅝”)
500 (19 )
¾”
560 (22”)
610 (24”)
90: 899 (35 3/8”)
75: 749 (29 1/2”)
10 (⅜”)
105°
992 (39”)
90: 1470 (57 7/8”) 75: 1320 (52”)
90: 160 (6 1/4”)
75: 125 (5”)
