5.2 Built-in installation of two or more
appliances
Required accessories to be ordered separately:
Central connection Kit
Each appliance comes with its own set of side profi-
le trim covers for where the appliance connects to the
niche side walls. In side-by-side configurations only 1
side profile trim cover will be needed from each set.
Where the two appliances connect together will be co-
vered with a central connection trim cover provided in
the connection kit accessory.
Operate as follows:
>

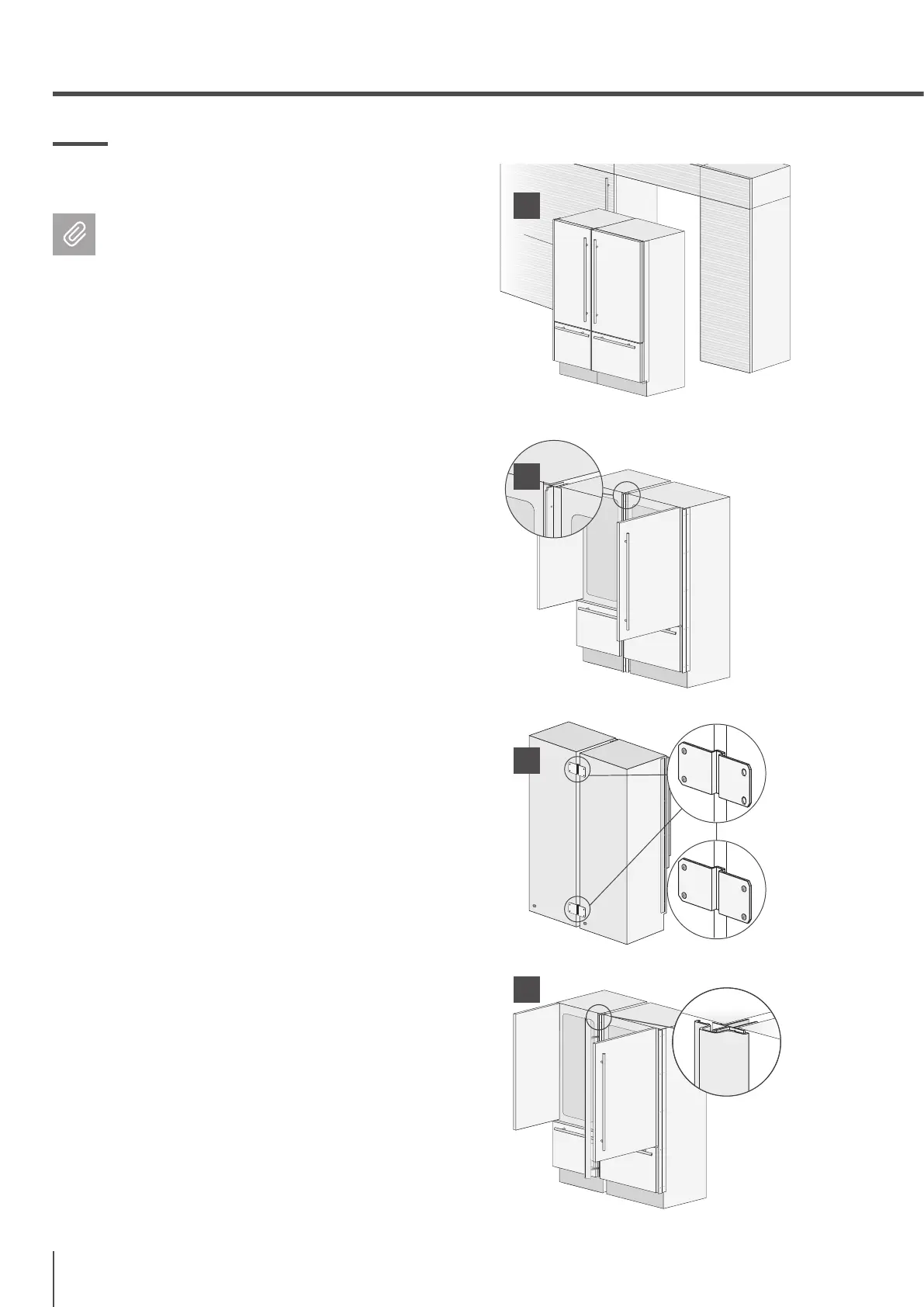

Position the appliances in front of the installation
area, leaving enugh space to operate at their back [ 1 ].
> Place the two units side by side, level them with re-
spect to each other by aligning the screw holes in the
side profile trims and then join them at the front either
using pop rivets (supplied with central con-nection kit)
or with 1/4” length #6 screws (not supplied) [ 2 ].
> At the back of the appliances mount the connection
brackets: fix one side of the top and lower brackets
to one of the appliances and subsequently to the
other [ 3 ].
> Once units are fully installed snap the central cover
frame onto the central connection pro les by firmly
pressing toward the front of the appliance until it
clicks [ 4 ].
5. INSTALLATION
Note
Top ventilation caps not shown in illustrations
4
3
1
2
