11
/ Installation requirements / Electrical connection
FOUR-WIRE CONN.RECEPTACLE NEMA 14-50R
Check your local code for which of the options be-
low should be used in grounding the receptacle
power supply connections.
FOUR Wires connection:
-Connect the L1 receptacle terminal to the inco-
ming BLACK electrical supply wire (L1-hot wire)
-Connect the L2 receptacle terminal to the inco-
ming RED electrical supply wire (L2-hot wire)
-Connect the NEUTRAL receptacle terminal to
the incoming NEUTRAL (WHITE) electrical sup-
ply wire
-Connect the GROUND receptacle terminal to the
incoming GROUND (GREEN) electrical supply
wire

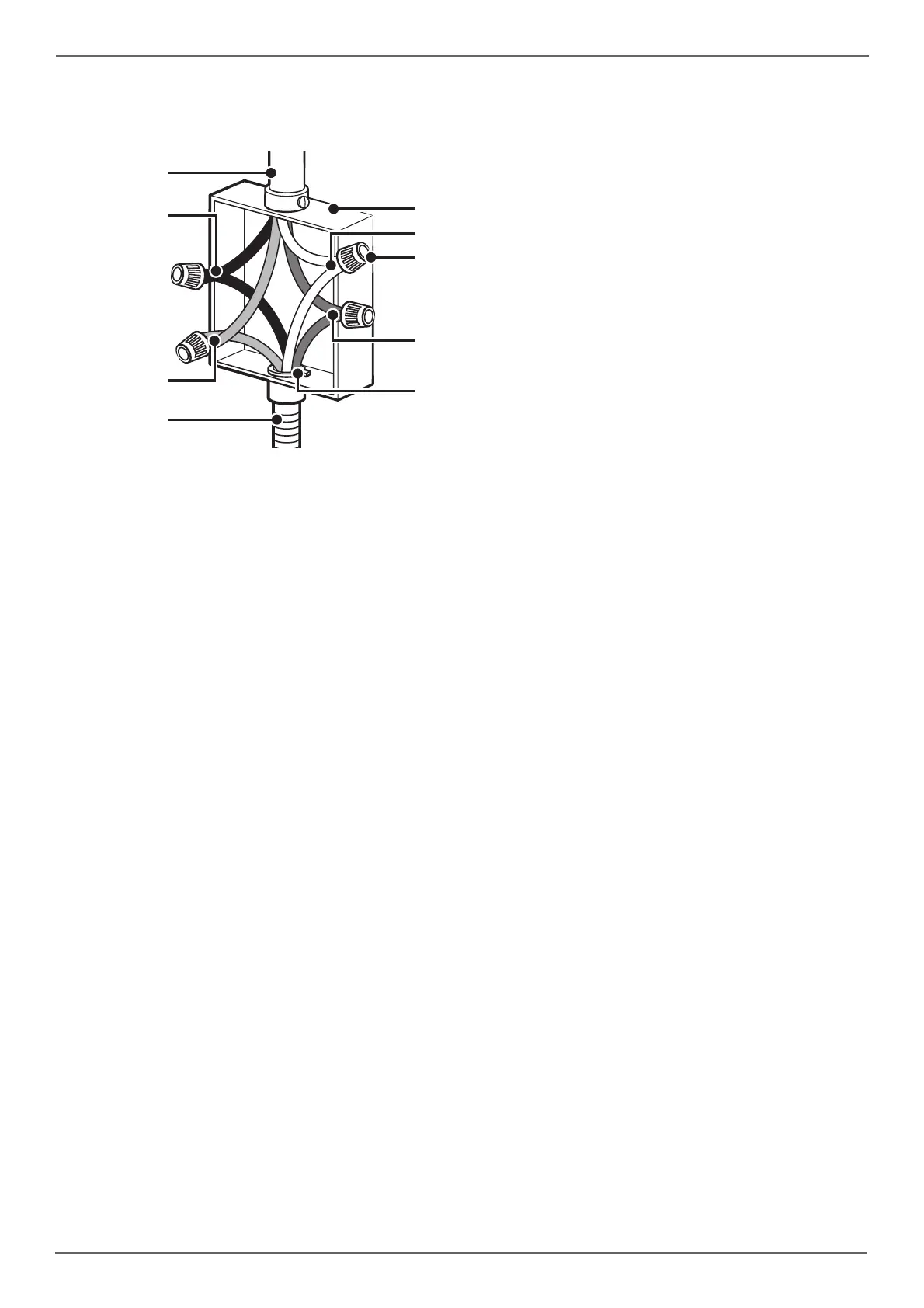

Power supply
Junction box
Black wires
UL-listed wire connectors
Red wires
UL or CSA listed connector
Green wires
Flexible metal
conduit from oven
White wires
