Category
REF18FCBIPRV /
REF18FCBIPLV
REF24FCBIPNV REF24RCBPNV REF30RCBPNV
A 20” (508) 26” (660) 26” (660) 32” (813)
B 4 ⅜” (110) 4 ⅜” (110) 4 ⅜” (110) 4 ⅜” (110)
C 11” (280) 14” (356) 14” (356) 16” (406)

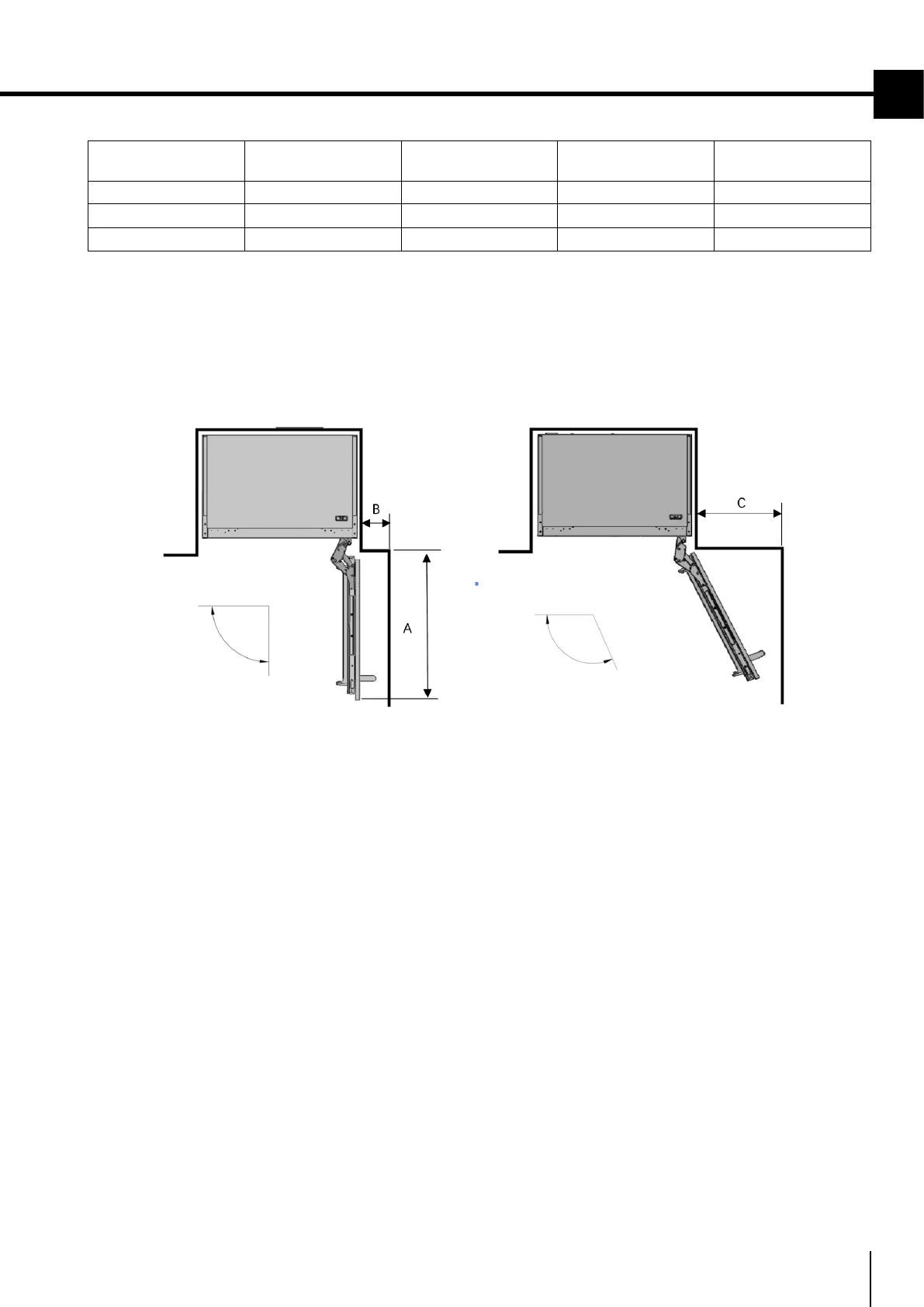

A : Door depth (90°)
B : Minimum door clearance to adjacent wall ( 90°- reduced internal access)
C : Minimum door clearance to adjacent wall ( 115°- full internal access)
115° door swing
90° door swing
Wall
Wall
