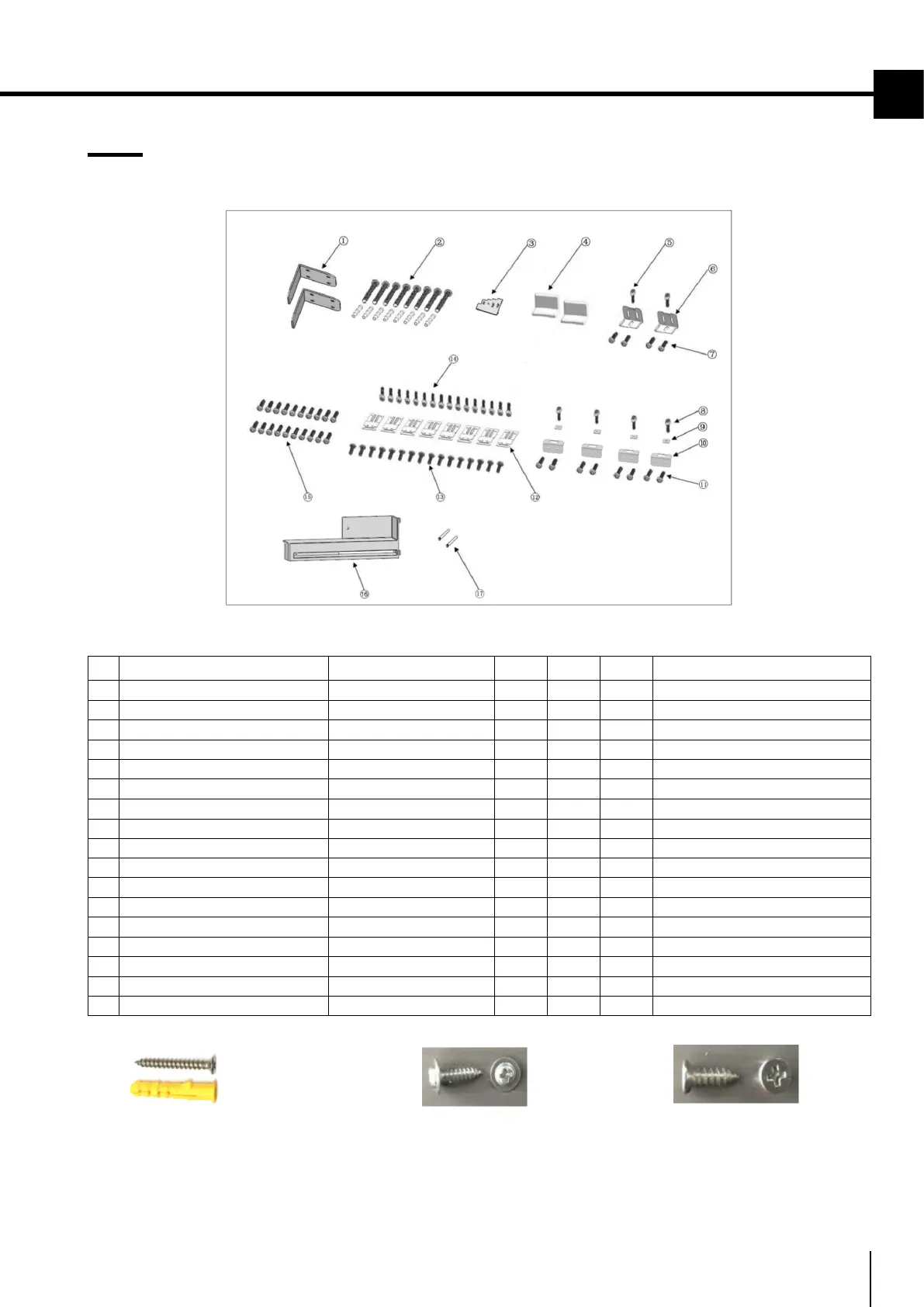

2.14 Removing the Installation Hardware
No Part name Spec 18 24 30 Remark
1 Anti-tip bracket T4.0, Cr+zn-coating 8 8 8
2
Anti tip bracket screws and dowels M8*L60 8 8 8
3
Position adjustment jig PS 1 1 1
4
Cover furniture door bracket abs - 2 2
5
Truss washer head M4*12 - 2 2
6
Bracket furniture door T1.0, Cr+zn-coating - 2 2
7
Counter sunk head screw ST4x14 - 4 4
8
Truss washer head M4*12 4 4 4
9
Square washer T1.0, Cr+zn-coating 4 4 4
10 Center mounting bracket T1.0, Cr+zn-coating 4 4 4
11 Counter sunk head screw ST4x14 8 8 8
12 Bracket furniture T1.0, Cr+zn-coating 8 8 8
13 Counter sunk head screw ST M4x14 16 16 16
14
Truss washer head M4*12 16 16 16
15 Counter sunk head screw
ST M4x14 16 20 20 Furniture door hanger bracket
16 Air vent hinge part
ABS - 1 1 Door opening direction change
17 90°limit pin Ø4
2 2 2 Door 90°opening use
anti tip bracket screws
dowels
Truss washer head screw
Spec : M4x12
Fixing Refrigerator
Such as cabinet and door
(press part)
Counter sunk head screw
Spec : ST M4x14
Fixing the cabin and
furniture door
(wood part)
