NOTE:
The lower grill can be adjusted forward
or backward of 15/16" (24 mm) to
accommodate the cabinet toe kick. Also, a
piece of decorative cabinet toe kick material
can be axed to the lower grill to match the
cabinets, provided there is no obstruction
to vent grills and air flow.
WARNING:
If installing a one-piece cabinet toe kick
across the front of the fridge, you must
ensure proper air flow and no obstruction
to the vent grills.

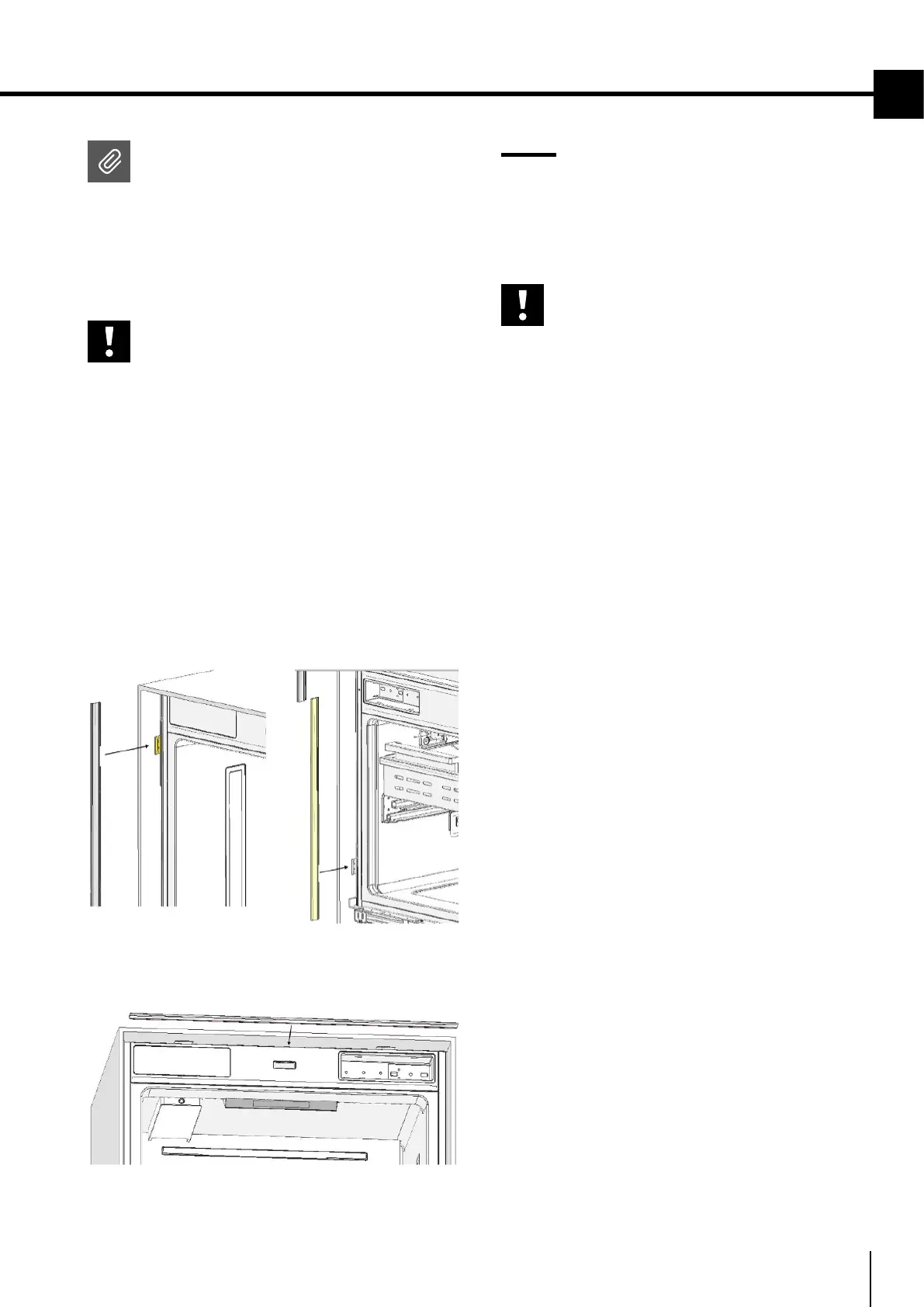

ATTACHING THE DECORATIVE TRIM COVERS
• The decorative side trim is a soft plastic material
with a barbed end intended to be inserted
between the cabinet gable and the appliance
body (#2), onto the right/left connection brackets.
Some trimming may be required to ensure the
trim pieces can fit around the brackets; the
thickness of the barbed end may also require
trimming depending on the width of the gap
between the side body and the cabinet gable.
• Push in the finished trim (#1) on the upper
connection bracket.
3.5 Overlay Panel Installation and
Preparation
This section contains information about preparing
the cabinet doors and mounting them on the
product.
WARNING:
Maximum weights of the panels to be
mounted on the unit are as follows:
Refrigerator Column Door: 66 lbs (30 kg)
Freezer Column Door: 66 lbs (30 kg)
