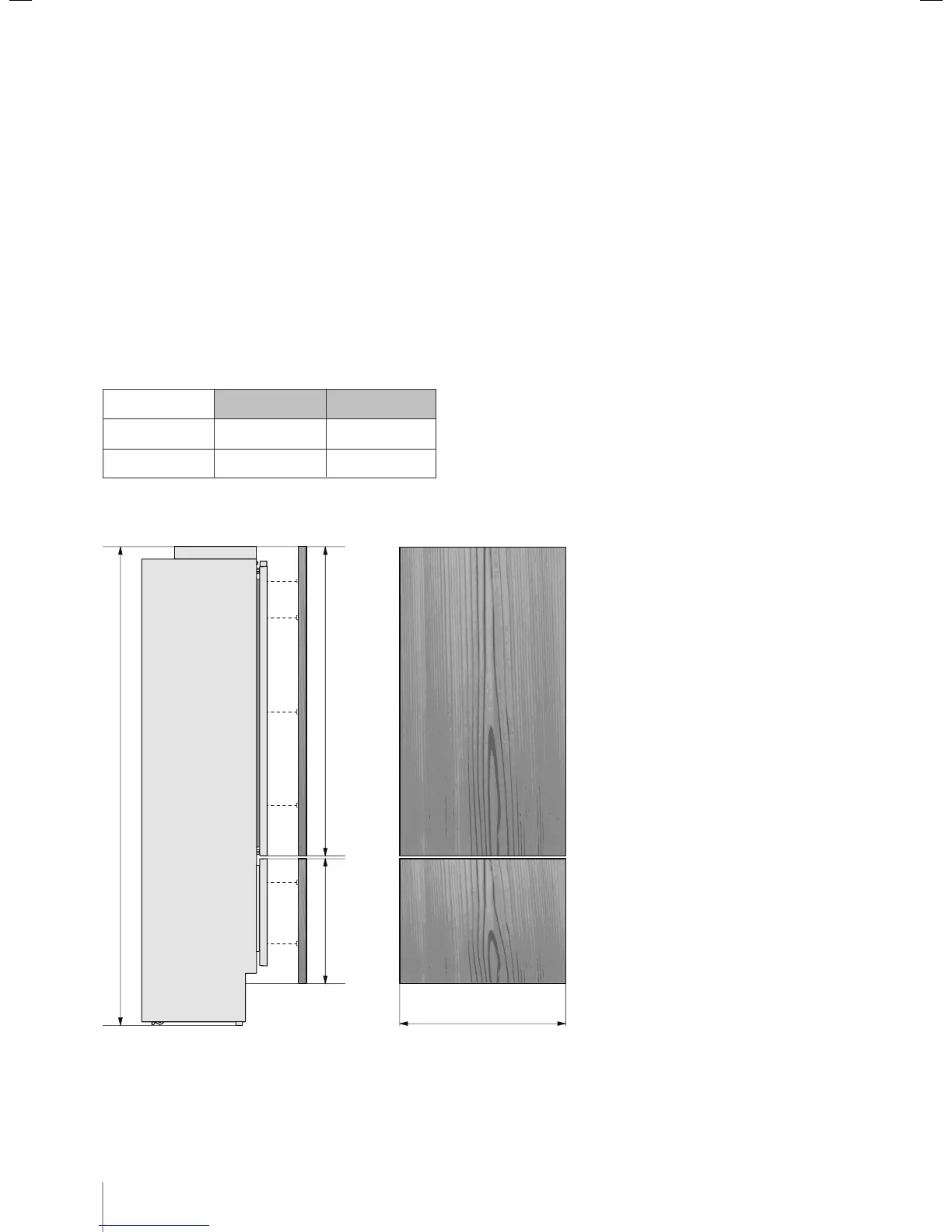

Bertazzoni REF30PIXL - Panels Dimensions

14
2121 (83
½
") + 25 (1")
min 540 (21 ¼”)
max 635 (25”)
A
B
3 (1⁄8”)
1390 (54 ¾”)
115 (4 ½”)
min 200 (7 7⁄8”)
135
(5 3⁄8”)
135
(5 3⁄8”)
1075 (42 3⁄8”)
900 (35 1/2”)
750 (29 5/8”)
BI36
BI30
897 (35 1/4”)
747 (29 3/8”)
Series: Integrated (BI)
Door/Drawer Width Niche Width
Series
Panels Dimensions
Panels can have thickness ranging between 18 mm (3/4”) and 28 mm (1-1/8“).
Door panels can have a maximum weight 23 kg (51 lbs) and drawer panels may be a maximum weight of 11kg (25 lbs)
Exceeding these weights could void your warranty for any service issues which can be attributed to overweight panels.
The hinging mechanism on appliances is considered to be `Zero-clearance`. The door and drawer widths specified below
assume the minimum niche width is being used and a 3.5mm (1/8”) reveal is desired around the panels. Adjust your panel
dimensions accordingly to your own design criteria considering your niche width and your reveal. Minimum reveal / gap
should not be less than 1.5mm (1/16”).
Example:
84” niche height
36” niche width
4” toe kick height
1/8” gap desired all around
Door panel:
Width: 35-3/4”
Height: 54-3/4”
Drawer panel:
Width: 35-3/4”
Height: 84”-1/8”-54-3/4”-1/8”-4”=25”
If you want a 6” toe kick height then your
bottom drawer panel height would be 23”
