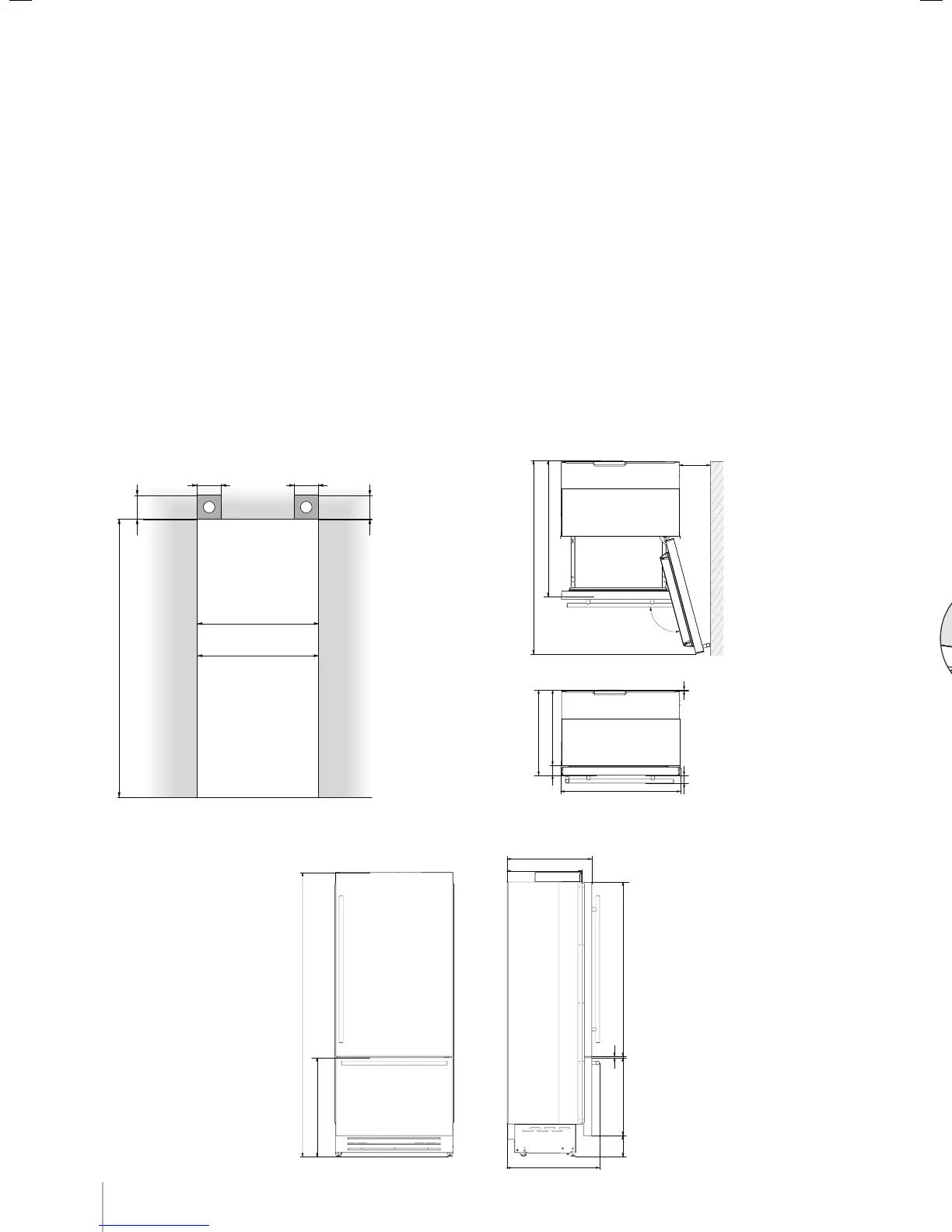

Installation niche requirements: Stainless Integrated Series (BKI)
area to be left clear for the anti-tipping brackets
Niche Height
Niche Width
Door Swing Clearance
Door Opening Angle
Width
Height
Depth with door (without panel)
