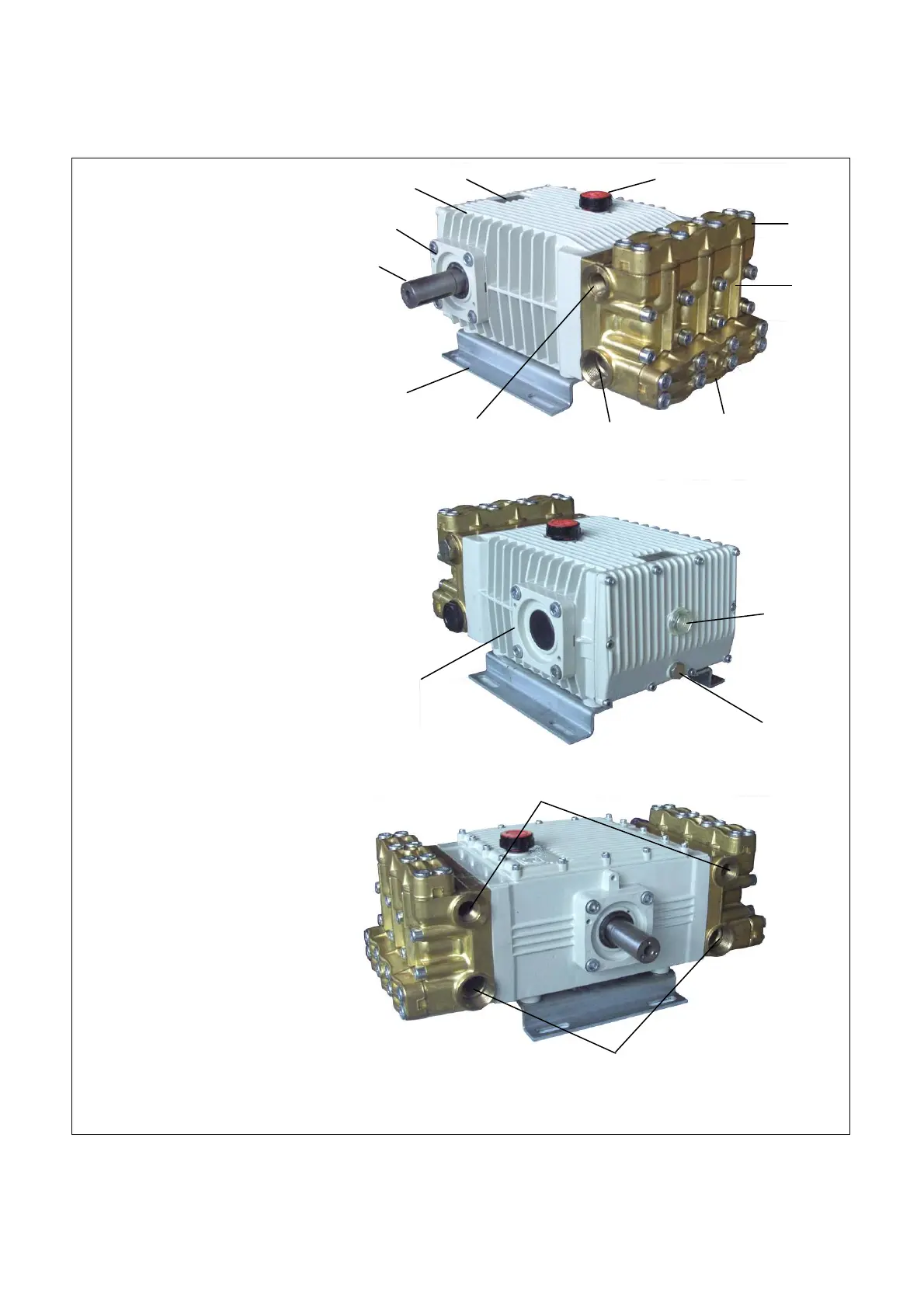

3.1. IDENTIFICATION OF COMPONENTS
CK 3003-CA 316-CPQ
1. Identification
label
2. Oil filling plug with
dipstick
3. Pump shaft
4. Outlet
5. Inlet
6. Inlet valve cover
7. Outlet valve cover
8. Pump head
9. Crankcase
10. Mounting brackets
11. Bearing supports
12. Oil drain plug
13. Oil level plug
C 3006
The oil drain plug is on
the shaft opposite side
