10.5 Shaft oil seals Service
Disassembly:
STEP 1:
Using a hammer, insert a flat edge screwdriver into the
metal structure of the oil seals (picture 4).
STEP 2:
Take out the oil seal as indicated in the picture number 5
Reassembly:
Insert the new oil seal into the proper tool (picture 6) and
install it on its housing, using a hammer (picture 7).
Caution: don’t try to mount the oil seals without
using the proper tool (see table at page nr.29), be-
cause the grooves or the keyway on the shaft would
surely damage the sailing lip.

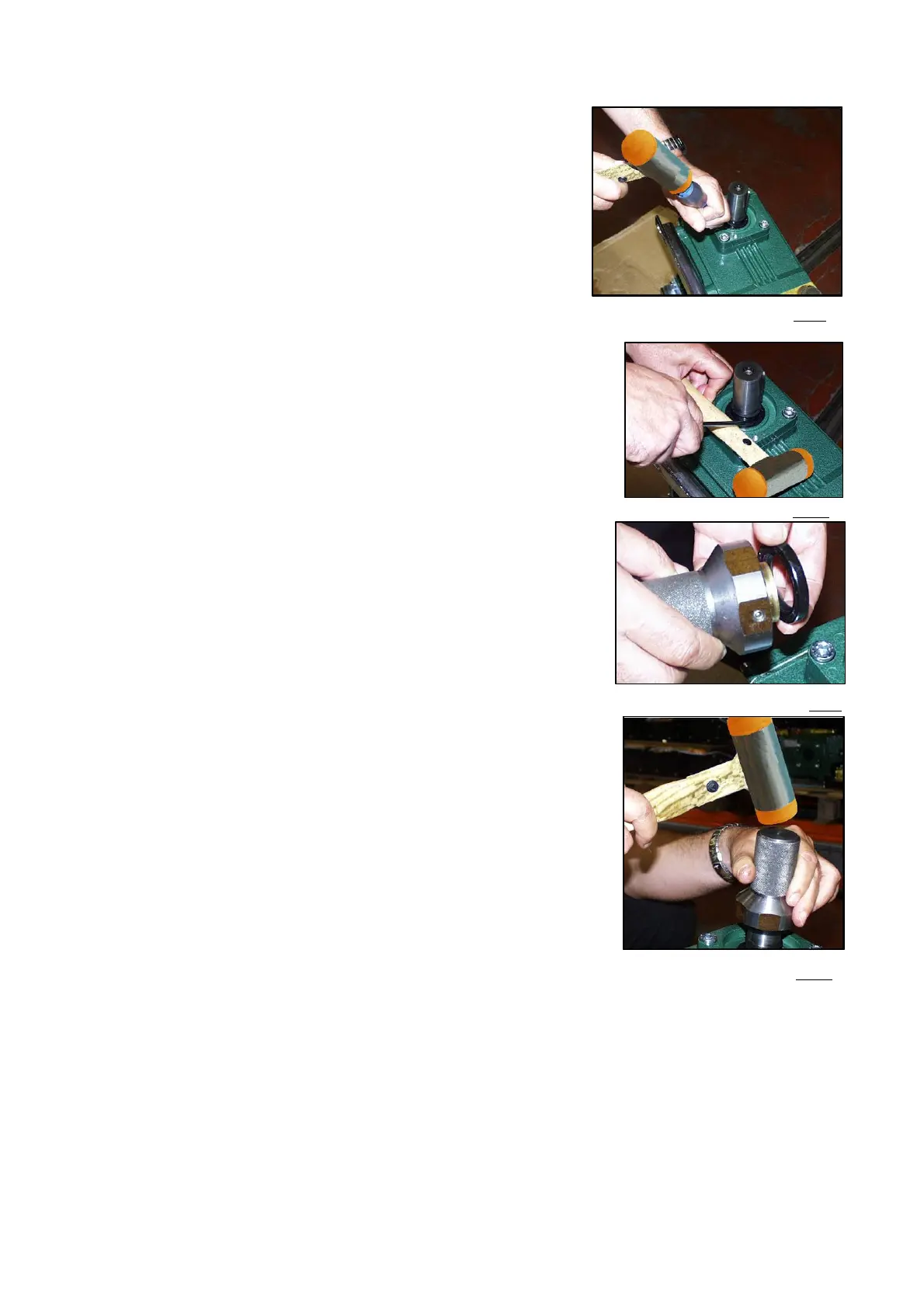

Fig. 4
Fig. 6
Fig. 5
Fig. 7
