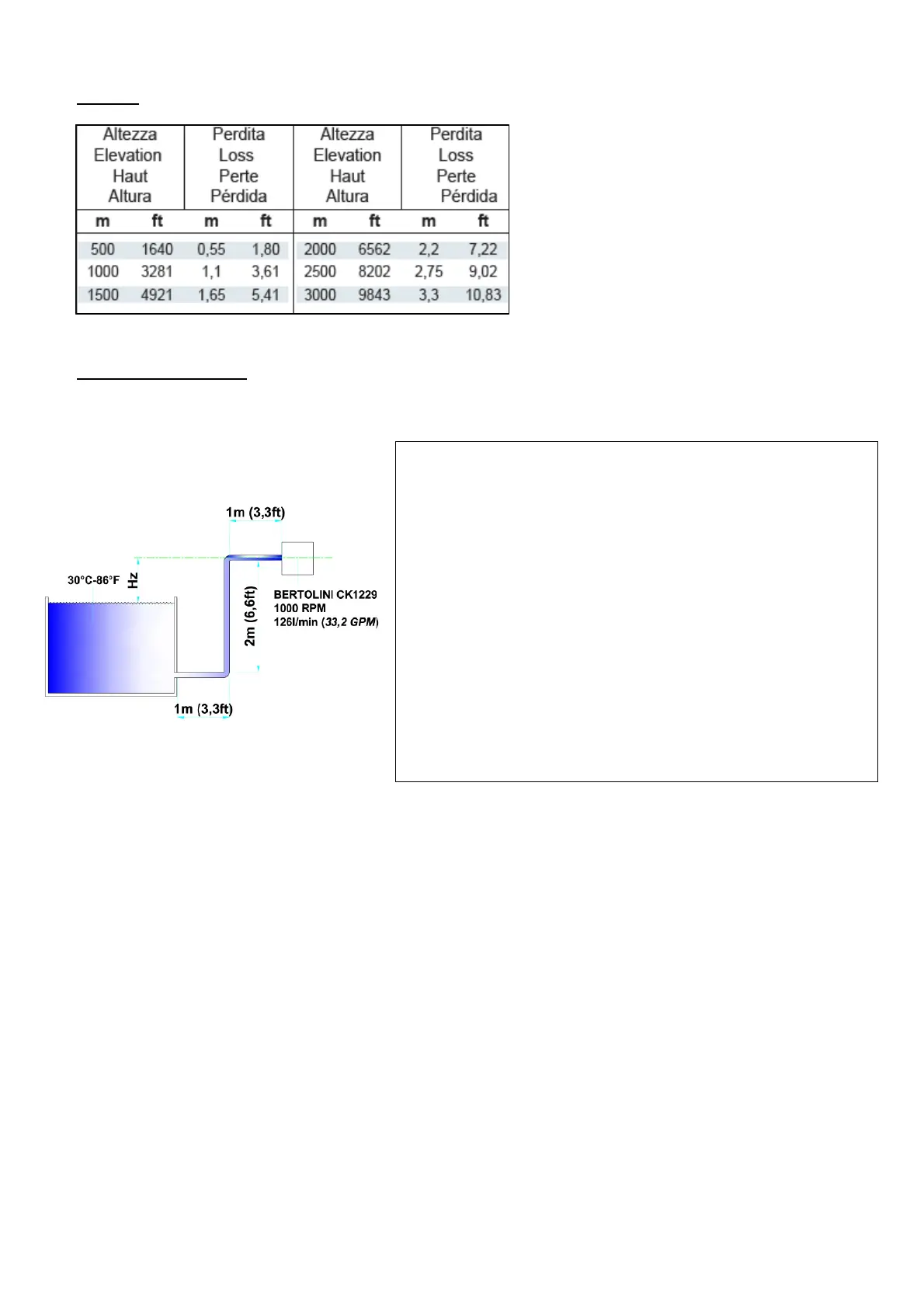

Table 5 Loss depending on elevation above see level
CALCULATION DATA
Calculation example for pump CK 1229 installed 500 m above see level
The calculation show that the pump can suck from 0,72 m (2,34 ft) height. If Hz would be
positive, the pump should bee feed under pressure.
Pipe length (drawing) 1+1+2= 4,00 m
3,3+6,6+3,3= 13,20 ft
Equivalent length of 2X1,13= 2,26 m
fittings (table2)
2X3,7= 7,40 ft
Total length 6,26 m
20,60
ft
H1 (tab.3) 2,5X6,26/10= 1,57 m
2,5X20,6/10= 5,15 ft
H2 (tab.4) 30°C 0,40 m
86°F 1,31 ft
H3 (tab.5) 500m 0,55 m
1640ft 1,80 ft
NPHSr (tab1) RPM 1000 6,60 m
RPM 1000 21,65 ft
Hz>(6,8+0,5)+1,57+0,4-(10,33-0,55)=
-0,72 m
Hz>(22,3+1,65)+5,15+1,31-(33,9-1,8)=
-2,34 ft
Pipes and fitting dimensions: G1” 1/4
