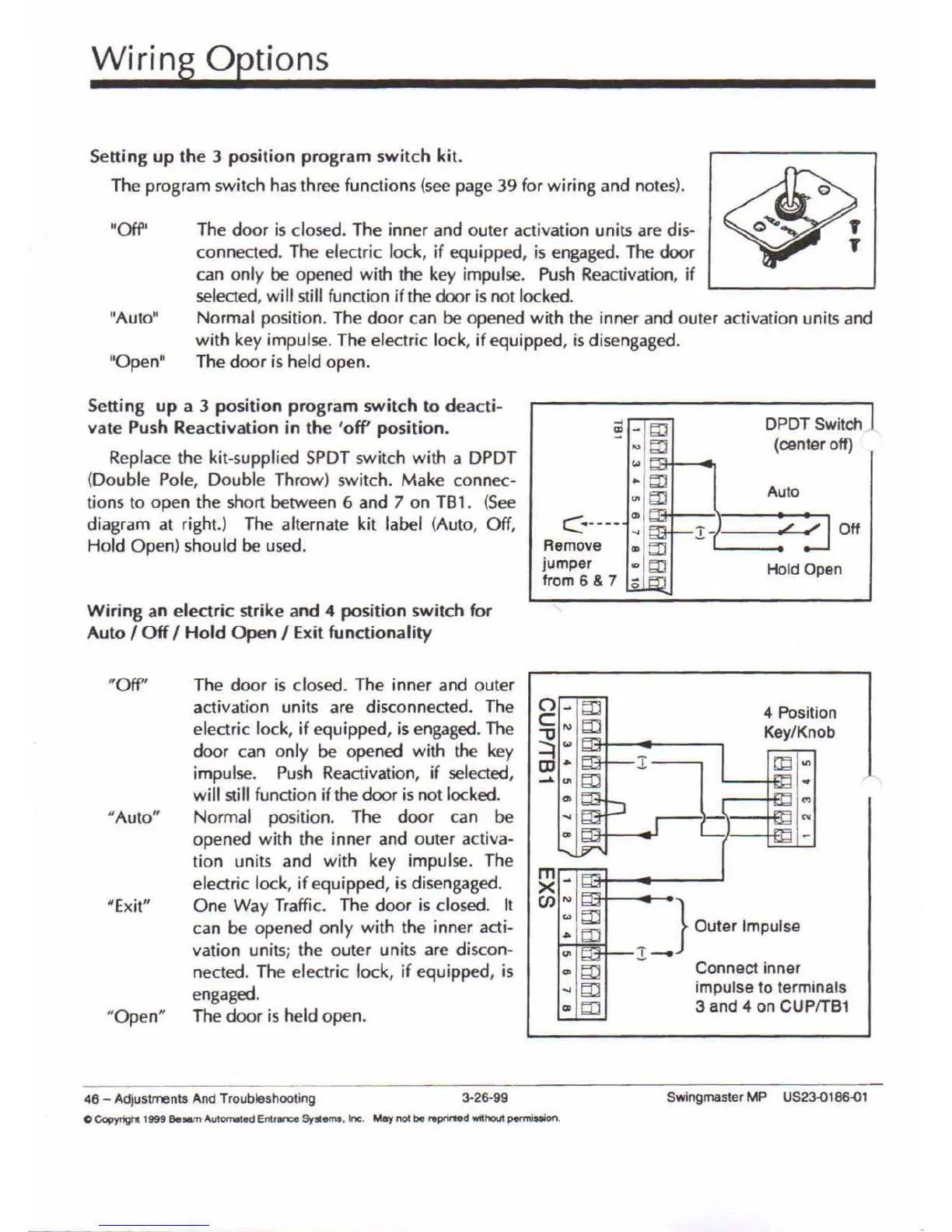

Wiring 0p.ti.o.n.s _
Sening up the 3 position program switch kit.
The program switch has three functions (see page 39 for wiring and notes).
"Ofr'
lIAuto"
"Open"
The door is closed. The inner and outer activation units are dis-
connected. The electric lock, if equipped, is engaged. The door
can only be opened with the key impulse. Push Reactivation, if
selected, will still function ifthe door is not locked.
Normal position. The door can be opened with the inner and outer activation units and
with key impulse. The electric lock, ifequipped, is disengaged.
The door is held open.
Sening up a 3 position program switch to deacti-
vate Push Reactivation in the 'off position.
Replace the kit-supplied SPDT switch with a DPDT
(Double Pole, Double Throw) switch. Make connec-
tions to open the short between 6 and 7 on TB1. (See
diagram at right.) The alternate kit label (Auto, Off,
Hold Open) should be used.
Wiring an electric strike and 4 position switch for
Auto I Off I Hold Open I Exit functionality
~-b::1
DPDTSwitch,
"'b::1
(center off)
•••
"bD
Auto
~1::l:I
C.----
00
...
1-
,;"w"
Off
Remove
oobD
jumper
~m
HoldOpen
Irom6&7 ;;
"
_ } Outer Impulse
.1.-
Connect inner
impulse to terminals
3 and 4 on CUPITB1
"Off"
#Auto"
"Exit"
"Open"
The door is closed. The inner and outer
activation units are disconnected. The
electric lock, if equipped, is engaged. The
door can only be opened with the key
impulse. Push Reactivation, if selected,
will stillfunction ifthe door is not locked.
Normal position. The door can be
opened with the inner and outer activa-
tion units and with key impulse. The
electric lock, if equipped, is disengaged.
One Way Traffic. The door is closed. It
can be opened only with the inner acti-
vation units; the outer units are discon-
nected. The electric lock, if equipped, is
engaged.
The door is held open.
~-
en'"
...m
.•.m
'"
4 Position
Key/Knob
1Jd'"
N
46 - Adjustments And Troubleshooting 3-26-99
o Copyngtt 1999 Besam Automated Enl.nn::e System., Inc. May not be repnnled wdhout permission.
Swingmaster MP US2300186001
