52 - Adjustments And Troubleshooting
OCopyri~
1999 eeum Automaled Enlr811Ce5ysteme,
Inc.
May not be reprinled wilhoot petrTieaion.
3-26-99
Swingmaster MP
US23.o186.o1

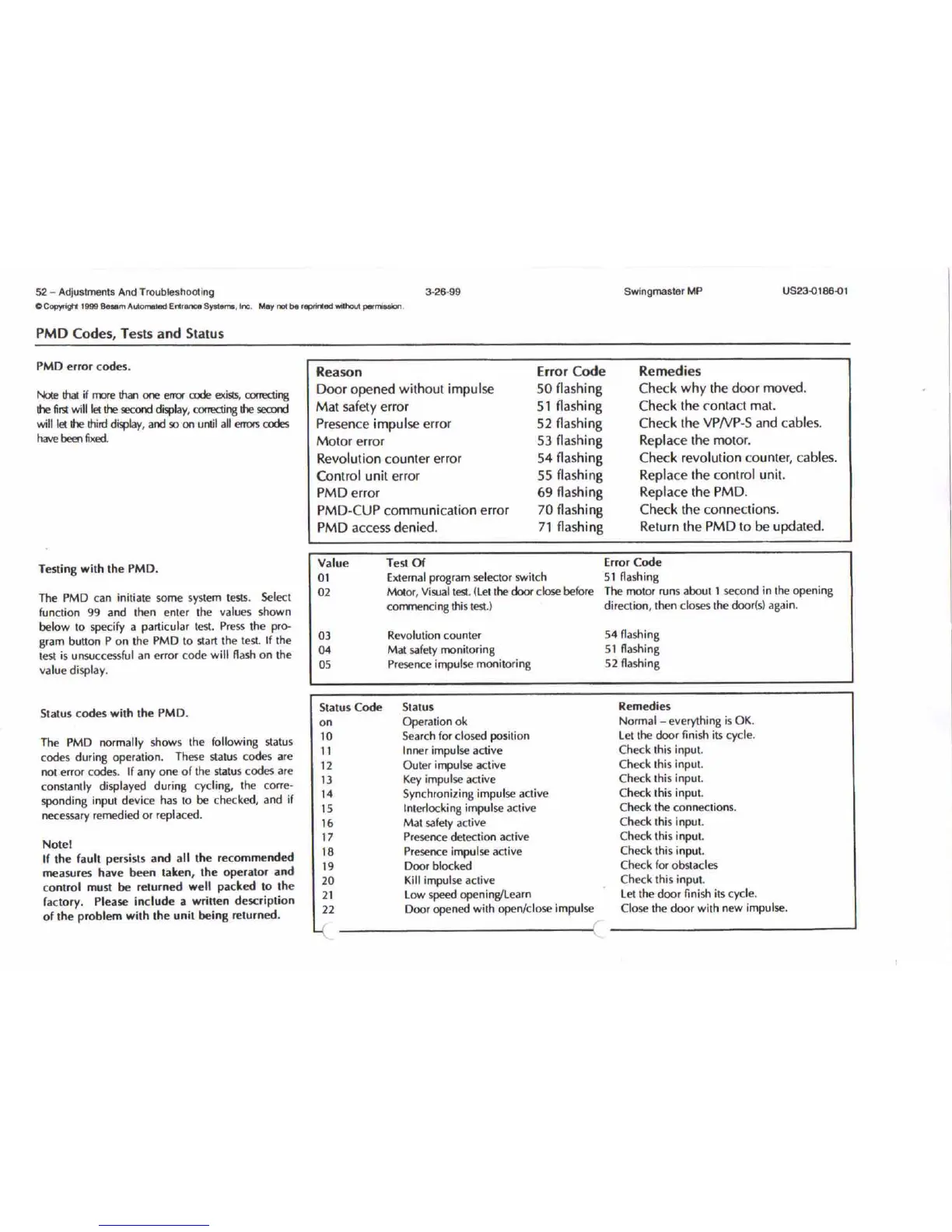

PMD Codes, Tests and Status
PMD error codes.
Note !hat if me than one error rode exisrs, rorrecting
!he fir.;!will let !he second display, rorrecting !he second
will let !he Ihird display, and so on until all errors codes
have been fixed.
Reason
Door opened without impulse
Mat safety error
Presence impulse error
Motor error
Revolution counter error
Control unit error
PMD error
PMD-CUP communication error
PMD accessdenied.
Error Code
50 flashing
51 flashing
52 flashing
53 flashing
54 flashing
55 flashing
69 flashing
70 flashing
71 flashing
Remedies
Check why the door moved.
Check the contact mat.
Check the VPNP-S and cables.
Replace the motor.
Check revolution counter, cables.
Replace the control unit.
Replace the PMD.
Check the connections.
Return the PMD to be updated.
Testing with the PMD.
The PMD can initiate some system tests. Select
function 99 and lhen enler the values shown
below to specify a particular test. Press the pro-
gram button P on the PMD to start the test. If the
lest is unsuccessful an error code will flash on the
value display.
Value
01
02
03
04
05
Test Of
External program selector switch
Molor, Visual test. (leI the door close before
commencing this test.)
Revolution counter
Mat safety monitoring
Presence impulse monitoring
Error Code
51 flashing
The motor nuns about 1 second in lhe opening
direction, then closes the door!s) again.
54 flashing
51 flashing
52 flashing
Remedies
Normal- everything is OK.
let the door finish its cycle.
Check this input.
Check this input.
Check this input.
Check lhis input.
Check the conneclions.
Check this input.
Check this input.
Check lhis input.
Check for obstacles
Check this input.
let the door finish its cycle.
Close the door with new impulse.
Status
Operation ok
Search for closed position
Inner impulse active
Outer impulse active
Key impulse active
Synchronizing impulse aclive
Interlocking impulse active
Mat safely aclive
Presence detection aclive
Presence impulse active
Door blocked
Kill impulse active
low speed opening/learn
Door opened with open/close impulse
--------(
Status Code
on
10
11
12
13
14
15
16
17
18
19
20
21
22
The PMD normally shows the following status
codes during operation. These status codes are
not error codes. If anyone of the status codes are
constantly displayed during cycling, the corre-
sponding inpul device has
10
be checked, and if
necessary remedied or replaced.
Notel
If the fault persists and all the recommended
measures have been taken, the operator and
control must be returned well packed to the
factory. Please include a written description
of the problem with the unit being returned.
Status codes with the PMD.
