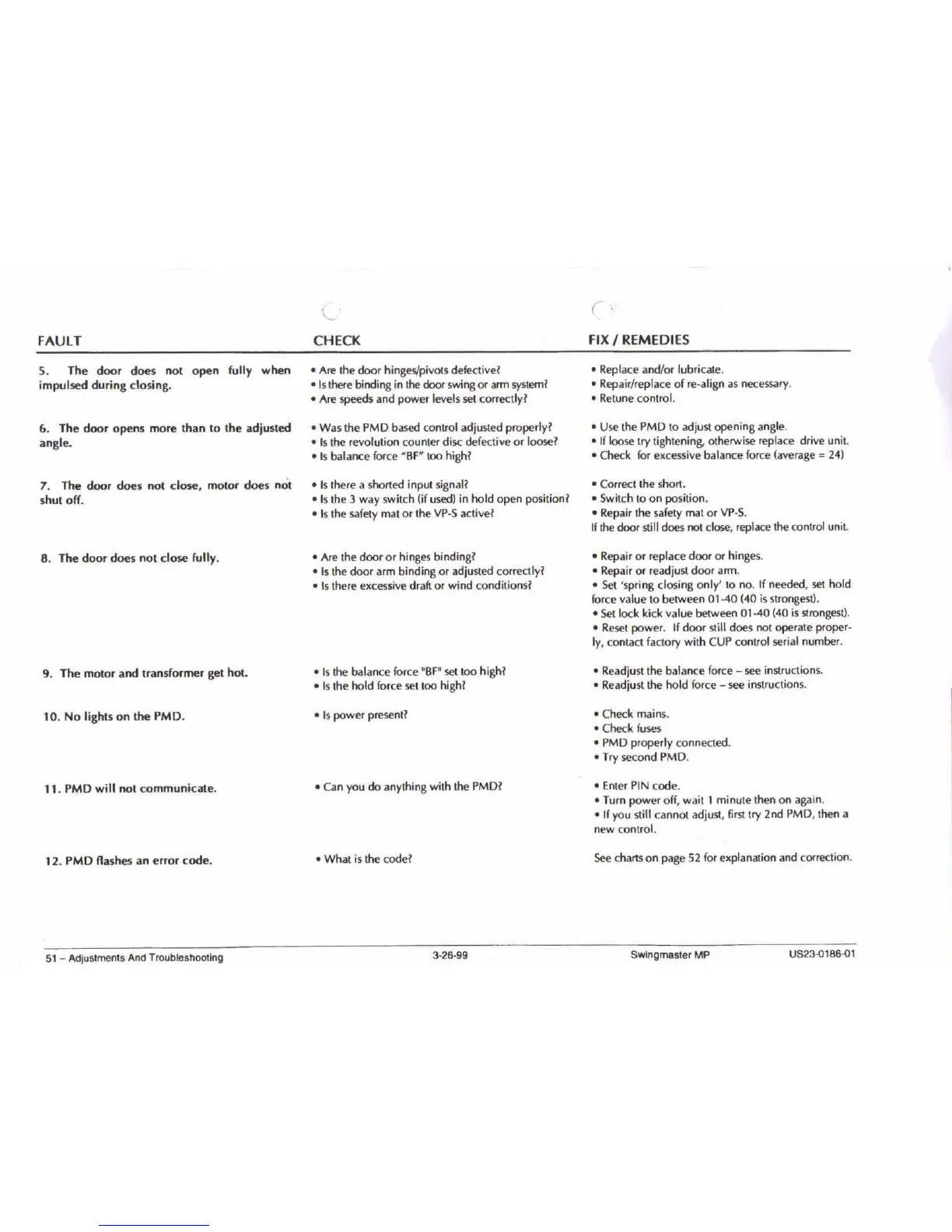

FAULT
5. The door does not open fully when
impulsed during closing.
6. The door opens more than to the adjusted
angle.
7. The door does not close, motor does not
shut off.
8. The door does not close fully.
9. The motor and transformer get hot.
10. No lights on the PMD.
11. PMD will not communicate.
12. PMD flashes an error code.
C'
CHECK
o Are the door hinges/pivots defectivel
ols there binding in the door swing or arm systeml
o Are speeds and power levels set correctly I
o Was the PMD based control adjusted properlyl
o Is the revolution counter disc defective or loosel
o Is balance force "BF" too highl
o Is there a shorted input signall
o Is the 3 way switch (ifused) in hold open positionl
o Is the safety mat or the VP-Sactivel
o Are the door or hinges bindingl
o Is the door arm binding or adjusted correctlyl
o Is there excessive draft or wind conditionsl
o Is the balance force 'BF' set too highl
o Is the hold force set too highl
o Is power presentl
o Can you do anything with the PMDI
o What is the codel
(,
FIX
I
REMEDIES
o Replace and/or lubricate.
o Repair/replace of re-align as necessary.
o Retune control.
o Use the PMD to adjust opening angle.
o If loose try tightening. otherwise replace drive unit.
o Check for excessive balance force (average
=
24)
o Correct the short.
o Switch to on position.
o Repair the safety mat or VP-S.
Ifthe door stilldoes not close, replace the control unit.
o Repair or replace door or hinges.
o Repair or readjust door arm.
o Set 'spring closing only' to no. If needed, set hold
force value to between 01-40 (40 is strongest).
o Set lock kick value between 01-40 (40 is strongest).
o Reset power. If door still does not operate proper.
Iy, contact factory with CUP control serial number.
o Readjust the balance force - see instructions.
o Readjust the hold force - see instructions.
o Check mains.
o Check fuses
o PMD properly connected.
o Try second PMD.
o Enter PIN code.
o Turn power off, wait 1 minute then on again.
o Ifyou still cannot adjust, first try 2nd PMD, then a
new control.
See charts on page 52 for explanation and correction.
51 - AdjustmentsAndTroubleshooting
3-26-99
Swingmaster MP
US23.Q186.Ql
