Trektop™ – Installation Instructions
Rev. C 0209 56801 / 56802 pg. 5
Plastic Strip
Windshield
Driver's Side of vehicle

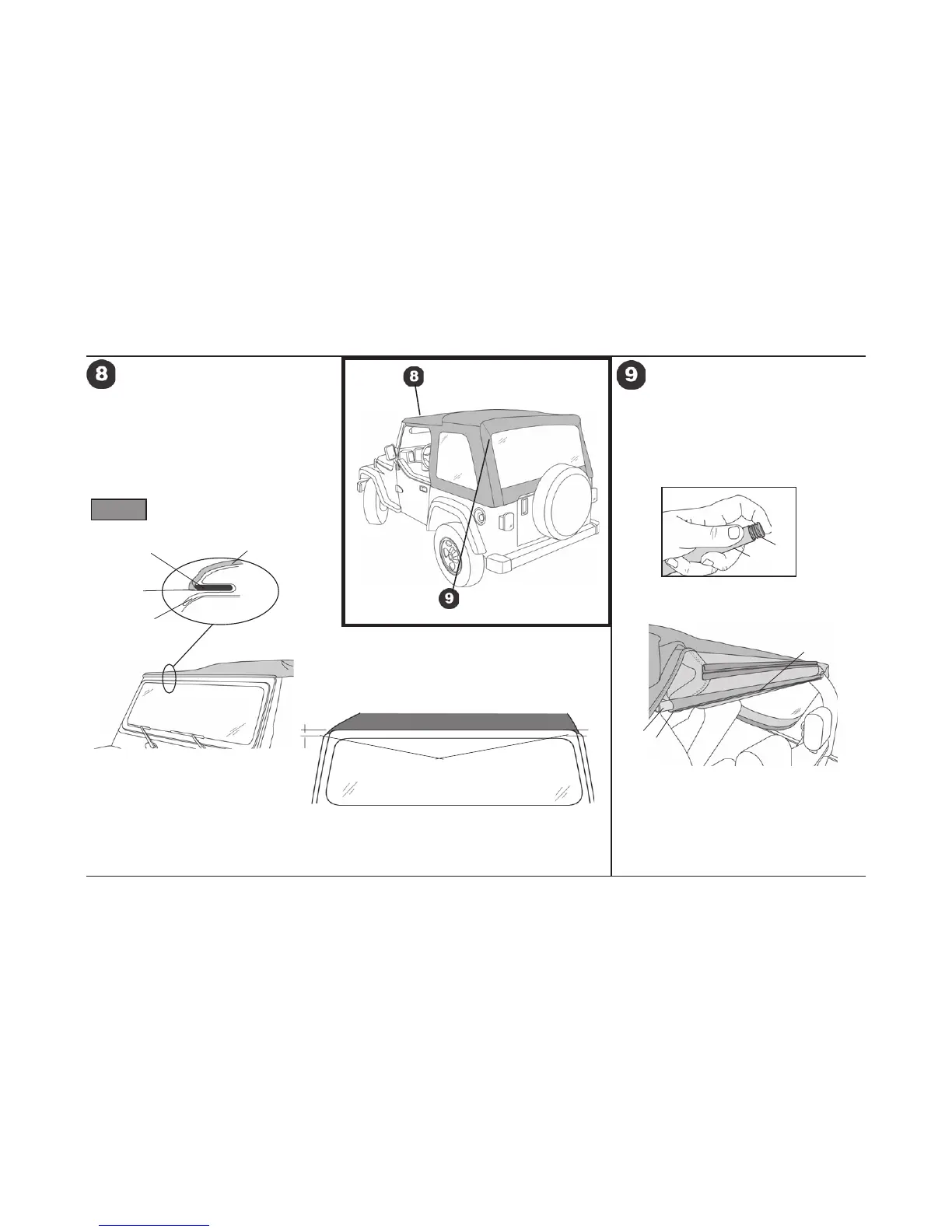

Locate the top and orient it on the vehicle. Drape
the top over the bows and insert the plastic strip
sewn along the front of the top into the windshield
retainer. Do not catch the fabric in the retainer.
Center the front of the deck on the vehicle so that it
is an equal distance from the top of the windshield
fl ange on both sides.
View from front
Make sure space between top
fabric and windshield fl ange is
equal on both sides
For best possible installation, check to
make sure that the soft top is perfectly
centered on the vehicle.
Windshield
Retainer
Fabric
Make sure
that only
Plastic Strip
is in retainer
Install Top in Windshield
Retainer
NOTE
Install Bow
Push an End Cap into each end of the Bow.
Center the Bow in the bow fl aps. Wrap the fl aps
around the bow tube and fasten the hook and loop
strips to each other.
Bow
Bow
Flap
Fasten Hook
and Loop to
each other
End
Cap
Bow
To Next Page
