Automatic Uniform Sidedrive Carton Sealer (AS)
14
Installation/Setup
SETUP PROCEDURE
It is important that the AS series be set up and operated with the product prior to being subjected to the
production environment where time for setup adjustment, and operator training is usually limited.
CAUTION: Make sure machine power is turned o.
Be careful with the driving direction of the conveyor.

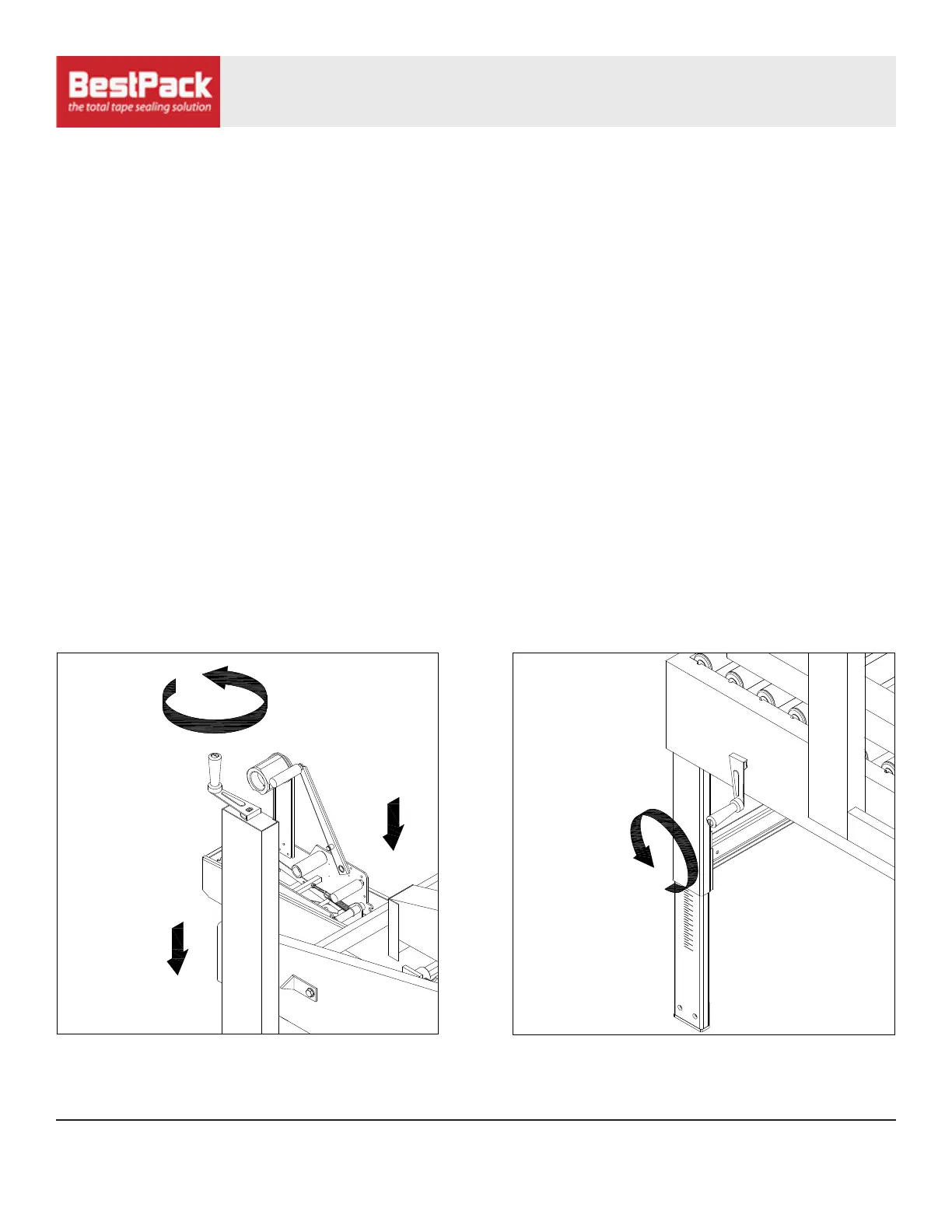

HEIGHT ADJUSTMENT: Once both tape heads are loaded with tape, the upper tape head can be
positioned for the box height being sealed by means of the height adjustment crank. Turn handle clockwise to
decrease height or counter-clockwise to increase height. [Fig. 2-1]
BOX SIZE SETUP: Place a closed box under the top drive frame. Lower the frame until all aps are fuly
closed. Align box top ap center seam with center of the frame. [Fig. 2-1]
WIDTH ADJUSTMENT CRANK: Turn the handle clockwise for narrow and smaller packages; turn
the handle counter-clockwise for wider and larger packages. [Fig. 2-2]
[Fig. 2-1]
[Fig. 2-2]
