BESV CF1 - Disassembling Components: Power Button and Bottom Cover; Power Button Disconnection; Bottom Cover and Cable Disconnections

Technical Manual - BESV CF1

13

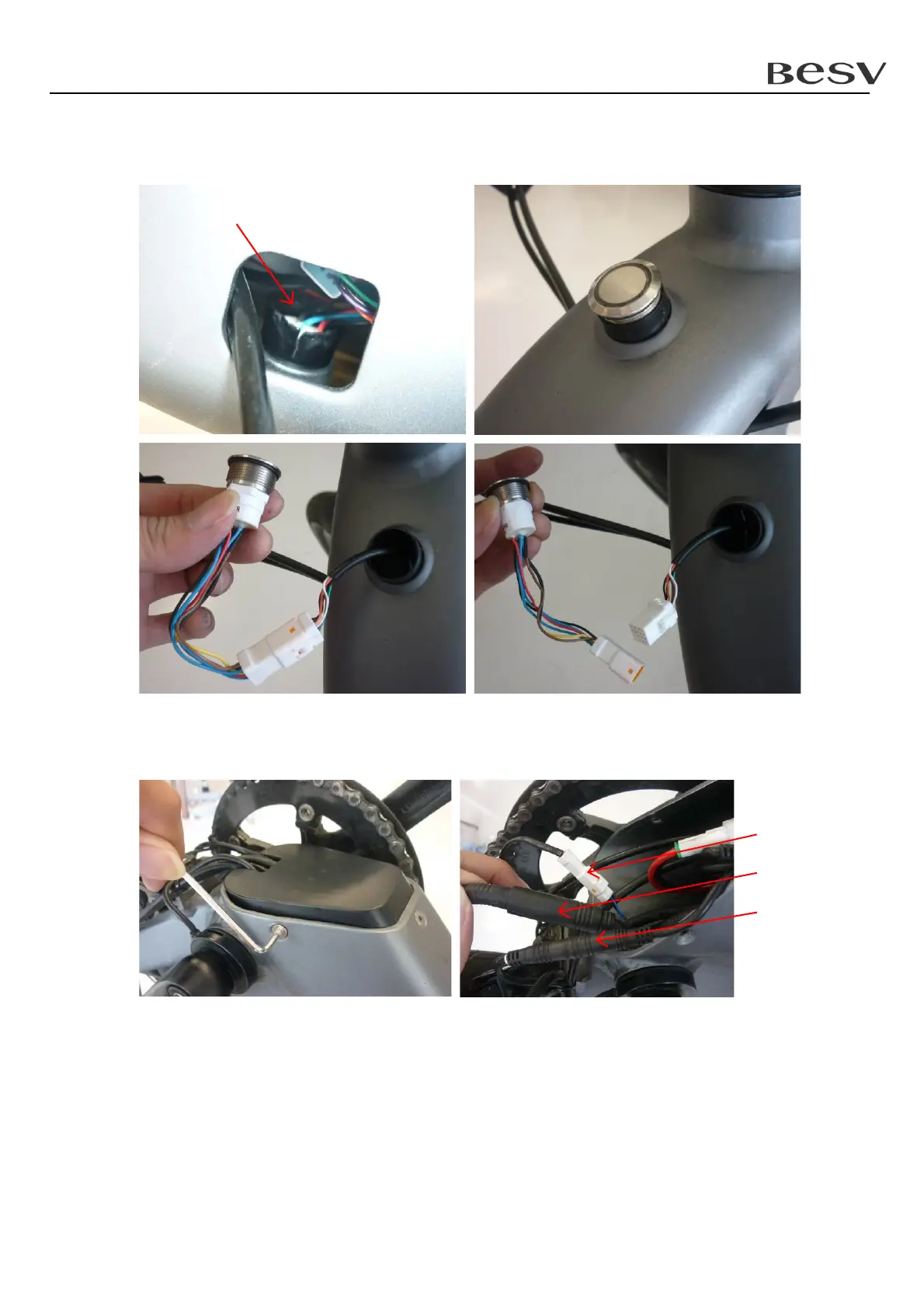

4. Remove both side wire cover, push the power button holder up by finger. Then pull
the button connector and disconnect it.
5. Loosen the bottom cover screw, and remove the bottom cover. And then disconnect
motor, pedaling sensor and rear light cables.
Button holder
Rear light cable
Motor cable
Pedaling sensor
cable
