Technical Manual - BESV CF1
12
3. Disassembling Components
3.1 EMS (Electrical Manager System)

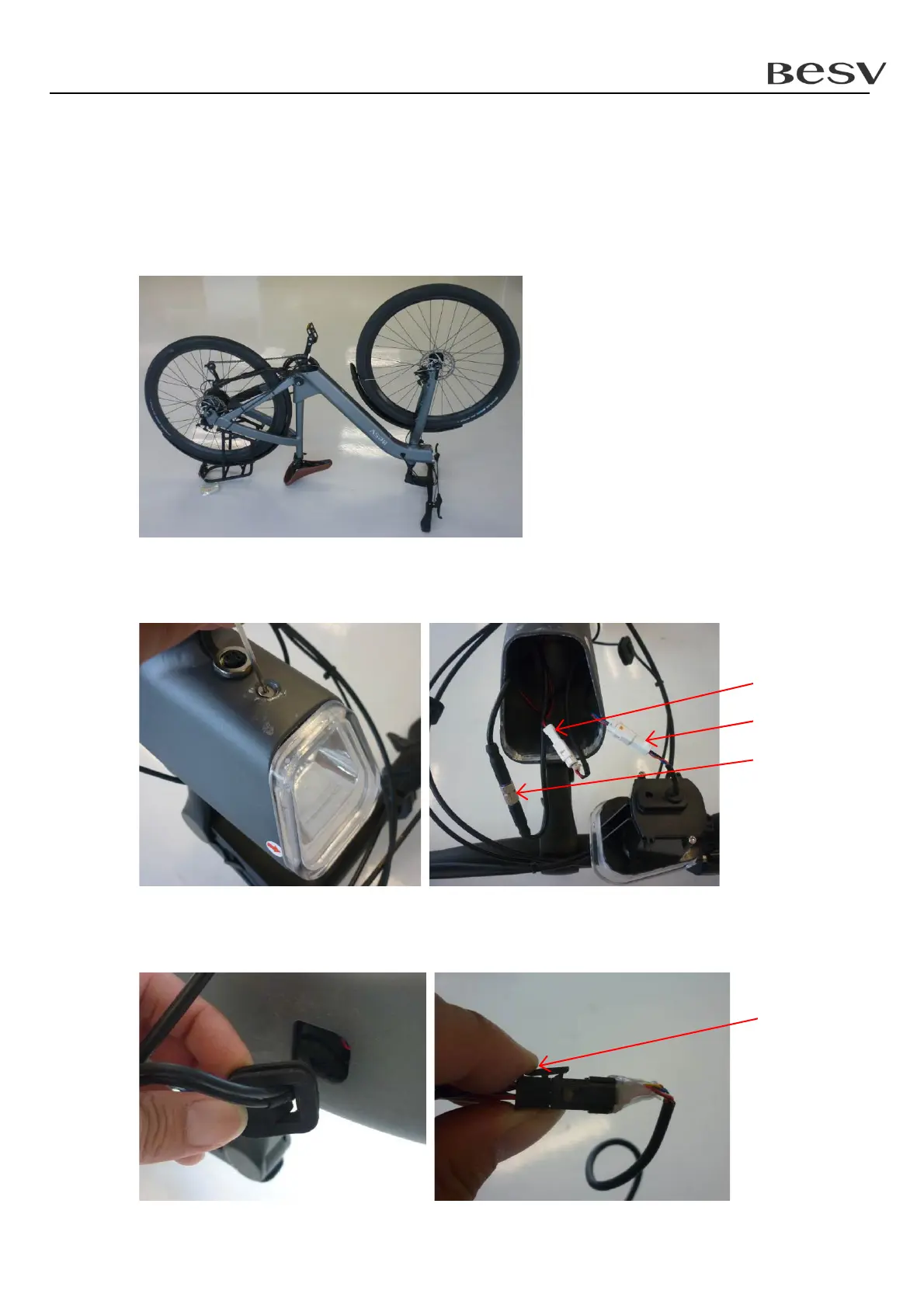

1. Turn off the power and place the bike upside down.
2. Loosen the front light screw, take off the front light and then disconnect front light,
charger and main cables.
3. Remove the right side wire cover carefully, pull out the switch connector and
disconnect it.
Charger cable
Front light cable
Main cable
Press to unlock
To Next Page
