BESV CF1 - Disassembling Components: Pedaling Sensor; Pedaling Sensor Cable and Crank Removal

Technical Manual - BESV CF1

15

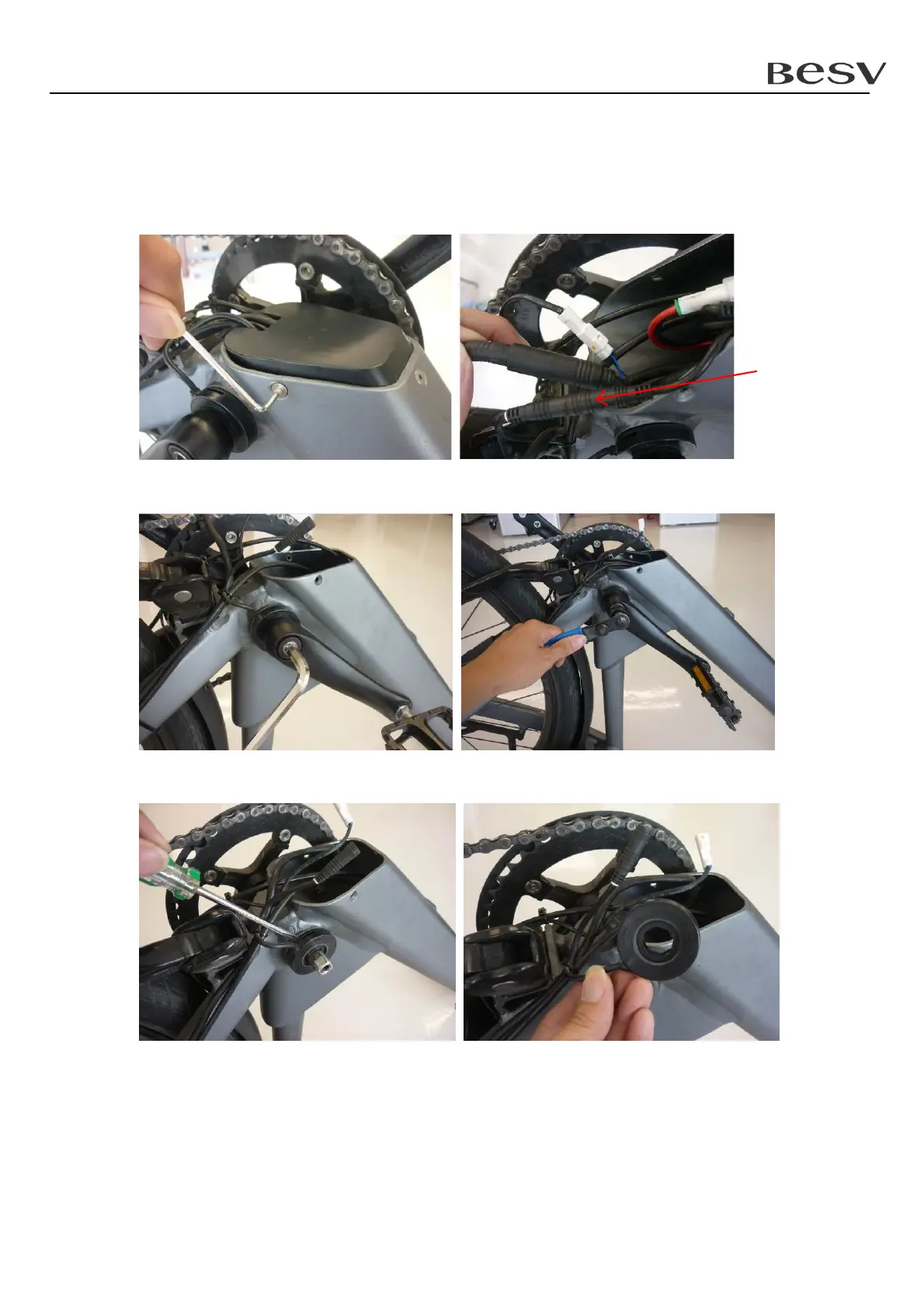

3.2 Pedaling Sensor
1. Place the bike upside down, remove the bottom cover, and then disconnect pedaling
sensor cable.
2. Loosen the left crank screw and then remove left crank.
3. Take apart the pedaling sensor with screw driver.

Pedaling sensor
cable
