Beta Marine BD722 - Page 41

39
01
BETA MARINE LTD,
MERRETTS MILLS,
BATH ROAD,
SOUTH WOODCHESTER,
STROUD, GLOS. GL5 5EU
DO NOT SCALE
DIMENSIONS IN MM (INCH)
BETA MARINE
TEL: (01453) 835282 FAX: (01453) 835284
REV DESCRIPTION
NOTES
APP'DDATE DRAWN
DRAWN BY:- CHECKED BY:-
SCALE PAGE
SIZE
TITLE
DWG NO.
DATE
REV
NTS
A4
2 of 2
200-06304
15/11/2004

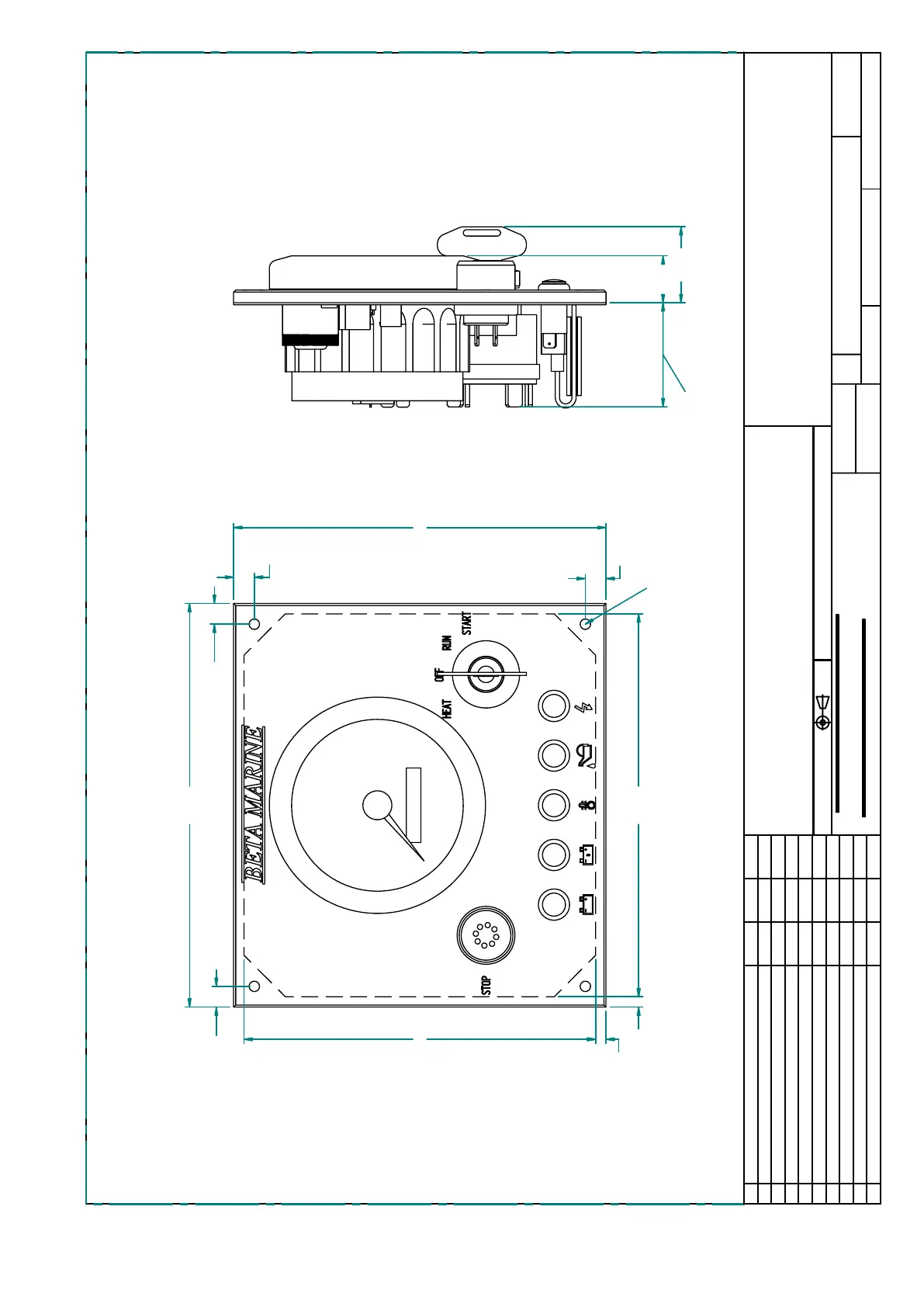

2AB PANEL
TW
LT
MATL:
01
10.00
10.00
195.00
10.00
10.00
180.00
50.32 ADD 30mm FOR WIRES
22.62
36.68
5.00 185.00
5.00
170.00
O 5.00 THRU
