Beta Technology DR-2000 - Page 10

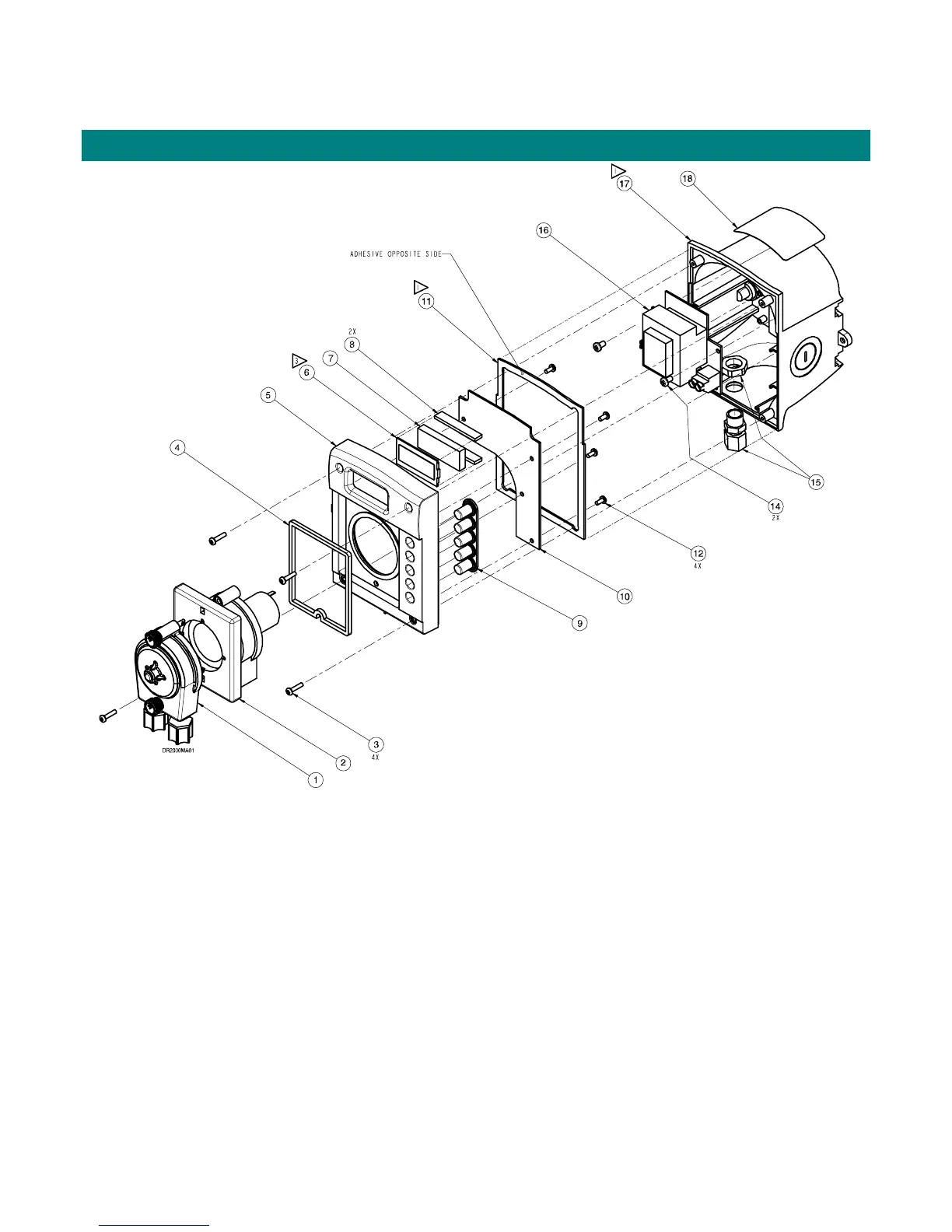

APPENDIX/DRAWING LIBRARY
Seq# Description Code #
1 SnapHead Pump Cartridge 058210
w/Silicone Tube
2 Pump Motor Gearbox 057755
6 VDC
3 M3 x 12 mm Panhead N/A
Bezel Screws
4 Pump Gasket 099705
5 Main Bezel N/A
6 LCD N/A
7 Foam Spacer N/A
Seq# Description Code #
8 Zebra Strips N/A
9 Buttons N/A
10 Main PCB 1202397
11 Bezel Gasket 1202615
12 Main PCB Screws N/A
16 Power PCB 115 VAC 1202396
16 Power PCB 230 VAC 1202678
17 Bucket N/A
14 Power PCB Screws N/A
15 Strain Relief N/A
10 1210730 DR-2000 (R14735-00, Rev C) February 2010
