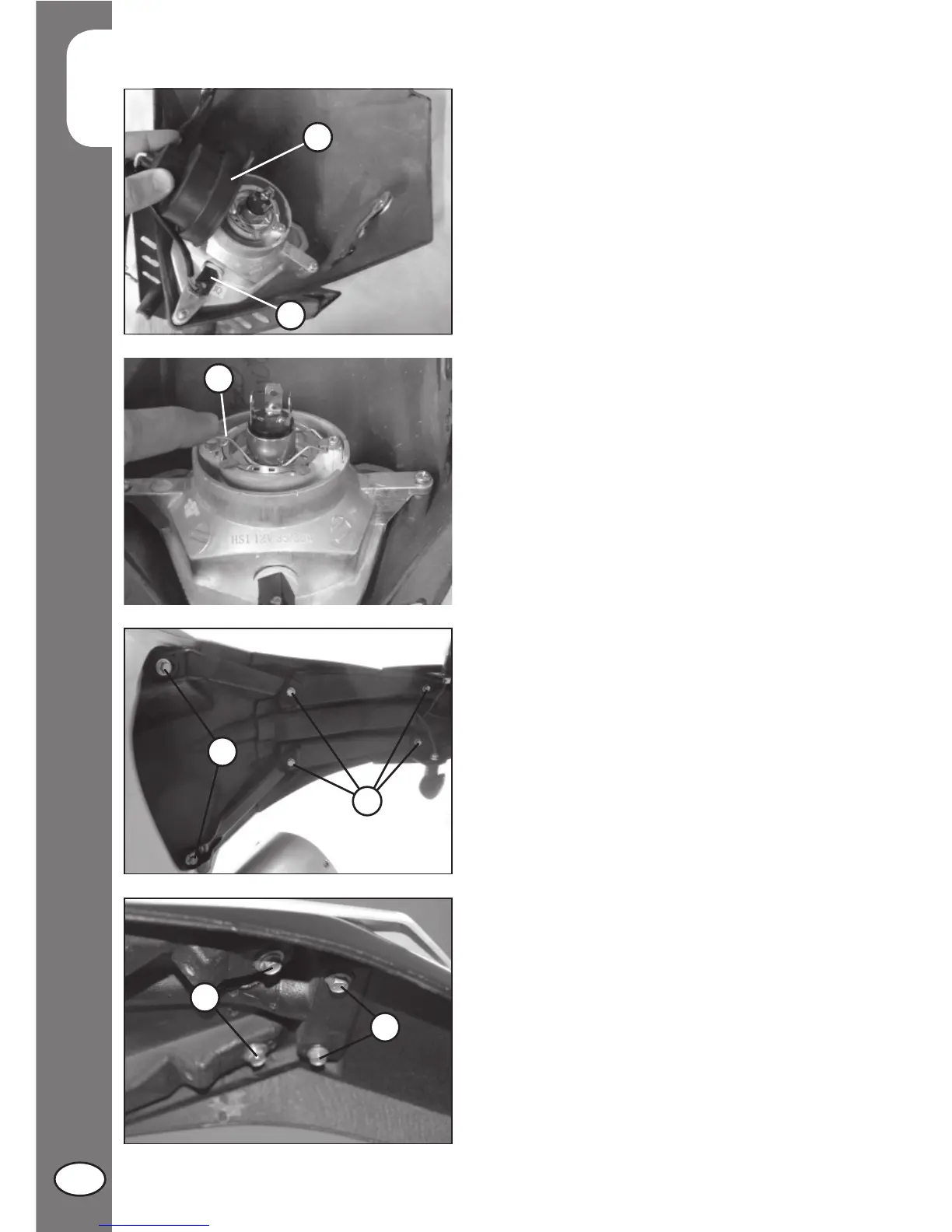

REPLACING THE HEADLIGHT BULBS
Release both spring washers and move
forward the lamp holder front cowl.
Carefully remove the headlight bulb 1
together with lamp holder. To replace the
high beam / low beam, lift the rubber
cover 2, release connector, push on the
spring 3 and remove the lamp holder and
replace the light bulb with a new one. Be
careful not to touch the bulb so as not to
compromise its effi ciency.
To refi t, follow the procedure above but in
reverse order.
Fasten the lamp holder front cowl to the
supporting pins and fi x it with the two
elastics.
1
2
3
REPLACING THE REAR OPTIC BATCH
The rear optical batch led type.
To replacing the rear optical batch, remove
the rear fender proceed as follows.
Remove the saddle and unscrew the four
screws A and disconnect the electrical
connector.
Unscrew the two screws B, the two screws
C and D. The D screws connect the optic
batch to the racing number plate holder.
A
B
C
D
